Steam - Shay
Steam - Shay

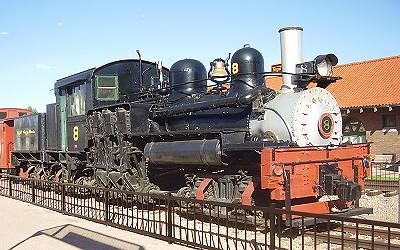

3-Truck Shay
Shay #8 on display at, Cañon City, CO, 5/07/09.
Shay's were 1 of 3 geared locomotive designs [Climax and Heisler are the other 2]; and were built by a number of manufacturers. Shays have a left offset boiler and a 3 vertical cylinder engine on the right side. A driveshaft drives either 2 or 3 (shown) trucks.
This locomotive last ran on the Georgetown Loop (GBL).

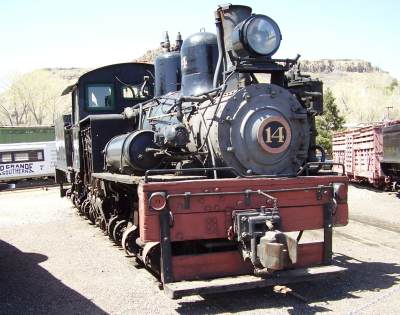

3-Truck Shay
Shay #14 on display at the Colorado Railroad Museum, Golden, CO, 4/17/06.  This photo highlights the offset boiler.

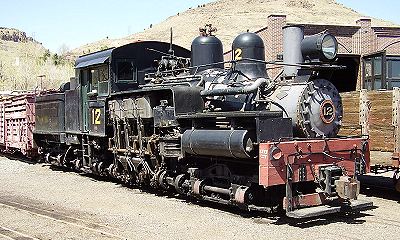

3-Truck Shay
Shay #12  at the Colorado Railroad Museum, Golden, CO, 4/17/06.  This locomotive is considered operational and last ran on the Georgetown Loop (GBL).

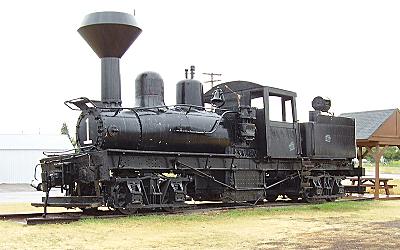

Lima 2-Truck Shay
Shay #1 on display at Columbia Falls, MT, 8/19/08. This locomotive was built in 1904 and retired in 1964. This is a 2-truck Shay and the photo shows the non-mechanical side with ash pit below the frame.

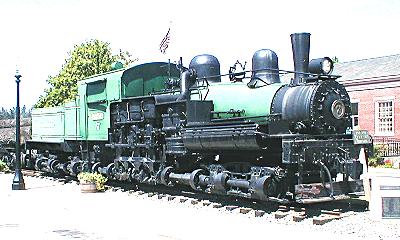

Lima 3-Truck Shay
Simpson Timber Shay #7 on display at Sheldon, WA, 8/12/01. Geared locomotives were popular in logging operations; they had good pulling capability, could handle sharp curves, and tolerated poor quality trackwork. 2700+ Shay locomotives were built; the last one in 1945.

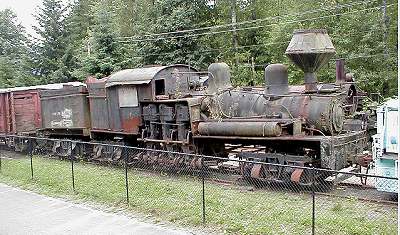

Lima 3-Truck Shay
S.A. Agnew Lumber Company #1 on display at NW Railway Museum, Snoqualmie, WA, 7/19/02. This locomotive was built in 1904 and retired in 1951.

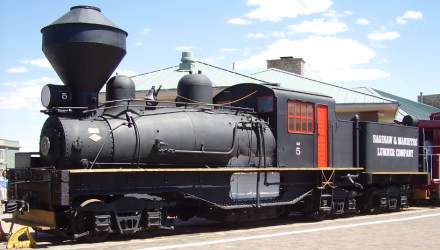

Lima 3-Truck Shay
Saginaw & Manistee Lumber Company Shay #5 on display at Williams, AZ, 5/11/07.  No. 5 was built in 1923 for Anaconda Copper in Montana.

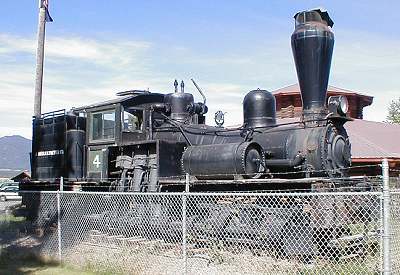

Lima 2-Truck Shay
J Neils Lumber Shay #4 on display at Libby MT, 8/29/01. No. 4 was built in 1906 and work to restore it to operation began in 2014.
