Time to see the progress on the drawbridge replacement in Oshkosh, Wisconsin.
July 27, 2013

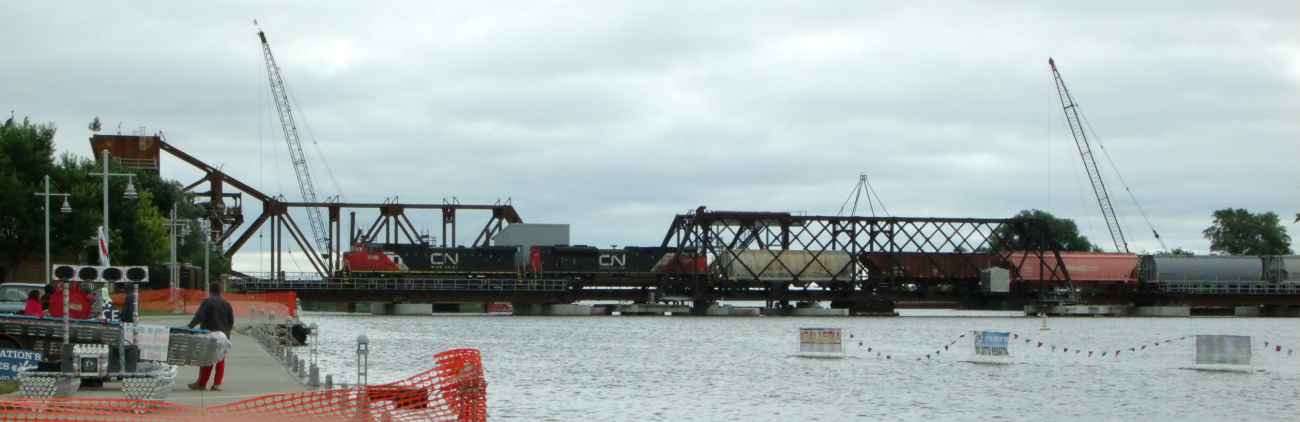

A northbound train came over the Fox River.
Half of the park is tied up with a boating regatta festival.

Notice how much larger the new span is than the old swing span.

.

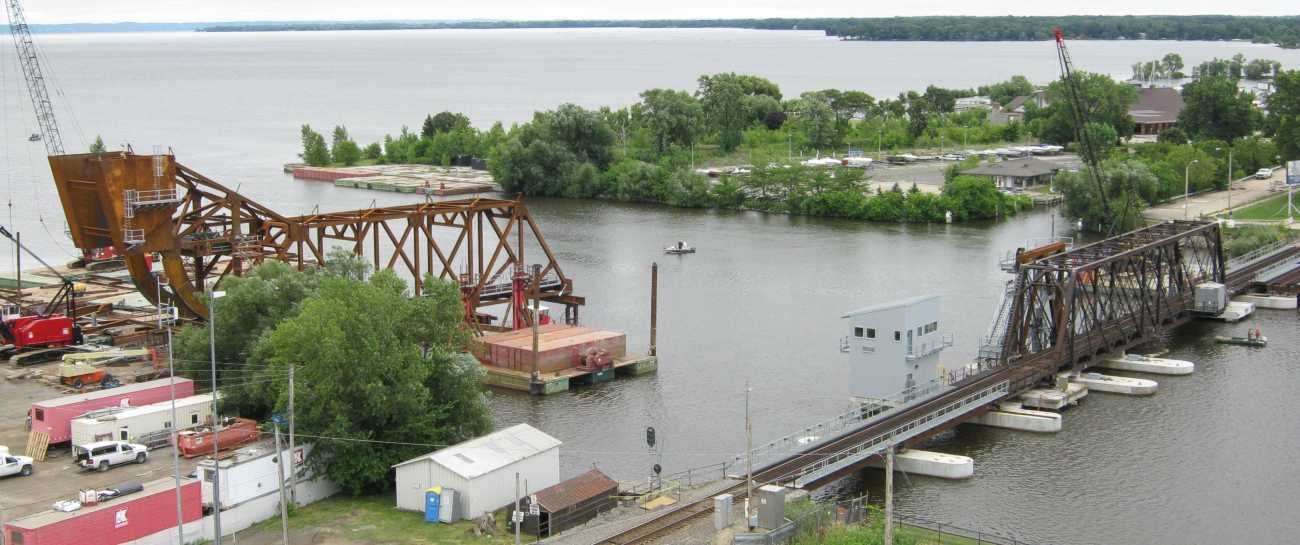

the area looks like this from the kite camera

.

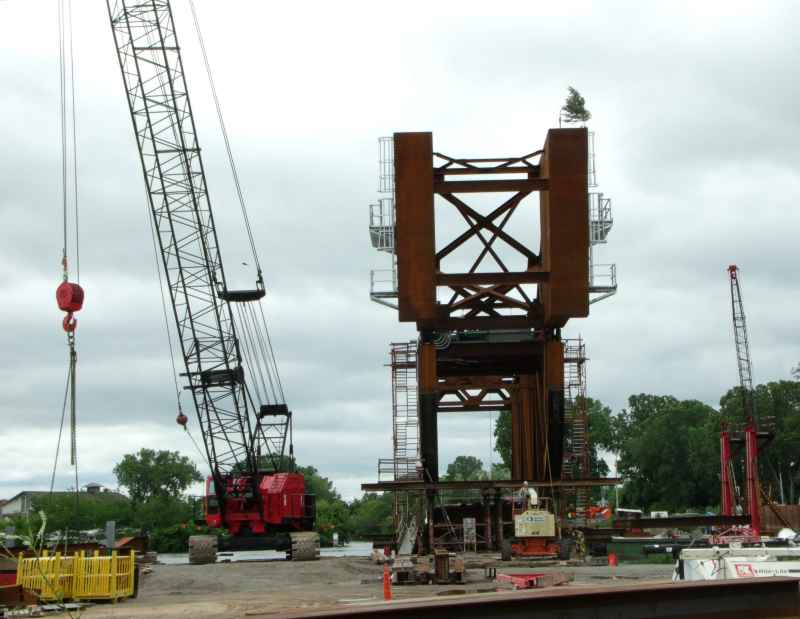

Tall bridge

.

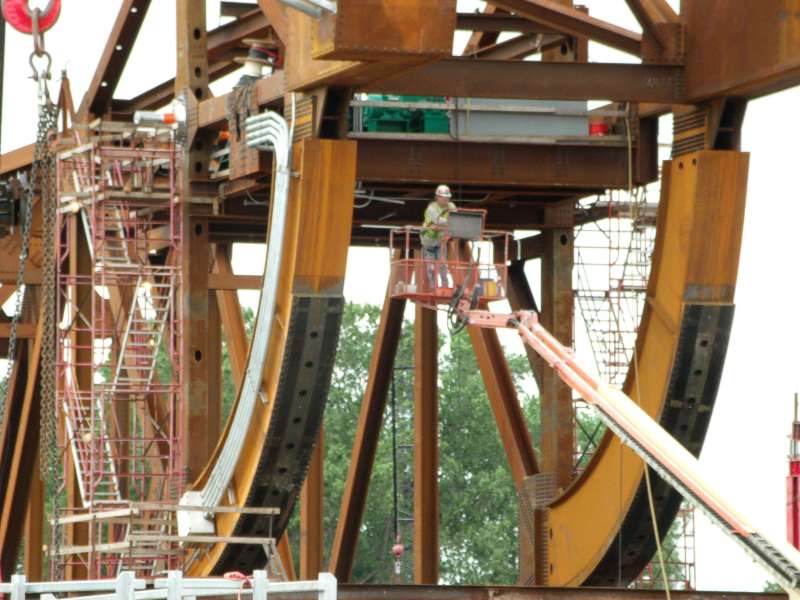

It is a Bascule rolling lift bridge. Look at those rows of black gear teeth on the curves.

.

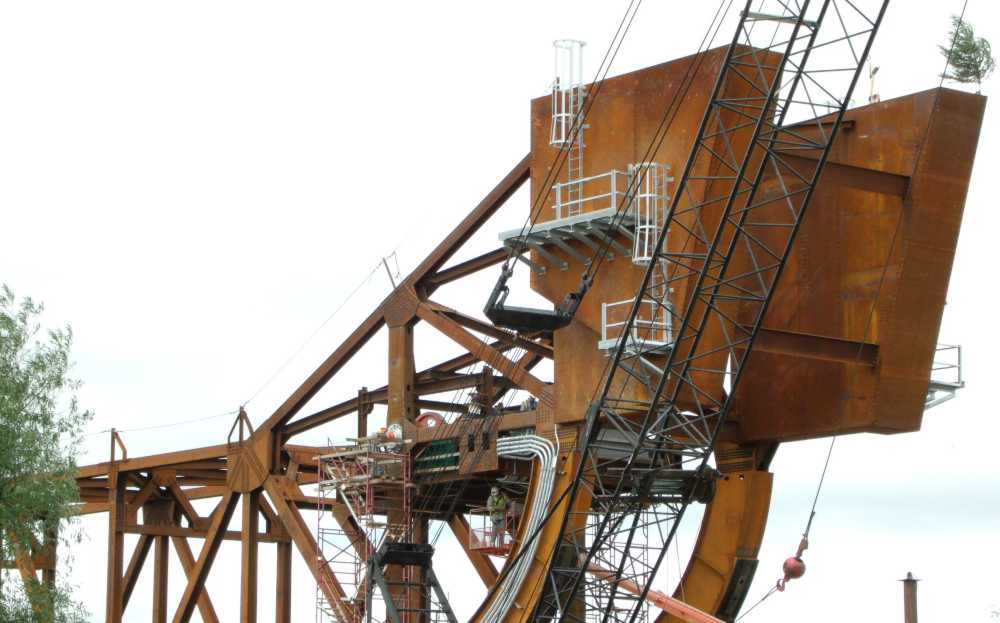

Big counter weight boxes. . . . . . . . Will they fill them with sand?

My guess is the two beams between the boxes will be removed afterwards,
and the counterweights will be able to pass over the approach span,
so the main span might roll up to maybe ? 80 ? degrees to allow a wide channel for the sailboats.

.

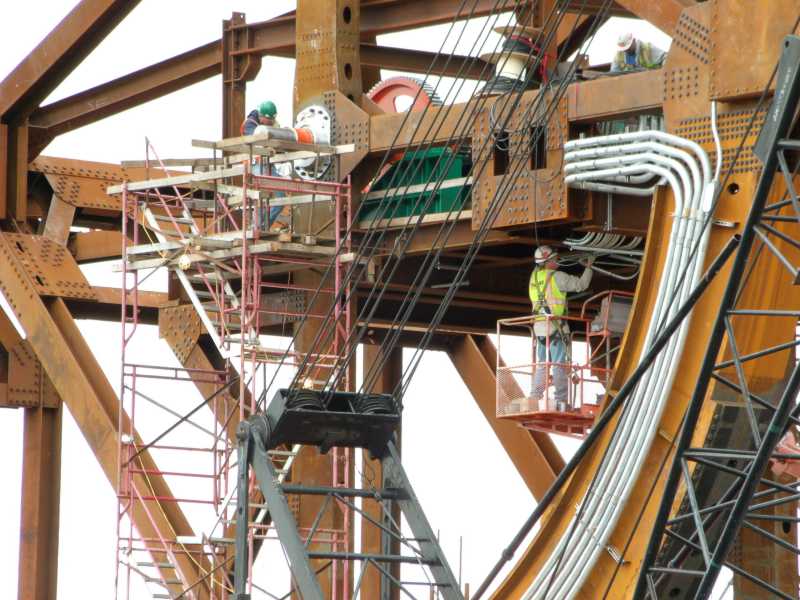

The workers look small in comparison to all that steel. They are busy even on a Saturday.
Notice the red gear. And the pinion to raise the span might be put on the end of the shaft?

.

.

.

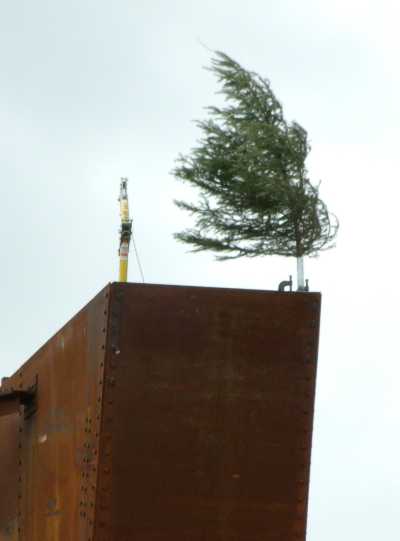

There's a pine tree on the top.

My question about the tree was answered by Kim Kafura.

That's Topping Out, from a ceremony held when the last beam is placed at the top of a building.

See Widipedia for more interesting information about that.


.

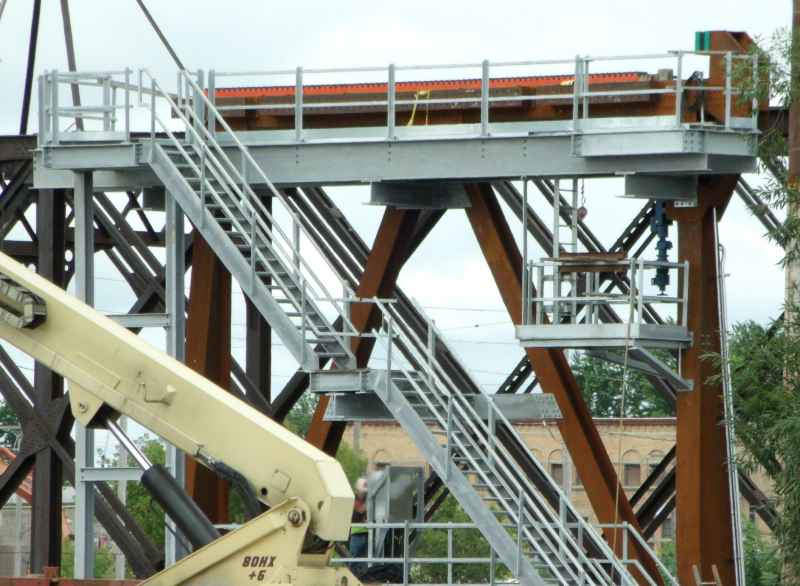

By the old bridge, there's a set of new stairs and some new brown steel.
There's a horizontal orange rack of gear teeth just beyond the top handrail.
. . . . . . . And maybe a green plastic bumper stop on the upper right?

.

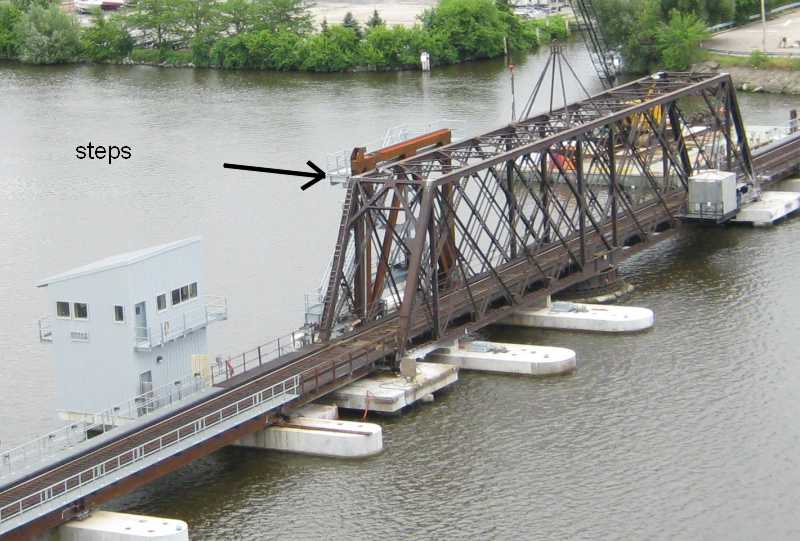

I point out the stairs and frame in this picture.
I suppose the existing swing span only turns counter-clockwise to open now.
And maybe the day the center span is removed, another new steel framework will go up on this side?

.

. . . . . . . I don't know when they will float out the old span and put in the new.
