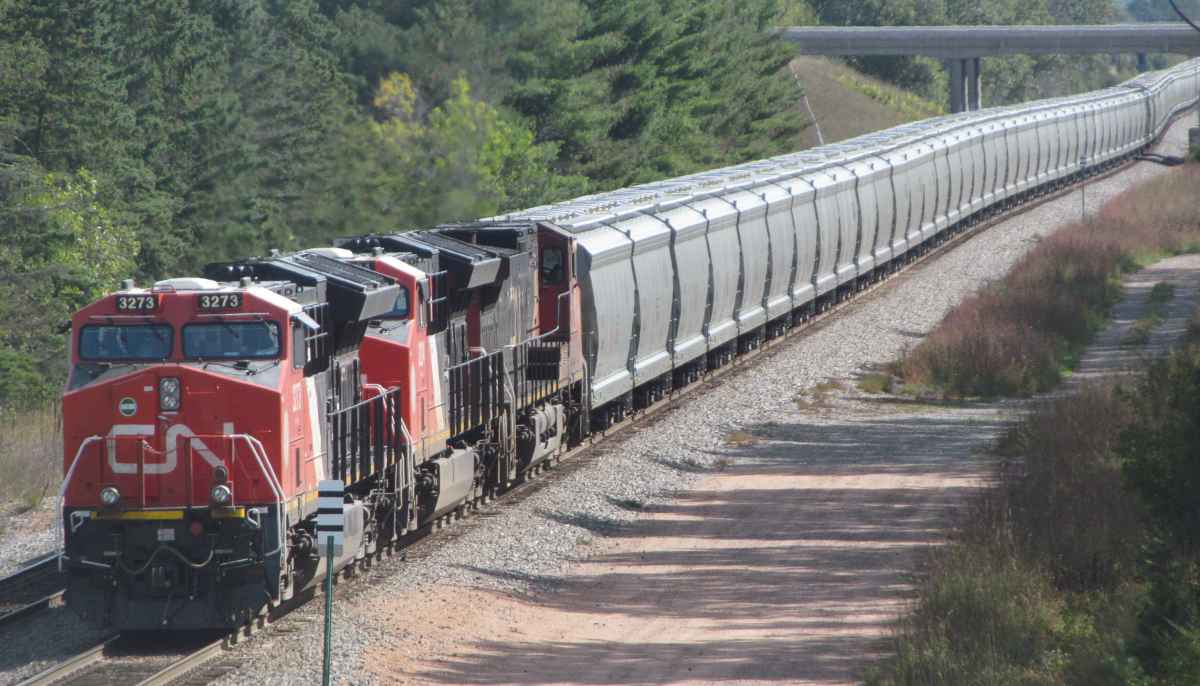

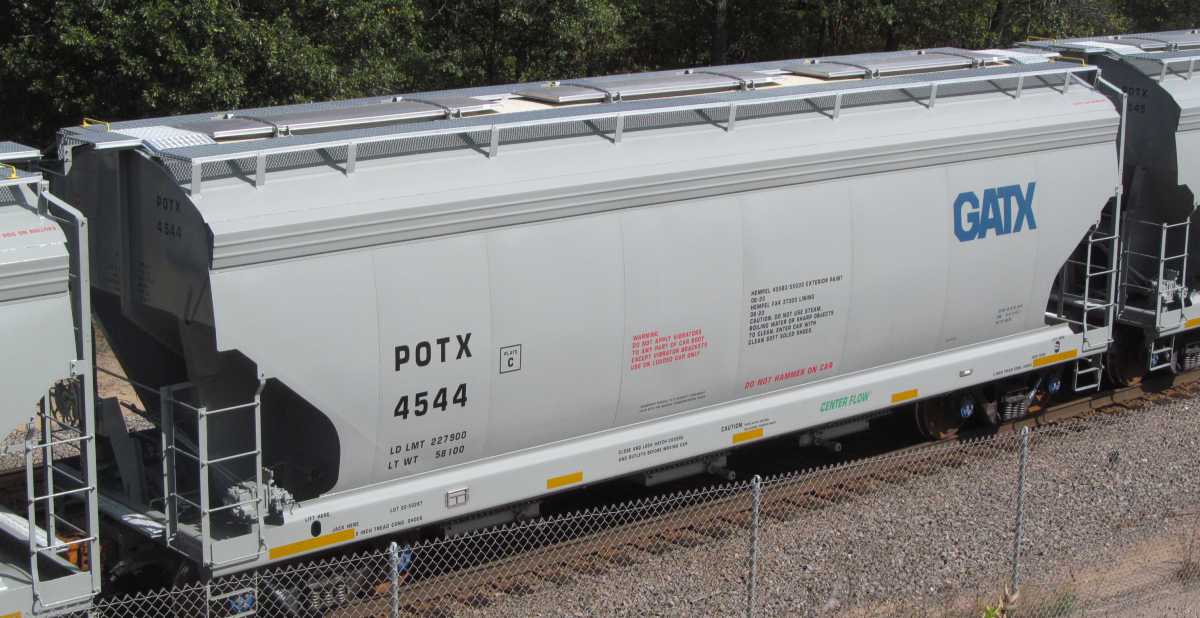

New 3-bay hoppers traveled west through Stevens Point, Wisconsin, on September 18, 2020. About 80, all in one train. (actually 100, counted by Ray R when the train went through Neenah) |
.
2
.
| 3 |
.
| 4 |
.
| 6 |

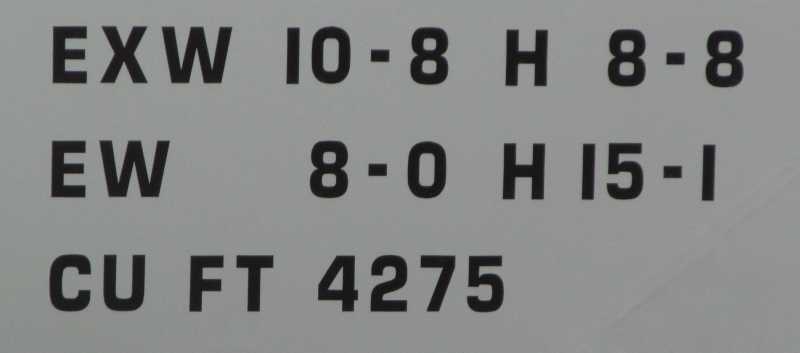

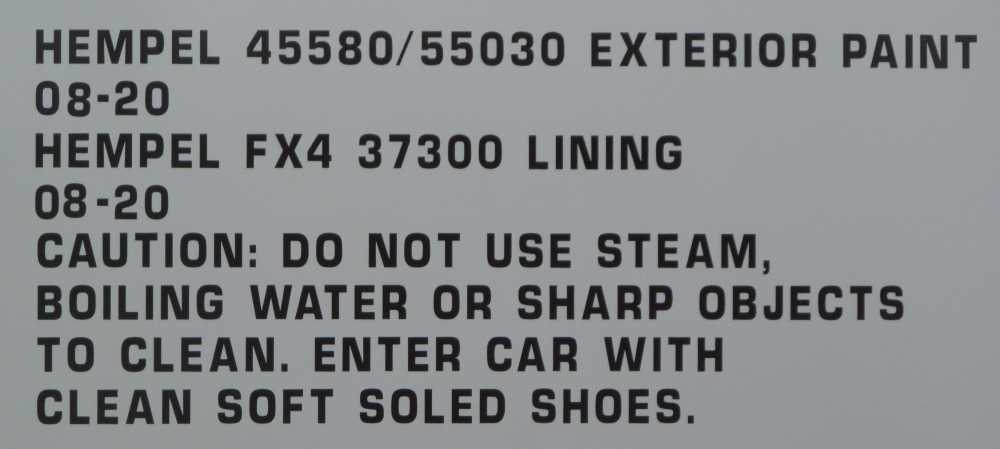

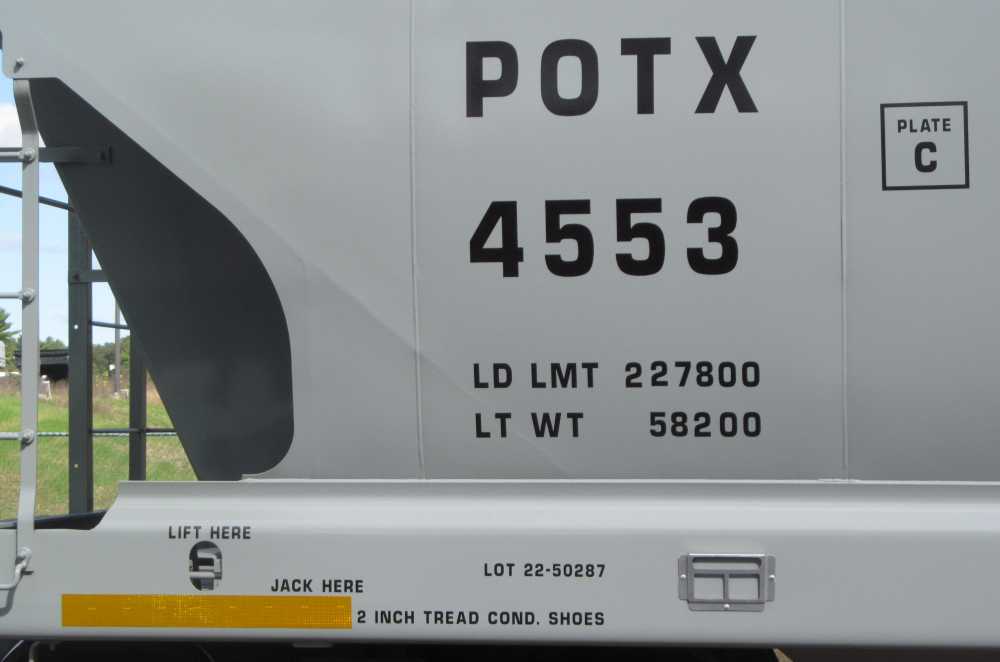

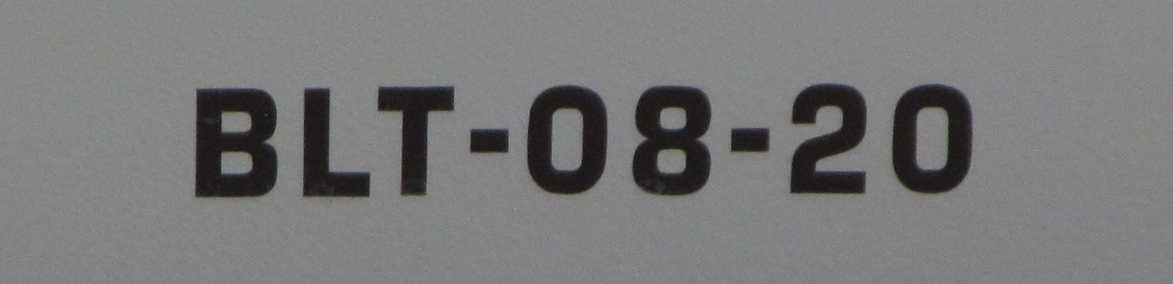

| There's a lot of data stenciled on it, but I didn't see any info on car length. |
.

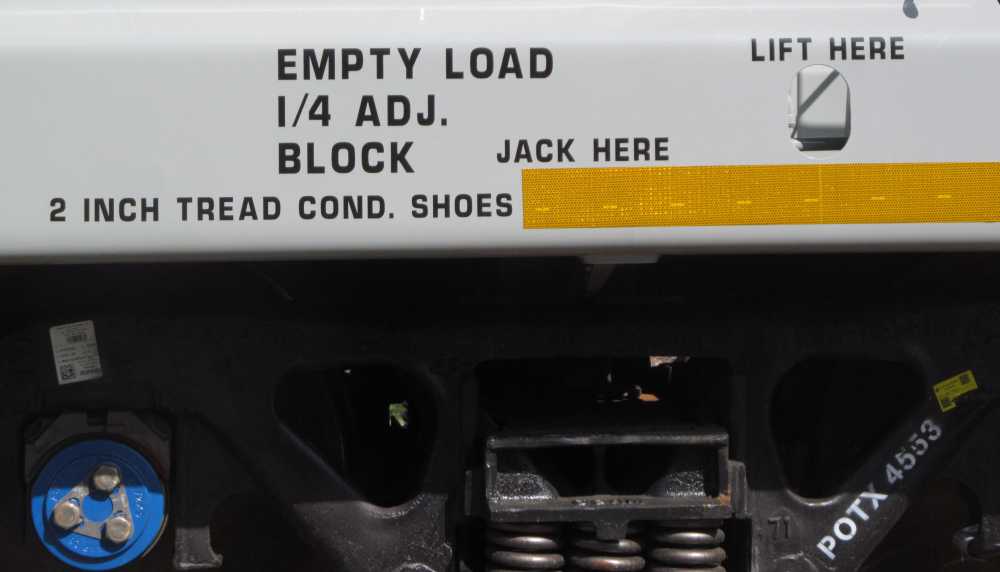

| The car number is also stenciled on the truck frame. |
.
|

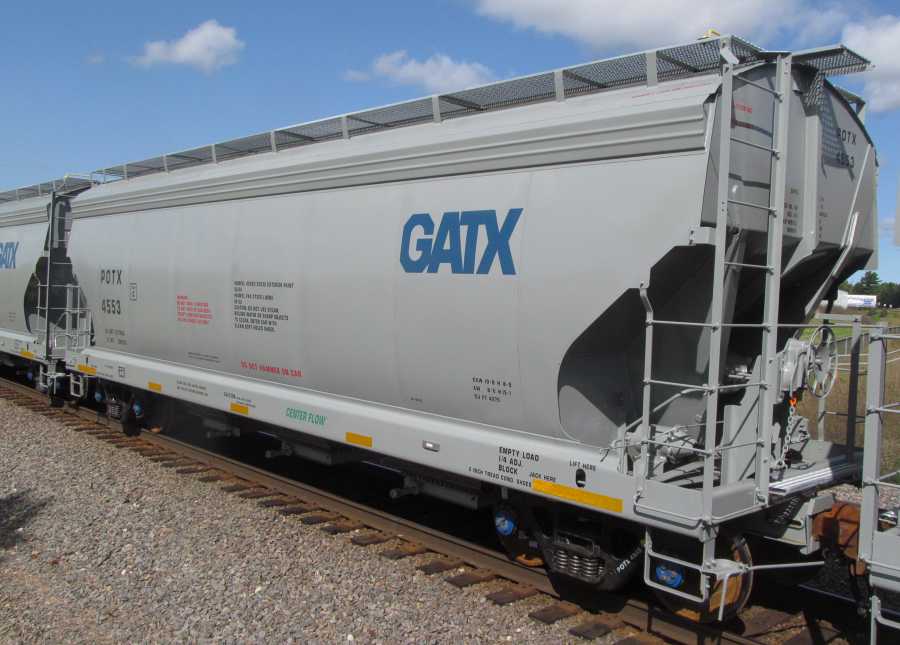

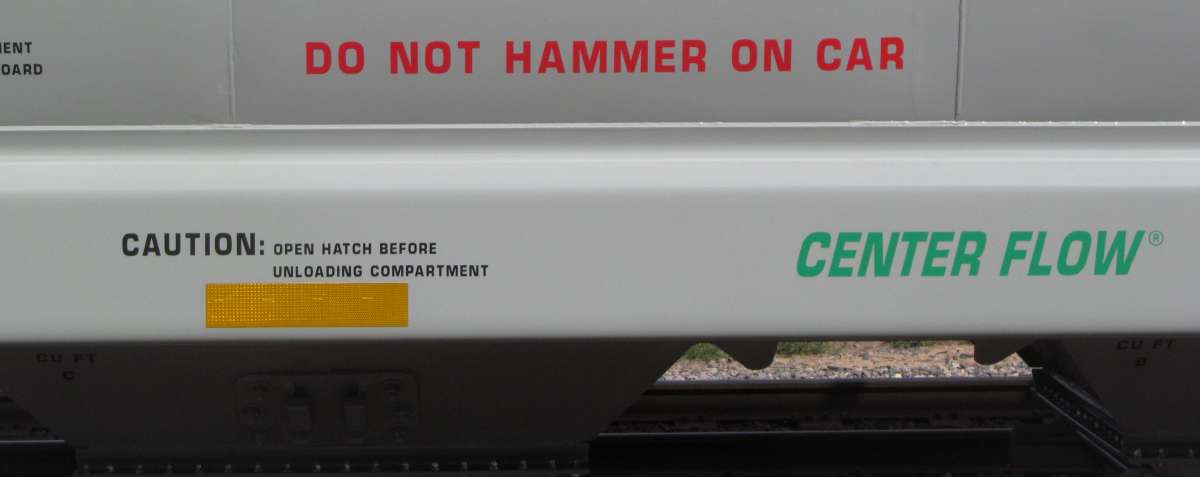

Center Flow (trademark) (and I think that is made by American Car and Foundry, ACF) A Center Flow has an open space in the middle of the car, the coupler is attached to a sort stub sill beam that doesn't travel through the car and the product loading area; the pull is distributed to the 2 welded side beams. |
.

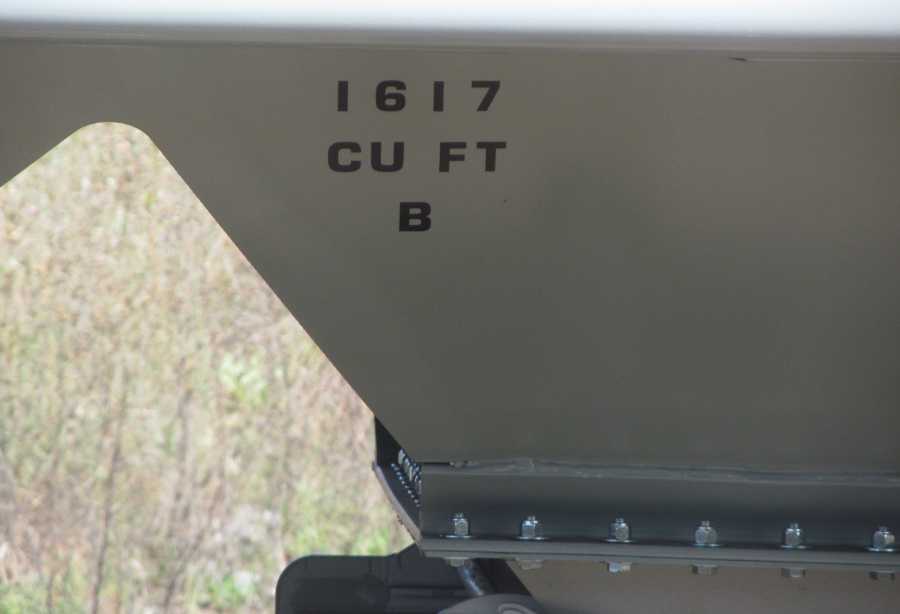

| There's 3 hoppers, A, B, C. The middle holds the most. |
.

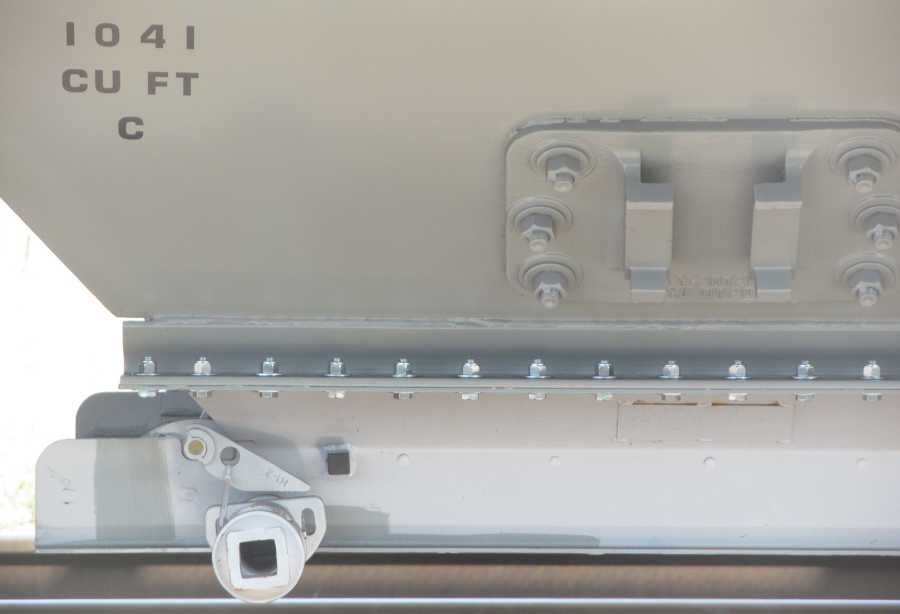

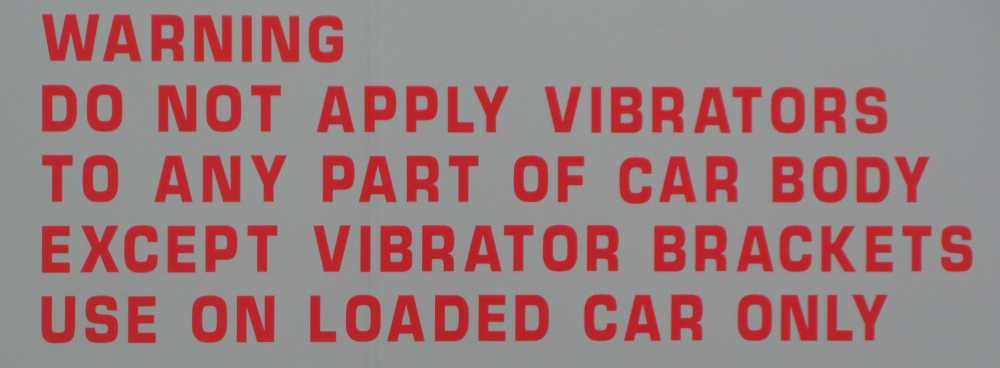

| Hopper bays A and C have 1041 cubic feet capacity. The vibrator bracket is held on with 6 nuts. |
.
| 31 |
.

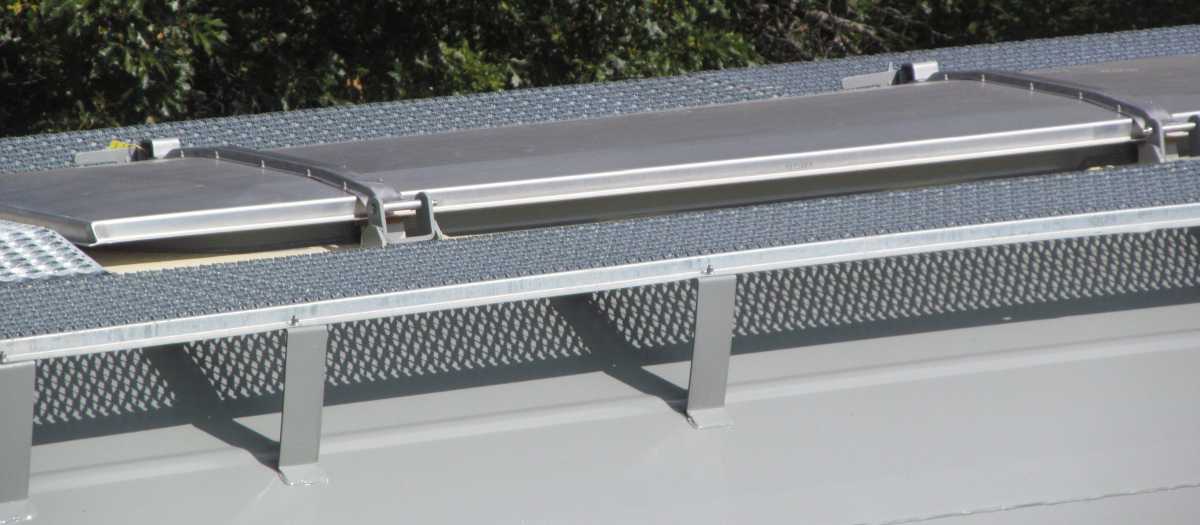

| a top hatch |

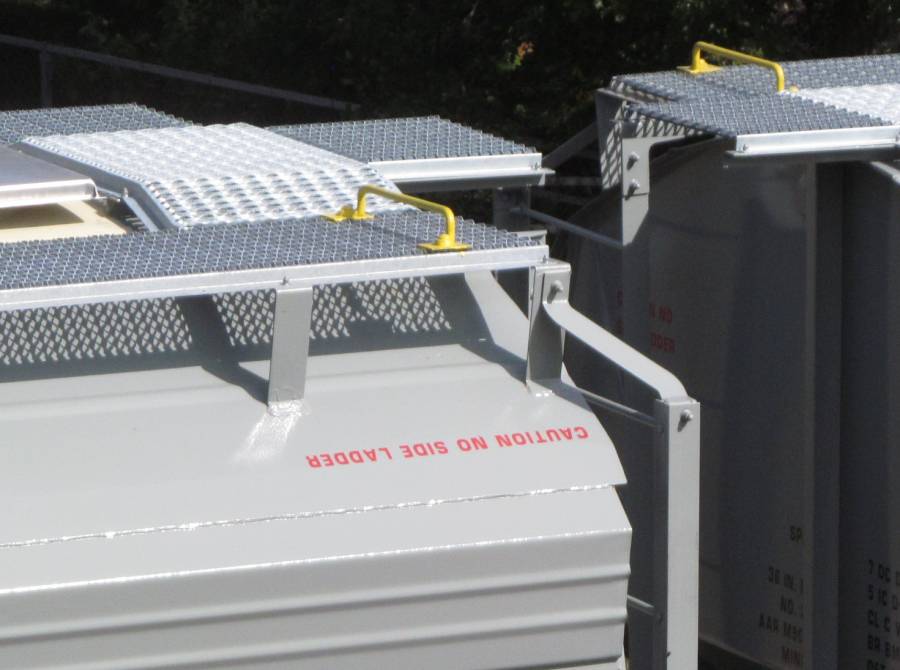

| Like other hopper cars where men can walk on top, there is an up-side down label, 'Caution No Side Ladder' here |
.

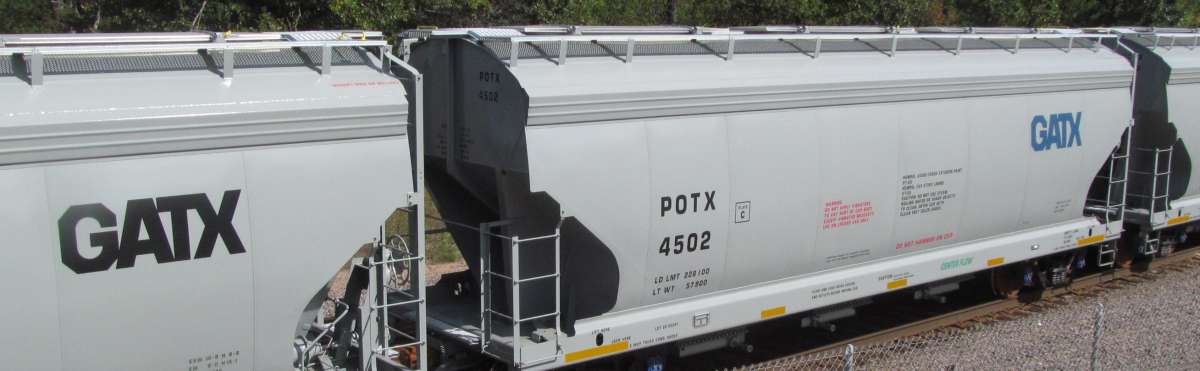

| Most of the cars have a black GATX, a few have a blue GATX |
.

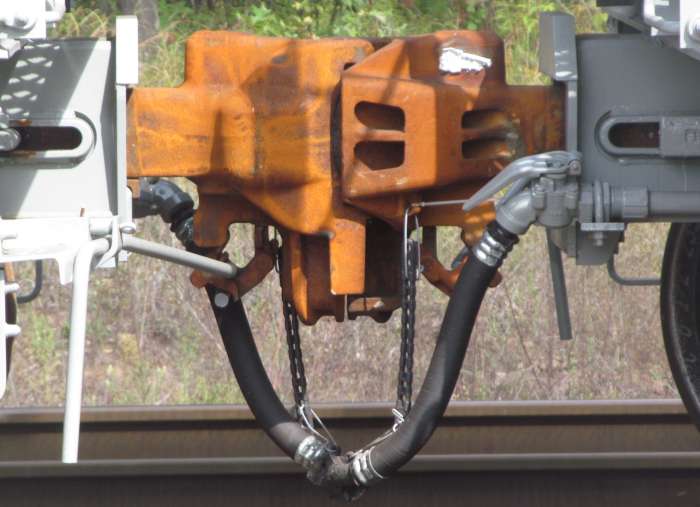

| shelf couplers |
.
.
.
These are three-bay hoppers, not the short 2-bay sand hoppers, so all these add up to be a good length of train.
The end,

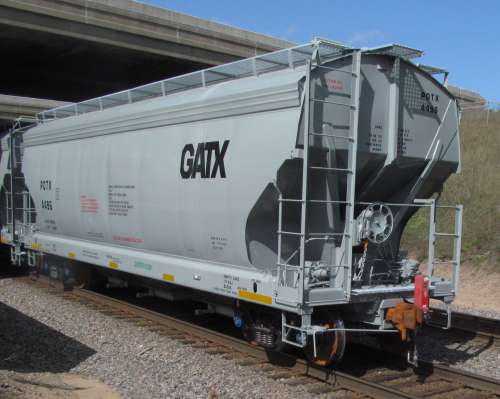

the FRED
. . . . . to My Main Index Page on the TrainWeb site.
This page was filmed and wrote on Sept 18, 2020
