Museum wigwags/Illinois Rwy museum
Illinois Railway Museum

The Illinois Railroad Museum has an impressive collection of working wigwags -
both Magnetic Signal Company and Western Railroad Supply signals.

Julie Johnson sends in the following 4 photos and tells us a bit about them...
"All five of the wig wags are fully in operation. The two Magnetic
Flagmen are at Depot Street south of the station building on the east
leg of the wye, part of the streetcar loop. The two "banjo" or "harp"
style autoflags are on Central Ave, also used by the streetcar line.
(One is a WRRS, the other a Bryant-Zinc). The fifth single wigwag is on
the west leg of the wye near the ticket booth and tower. This track is
used in some moves, and traffic into the "L" Station."

click to enlarge

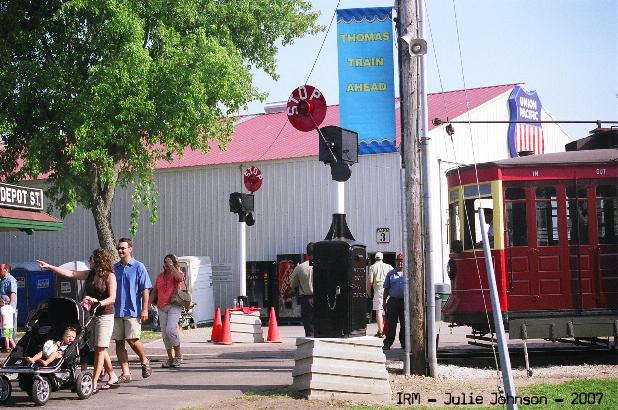

Above - 2 Magnetic Signal Company upper quadrant wigwags.
Julie adds...
"And I might mention that all wig wags are operated by track circuits,
and operate on a daily basis. The concrete bases under  the M-S are from plans used on the
Chicago South Shore and South Bend RR in 1925, and the yet to be painted "scare" stripes are cast in."

click to enlarge

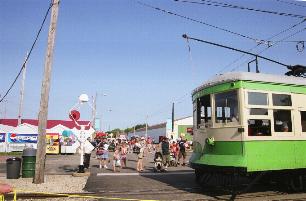

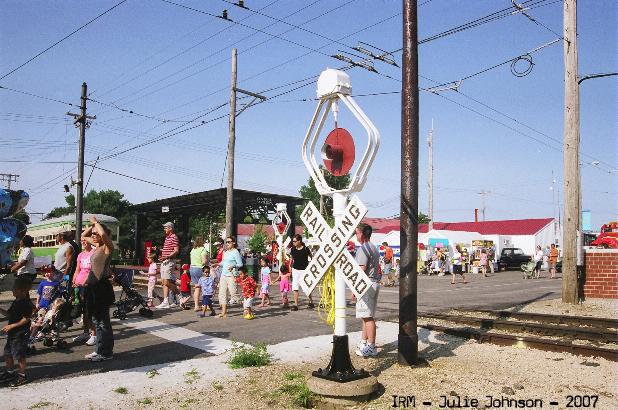

According to Julie, one of these signals was built by Bryant-Zinc, the other is WRRS. Both from C&NW.
click to enlarge

click to enlarge
This signal originated from the CB&Q in Missouri.
Above 4 photos - Julie Johnson 2007

More...  (2/09)
Looks like the signal collection at IRM continures to expand. Here are more photos and
information provided by Julie Johnson:

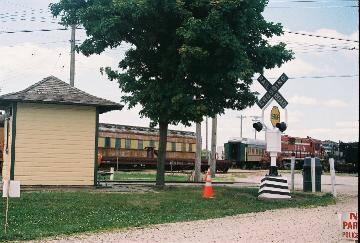

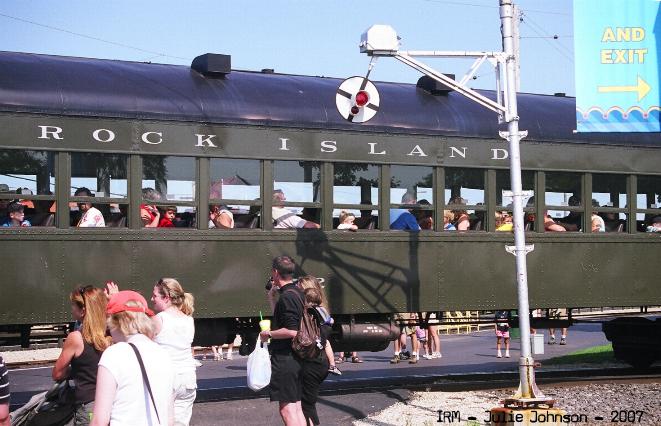

As for the Griswold, I got it 30 years ago from the Chicago South Shore and South Bend interurban. It is mounted on a concrete base from the railroads plans. The South Shore had bought it about 1950 from the Milwaukee Electric lines secondhand. It dates back to 1939, and is 110V AC operated. click to enlarge

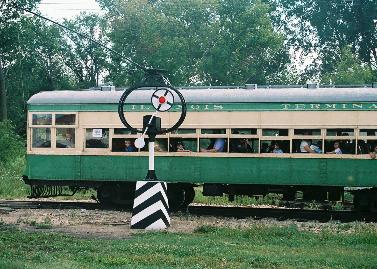

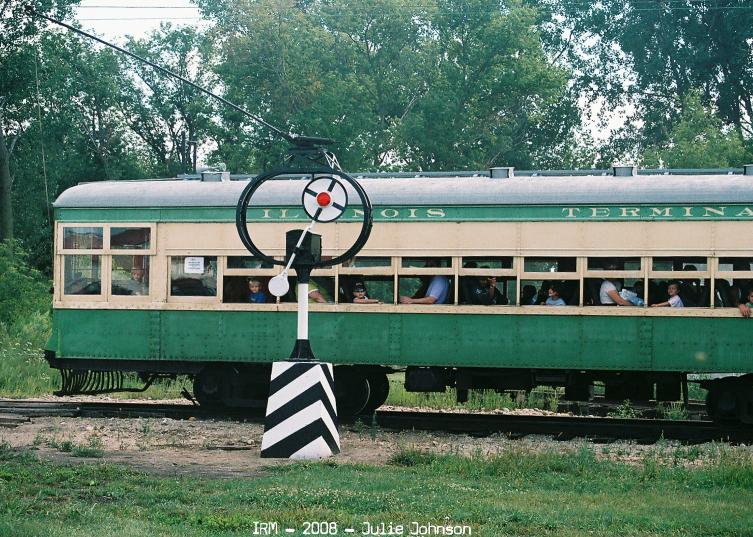

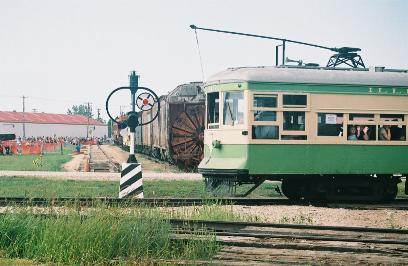

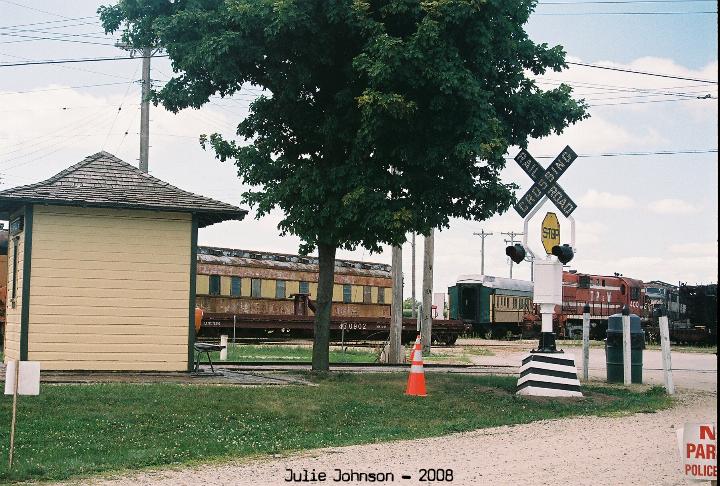

Here are photos of two newly installed units at the
Illinois Railway Museum. Both are all original. The mast of the M-S came from Jerold Crawford from the old N&W, the M-S came from a maintainer in range County CA who had it in his garage for 30 years. And yes, it has an original bent arm UQ banner. All I had to do was reassemble it, paint it and put it into service on a newly poured foundation.
click to enlarge

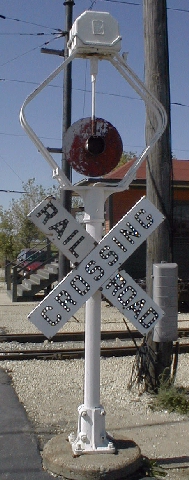

This is the only oval shaped "Peach Basket" wigwag I've ever seen a photo of... Thanks to Julie for sending these photos. click to enlarge

From 2000...
click to enlarge
One of the Harpes wigwags before restoration.
Photo by Joe Stachler  (9/00)

Learn more about the IRM at their website.

Photo by Joe Stachler  (9/00)
