Hanging Yard Construction Plans: Phase 5
Hanging Yard Construction
Plans:
Phase 5
February 1, 2001
Back
to the JLS Railroad Plans Archive

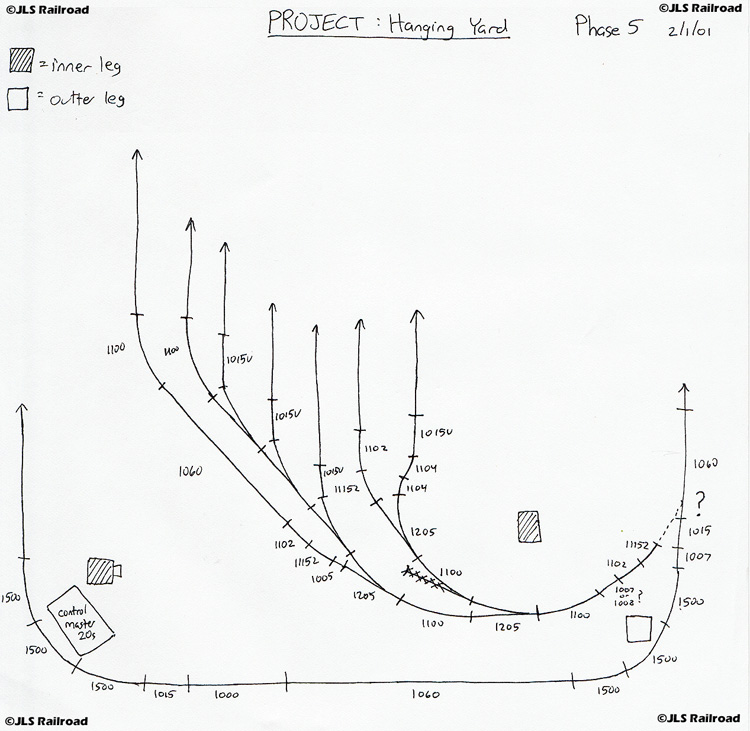

The final rendition of the Hanging Yard's track arrangement.
The lead switch, which is continuous with the first tier of the
Helix is still unknown. Surprisingly enough we were able to squeeze
7 long sidings in this very small area (thanks in part to the
genius of Skip Densing). The lengths of the sidings have yet to
be calculated as well, but should be on the order of 10 to 12
feet each.
