Avonside Locomotives

Avonside Engine Co.,
Bristol, England


Ex-NZR Locos Index

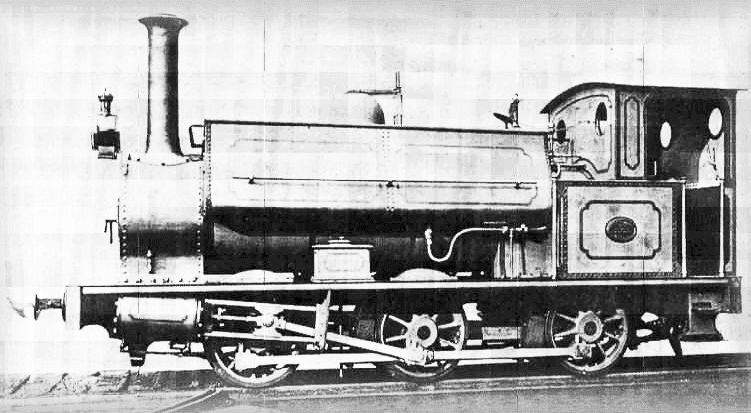

Built:
1875
 Gauge:
3'-6"
Number:
1088
F 75
 Cylinders:
Two - 10½" x 18"
Wheel Arr.
0-6-0 ST
 Pressure:
130 psig
Wheel Diam:
36"
 Weight:
20.25 tons
History:
1876-1925 NZ Railways
1925-1955 Stuart & Chapman, Ross
1956 Butler Brothers, Ruatapu.
Stopped work 1956

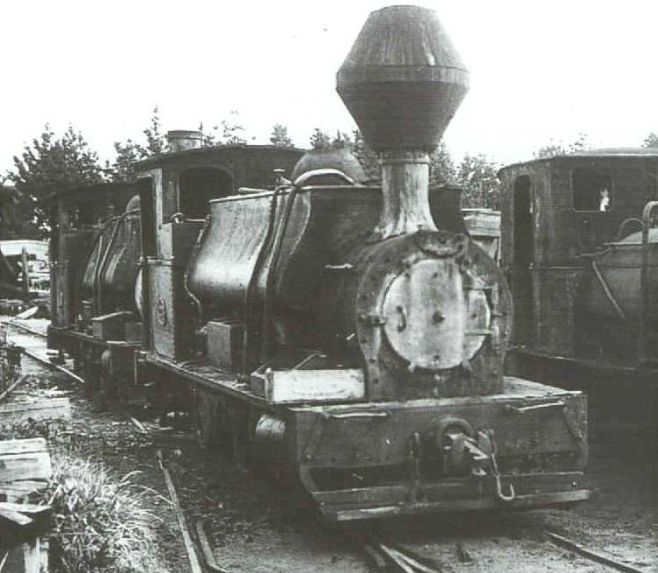

Built:
1875
 Gauge:
3'-6"
Number:
1089
F 225
 Cylinders:
Two - 10½" x 18"
Wheel Arr.
0-6-0 ST
 Pressure:
130 psig
Wheel Diam:
36"
 Weight:
History:
1875-1935 NZ Railways
1935-1955 Butler Brothers, Ruatapu

Photo : B.D. Whebell


# 1090     Saddle Tank     Built 1876     Class F 40     0-6-0 ST
1876-1934 NZ Railways
1934-1948 Stuart & Chapman Ltd., Ross
Converted May 1955 for £7000 to Diesel-mechanical
Fitted with Gardner diesel with Drewry transmission
1955 Butler Brothers, Ruatapu
1968 Caxton Paper, Kawerau
1977 NZCo-oP Dairy Co., Frankton
1986 Gordon Banfield
Now at Bay of Islands Vintage Railway

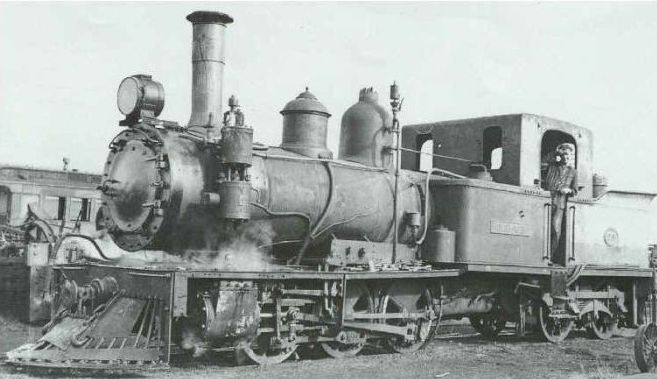

Built:
1878
 Gauge:
3'-6"
Number:
1218
R 29
 Cylinders:
Two - 12¼" x 16"
Wheel Arr.
0-6-4 T
 Pressure:
130 psig
Wheel Diam:
36"
 Weight:
32¼ tons
History:
Single Fairlie type
1879-1932 NZ Railways
1933-1942 NZR Stores Branch, Mamaku
While heavier than an 'F', axle loading was the same.

Photo : E.J. McLare
