Ex-NZR Locos Index

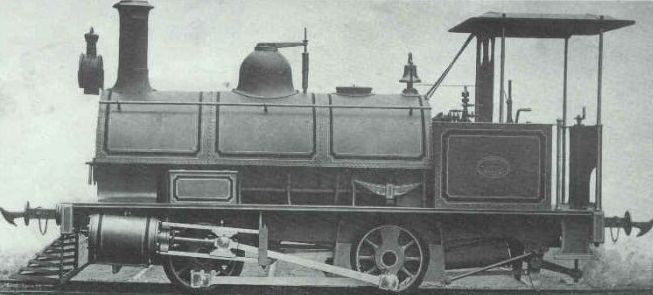

Built: 1873		Gauge: 3'-6"
Number: 1765 C 166		Cylinders: Two - 9½" x 18"
Wheel Arr. 0-4-2 ST		Pressure: 120 psig
Wheel Diam: 30"		Weight:

History: 1874-1892 NZ Railways 1896-1897 John McLean & Sons Helensville 1899-1956 Castlecliff Railway Co. Castlecliff

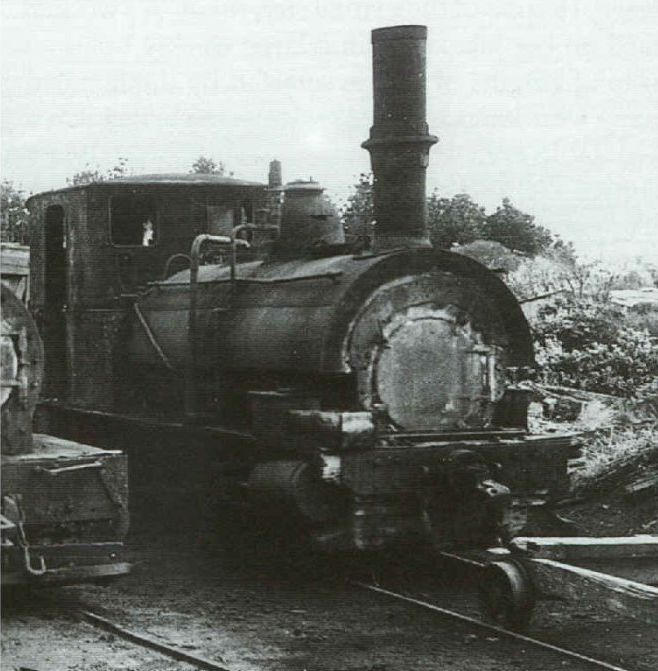

Built: 1873		Gauge: 3'-6"
Number: 1766 C 148		Cylinders: Two - 9½" x 18"
Wheel Arr. 0-4-2 ST		Pressure: 120 psig
Wheel Diam: 30"		Weight:

History: 1874-1911 NZ Railways C 148/557 1911-1915 NZR Stores Branch, Kakahi 1916-1922 Idle 1922-1953 Butler Brothers. Ruatapu Photo : B.D. Whebell

---

#1766    Saddle Tank    Built 1873 Class C 577    0-4-2 ST 1875-1922 NZR C 148/577 1922-1953 Butler Brothers, Ruatapu

# 1772    Saddle Tank    Built 1873 Class C 131    0-4-2 ST 1875-1885 NZ Railways Named Ahaura C131 (Greymouth C1) 1885 Greymouth Harbour Bd. PWD 1923-1925 on loan Stuart & Chapman, Ross 1948 fitted with petrol motor Scrapped 1953

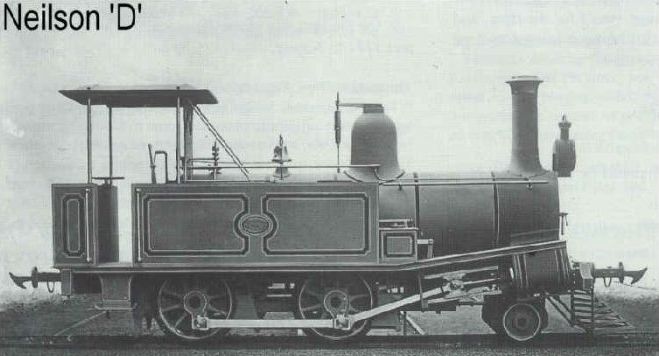

Built: 1874		Gauge: 3'-6"
Number: 1843 D 240		Cylinders: Two - 9½" x 18"
Wheel Arr. 2-4-0 T		Pressure: 130 psig
Wheel Diam: 36"		Weight: 12 tons

History: 1874-1919 NZ Railways (Auckland D51) 1919-1925 Union Box & Timber Co. Rawene/Taheke 1924-39 McDonalds Lime Co., Whitecraig, Oamaru

# 1844    Side Tank    Built 1874 Class D 197    2-4-0 T 1879-1916 NZ Railways (Wellington D3) 1917-1925 Powell Wood Processing Co, Rangataua 1925-1930 Gisborne Harbour Board 1930-1947 Waitaha Timber Co., Waitaha 1947-1951 Lake Brunner Sawmilling Co., Ruru For spares only at Lake Brunner, not used

# 1848    Side Tank    Built 1874 Class D 169    2-4-0 T 1874-1914 NZ Railways (Wellington D21) 1914-1928 Kauri Timber Co. Thames and Parawai 1878 - D51; 1882 - D21; 1890 - D169

# 1849    Side Tank    Built 1874 Class D 144    2-4-0 T 1875-1915 NZ Railways 1915-1923 Mount Burnett Coal Co. Pakawau 1928-1951 Kaniere-Hokitika Sawmilling Co., Hokitika

# 2307    Side Tank    Built 1874 Class D 149    2-4-0 T 1878-1920 NZ Railways 1920-1924 Gamman & Co. Ohakune 1924-1945 Gamman & Co. Mamaku

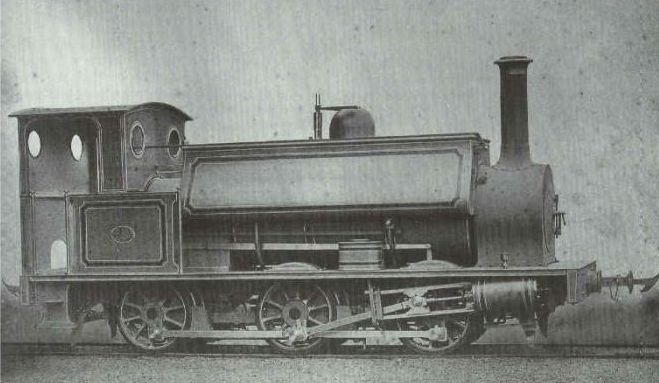

Built: 1878		Gauge: 3'-6"
Number: 2412 F 113		Cylinders: Two - 10½" x 18"
Wheel Arr. 0-6-0 ST		Pressure: 130 psig
Wheel Diam: 36"		Weight: 30 tons

History: 1878-1941 NZ Railways 1941-1956 Butler Brothers. Ruatapu

# 2562    Side Tank    Built 1880 Class D 170    2-4-0 T 1881-1912 NZ Railways 1912-1916 NZR Stores Branch, Kakahi 1916-1921 NZR Stores Branch, Mamaku Museum Christchurch (?)

# 2563    Side Tank    Built 1880 Class D 576    2-4-0 T 1881-1916 NZ Railways (Wellington D22, D170/576) 1916-1922 NZR Stores Branch, Mamaku 1916 NZR took over Mountain Rimu Timber Co.

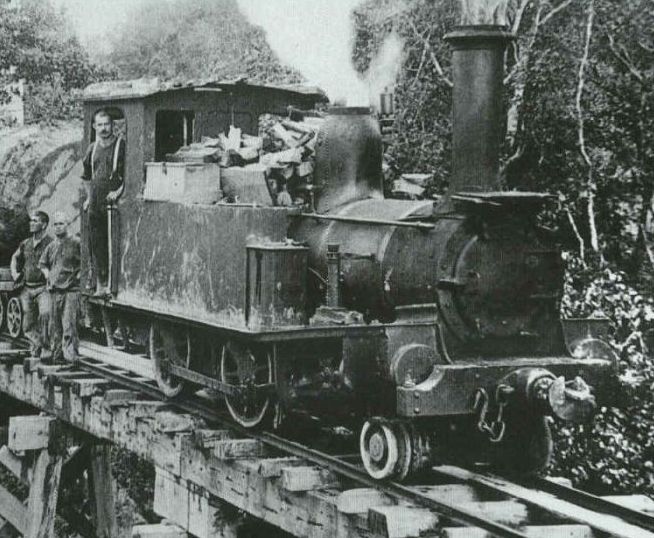

Built: 1880		Gauge: 3'-6"
Number: 2565 D 221		Cylinders: Two -
Wheel Arr. 2-4-0 T		Pressure:
Wheel Diam:		Weight:

History: 1881-1918 NZ Railways 1918 to Leyland O'Brien Kaingaroa (675) Last used 1928 derelict to 1963 1963 To Centennial Park, Kaitaia.

# 1764   Saddle Tank "Belmont"    Built 1883
Class C1    0-4-2 ST
1883-1888 Wellington, Manawatu Railway Co.
1888-1889 Wilkie Brothers & Wilson, Helensville
1889-1890 Wilkie Brothers & Wilson, Westport
1891-1918 Castlecliff Railway Co. Wanganui
1918-1926 Tauranga Rimu Timber Co. Tauriko

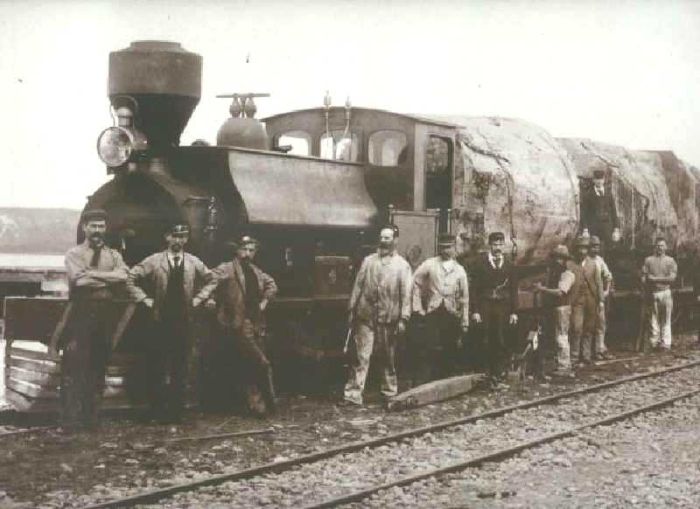

Built: 1887		Gauge: 3'-6"
Number: 3751 F 216		Cylinders: Two - 10½" x 18'"
Wheel Arr. 0-6-0 ST		Pressure: 130 psig
Wheel Diam: 36"		Weight: 30 tons

History: 1888-1893 Kaihu Valley Railway #1 1893-1932 NZRailways F 216 1932    Written off.
