France's Matra Transport (now Siemens) was in charge of building the $855-million Mucha line. Opened  March 28th 1996 after 2 years of testing it was the first revenue operating line for the TRTC. The Mucha line is of the VAL type with no conventional rails between the concrete beams and with what seems to be a directional guideway in the center to assist with the end of line track switching.

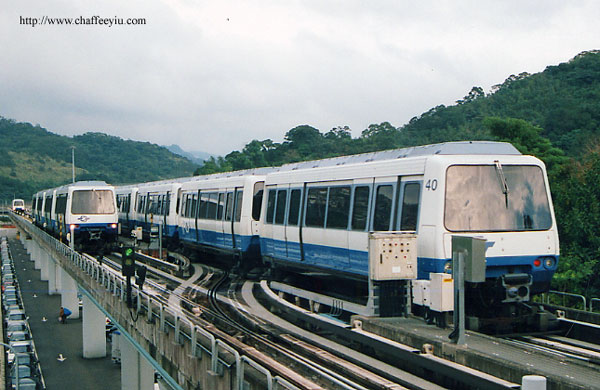

Picture from chaffeeyui.com or natransit.com



Opening date March 28th 1996 link
Cost to build Mucha line 855$ Million link
System category Medium sized VAL
Hours of operation 6:00 to 24:00 link
Number of stations then and now 12 link
Future planned expansion(s) Neihu Line
Ride cost 20-65 NT dollars (33NT = 1USD) link
Fully, Semi, Non Automated Fully automated, Driverless
Total Distance then and now 10.5 (Dorts figures may include depot 10.9km) link
Underground, Aerial, mixed Completely Aerial, extension may be mixed
Fleet of cars/trains N/A

Actual Ridership 90 000 passengers per day link
Capacity per hour 30 000 passengers/hours both directions link
Capacity per car/train 24 seated/90 standing per car (114 total/car) link
Train Headway 4min peak hours 7 min off peak link
Train car formations 2 sets of 2 (4 cars total per train) link
Station dwelling time 20 sec link
Though operation time 22 min link

Vehicle type VAL 256
Max Speed 80km/h link
