T-TRAK Module Profiles |
|
|
T-TRAK Module: ADM Grain |
Owner Name: |
Bob & Becky Milback |
Status: |
Complete |
Date Built: |
2018 |
Certified: |
Certified 11/2019 |
Module Type: |
Standard T-TRAK Triple + Double | ||
Width: |
|
Depth: |
13" |
Passing Sidings: |
None |
Other Tracks: |
None |
Industrial Spurs: |
Spur off Yellow to loading area |
Yard Tracks: |
None |
Engine Service: |
|
Crossovers: |
None |
Electrical: |
Track Feeders: |
Yes | |
Turnout Control: |
Manual | ||
Accessory Bus |
Yes, 0.5A | ||
Other: |
Kato automatic crossing gates and LED lights | ||
Special: |
| ||
Packaging for Transport: |
Own carrier | ||

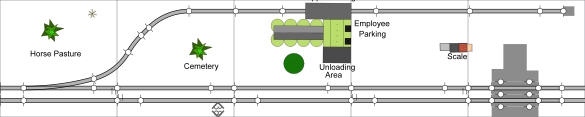

Track Plan | |||

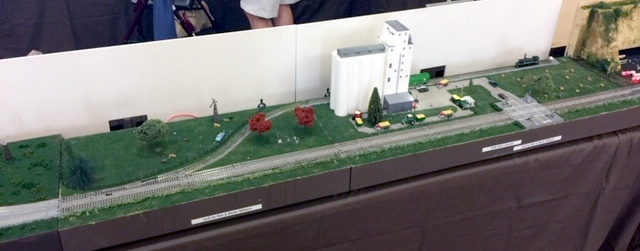

Module Photograph | |||
Photograph of Module Bottom | |||
| |||
Module Description |
T-TRAK Module: Binghamton Maintenance Facility |
Owner Name: |
Bob Milback |
Status: |
Track and wiring complete |
Date Built: |
11/2019 - 6/2020 |
Certified: |
|
Module Type: |
Standard T-TRAK Triple | ||
Width: |
|
Depth: |
13-7/8" |
Passing Sidings: |
None |
Other Tracks: |
None |
Industrial Spurs: |
None |
Yard Tracks: |
None |
Engine Service: |
Turntable with 2 service tracks |
Crossovers: |
Red to Yellow |
Electrical: |
Track Feeders: |
Yes | |
Turnout Control: |
Manual | ||
Accessory Bus |
Yes, 0.5A | ||
Other: |
Kato turntable operates off 5VDC | ||
Special: |
Detachable turntable control box | ||
Packaging for Transport: |
Control box sits in bottom of ADM Grain carrier; module is middle spot of same carrier. | ||

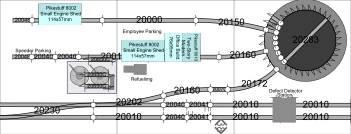

Track Plan | |||

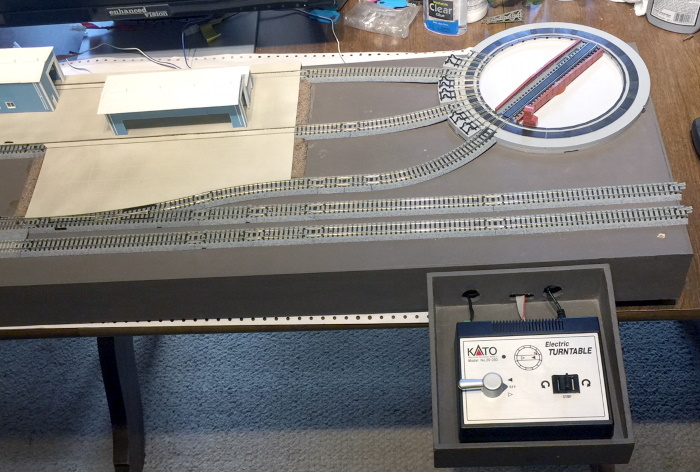

Module Photograph | |||

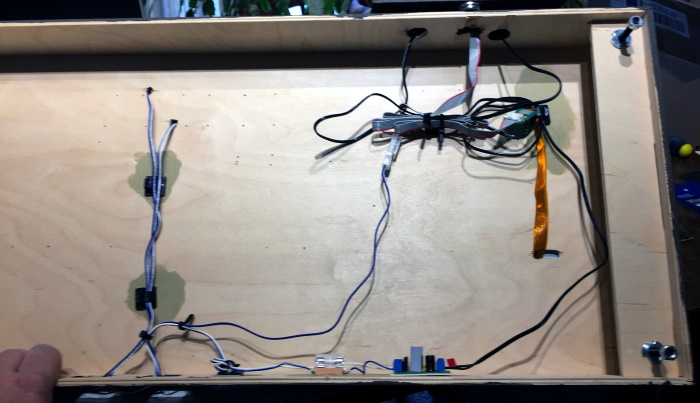

Photograph of Module Bottom | |||
Module Description |
T-TRAK Module: Gorman (Surburban) Station |
Owner Name: |
Bob & Becky Milback |
Status: |
Complete |
Date Built: |
2019 |
Certified: |
Certified 11/2019 |
Module Type: |
Standard T-TRAK Singles (2) + Double | ||
Width: |
|
Depth: |
13" |
Passing Sidings: |
None |
Other Tracks: |
None |
Industrial Spurs: |
None |
Yard Tracks: |
None |
Engine Service: |
None |
Crossovers: |
None |
Electrical: |
Track Feeders: |
Yes, on doub le module | |
Turnout Control: |
No | ||
Accessory Bus |
No | ||
Other: |
No | ||
Special: |
The two outside singles separate the main lines for passenger platforms which are on the double module with the station. The left single also has the Parkway Diner and Trackside Bar. The right single is scrub brush and an abandoned windmill. | ||
Packaging for Transport: |
Two under bed storage tubs, one for the singles and the other for the double. | ||

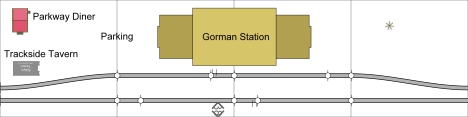

Track Plan | |||

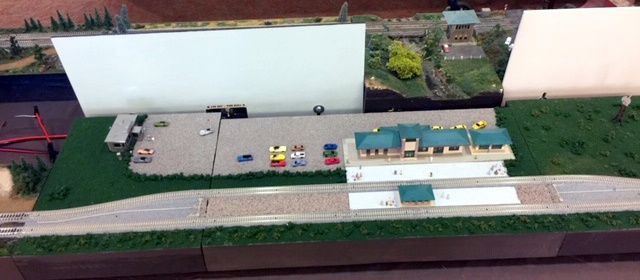

Module Photograph | |||
Photograph of Module Bottom | |||
| |||
Module Description |
