NorthWest RailPics Freight Car Archieves ARR 10817

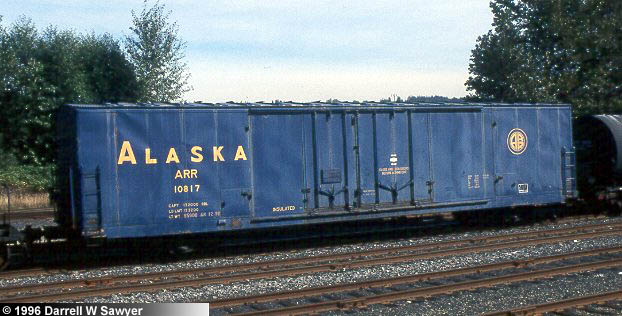

ARR 10817

Click thumbnail for full size image
Series 10817 Only
Former Number Unk Former Series Unk
Built 10/65 Rebuilt N/A
Car Manufacturer ?Pacific Car & Foundry? Location ?Renton, WA?
Lot Number Unk Plate -
AAR Class RBL RR Class N/A
IL 58-6 IW 9-2
IH 9-5 Door Style Youngstown V-Latch
Door W 9-0/6-0 Door H 9-4
Cuft 5049 Ld Limit 133,200
Truck National C-1 Wheel Diameter 33"
Hand Brake Peacock Date Painted Unk
Photo Location Orillia Yard (Kent), WA (BNSF) Photo Date 9/24/96

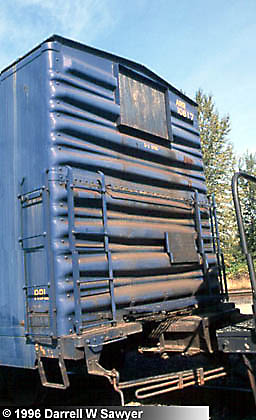

Photographer Darrell Sawyer Remarks Note lumber door cut into end
Resources MRG 2/90 Commodity
