| Series | 30000-30499 | ||
| Former Number | N/A | Former Series | N/A |
| Built | 3/78 | Rebuilt | N/A |
| Car Manufacturer | ACF Industries | Location | St Louis, MO |
| Lot Number | 11-06849 | Plate | C |
| AAR Class | - | RR Class | XAF20 |
| IL | 50-6 | IW | 9-6 |
| IH | 11-0 | Dr W | 10-4 |
| Dr H | 10-4 | Door Type | SCD 6-panel |
| End | 3/3 corrugated | ||
| Cuft | 5290 | Ld Limit | 157,300 |
| Truck | ASF Ride Control | Wheel Diameter | 33" |
| Hand Brake | Ellcon-National Peacock | Date Painted | 3/78 |

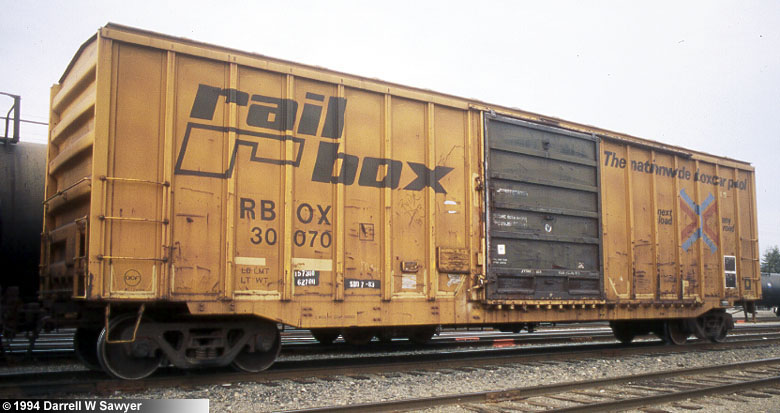

| Photo Location | Burlington, WA (BN) | Photo Date | 12/10 & 12/24/94 |
| Photographer | Darrell Sawyer | Remarks | |

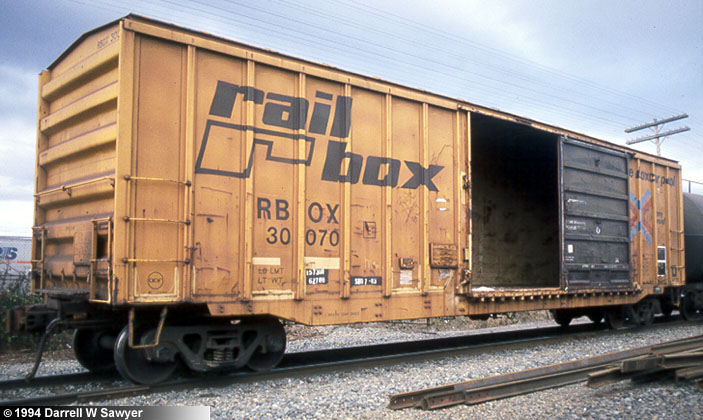

| Resources | Commodity | Just unloaded cottonseed in 1st image |
