CLASS  K    4-8-4


Introduced:    1932 Number in Class:    30

K Class Register




Locomotive Specifications

Builder:
  NZR Hutt

Engine Weight:
85.6 tons
Tender Weight:    50.0 tons Total Weight:    135.6 tons Adhesive Weight:
54.25 tons
Length over Buffers:
69' 8"
Total Wheelbase:
61' 10"
Engine Wheelbase:
34' 10"
Coupled Wheelbase:
14' 3"
Tender Wheelbase:
18' 2"
Driver Wheel Dia.:    54" Cylinders HP:
Two - 20" x 26"
Cylinders LP:
Grate Area:    47.7 sq ft Evaporative Area:
1933 sq ft
Superheated Area:
485 sq ft
Working Pressure:
200 psig
Tractive Effort:
30815 lbs f
Coal Capacity:    7.75 tons Oil Capacity:    1570 gals Water Capacity:
5000 gals

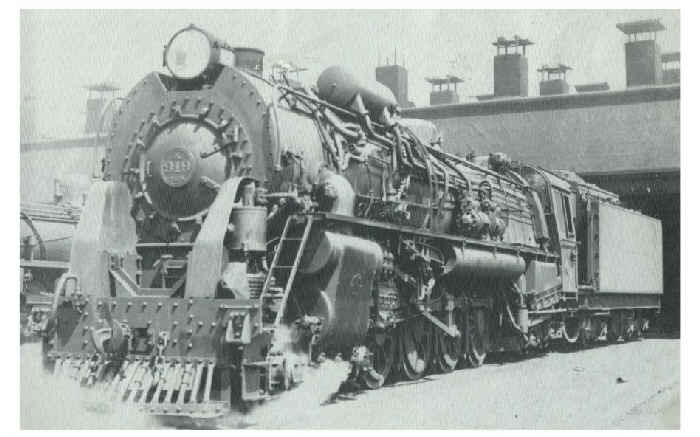

Remarks:     In 1930 it became clear that the 'Ab' class Pacifics would have to be replaced on the heaviest and fastest trains in the North Island. The requirement was for a non-articulated locomotive developing 50 per cent more power. The design prompt resulted in the 'K' class and the massive boiler dictated that a 4-8-4 wheel arrangement would be necessary. It was a masterpiece of design, for within the restricted confines of the NZR loading gauge (maximum height above rail 11' 6"; maximum width 8' 6") was built a locomotive developing a tractive effort of 30,815 lb, yet having an axle loading of only 14 tons. Features of the 'K' were roller bearing axle-boxes on all axles, Commonwealth cast-steel firebox cradle and rear engine truck, power reversing gear, grease-lubricated floating bronze bushes on the side rods, twin Westinghouse air-compressors, a mechanical lubricator, and an air-operated firedoor. These magnificent locomotives had very little in the way of teething troubles and were extremely successful in passenger and freight work over difficult country. All K class engines were converted to oil burning bewteen 1947 and 1953.
The 1960s saw the introduction of diesel-electric main-line locomotives and the last K's were withdrawn in 1964.

Preserved Locomotives
  Museum of Transport and Technology,    Auckland -     K 900,     NZR Hutt #277/1932   Static Display
  Mainline Steam,    Wellington -     K 911,     NZR Hutt #288/1934   Stored
