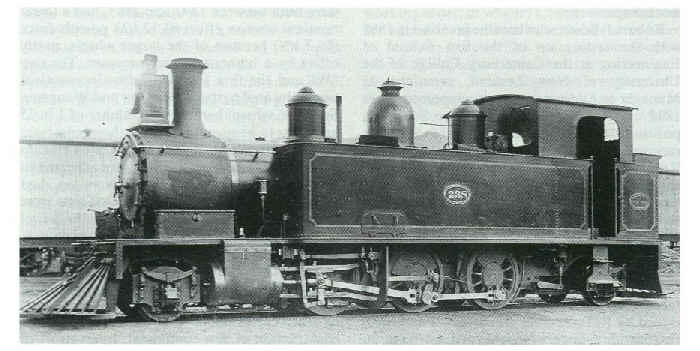

W Class
CLASS  W    2-6-2 T


Introduced:    1889 Number in Class:    2


W Class Register





Locomotive Specifications

Builder:
   NZR Addington

Engine Weight:
37.2 tons
Tender Weight:     Total Weight:    37.2 tons Adhesive Weight:
26.2 tons
Length over Buffers:
29' 5"
Total Wheelbase:    22' 3" Engine Wheelbase:    22' 3" Coupled Wheelbase:
8' 6"
Tender Wheelbase:     Driver Wheel Dia.:    36" Cylinders HP:
Two - 14" x 20"
Cylinders LP:
Grate Area:    12.0 sq ft Evaporative Area:
683 sq ft
Superheated Area:     Working Pressure:
150 psig
Tractive Effort:
12888 lbs f
Coal Capacity:    1.8 tons Oil Capacity:     Water Capacity:
900 gals

Remarks:     W192 was the very first locomotive built by NZR in1889. It is still owned by NZ Rail Ltd. and is steamed on occasion. It was a simple and effective design clearly developed from the 'J' class 2-6-0 and quite a large locomotive by the standards of the day in New Zealand. Both locomotives were intitially used on the Wellington-Summit section of the Rimutaka incline with grades of 1 in 35 and were also used to assist the 'H' class Fell engines on the 1 in 15 grade section.

Preserved Locomotive
  Rail Heritage Trust,    Christchurch -     W 192,     NZR Addington #1/1889   Operating
