Ws Class

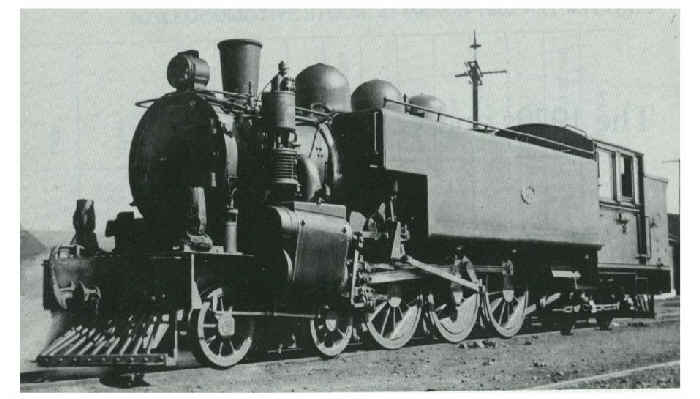

Ws Class CLASS Ws 4-6-4 T

Introduced: 1923 Number in Class: 13

Locomotive Specifications

Builder: NZR Hillside (8)
A & G Price Ltd., Thames (5)

Engine Weight:
71.5 tons Tender Weight:     Total Weight:    71.5 tons Adhesive Weight:
36.8 tons

Length over Buffers:
44' 5" Total Wheelbase:    33' 1" Engine Wheelbase:    33' 1" Coupled Wheelbase:
10' 0"
Tender Wheelbase:     Driver Wheel Dia.:    54" Cylinders HP:
Two - 17" x 26" Cylinders LP:
Grate Area:    33.0 sq ft Evaporative Area:
1148 sq ft Superheated Area:
183 sq ft Working Pressure:
200 psig
Tractive Effort:
22260 lbs f Coal Capacity:    3.0 tons Oil Capacity:     Water Capacity:
1700 gals

Remarks:

Engine Weight: 71.5 tons	Tender Weight:	Total Weight: 71.5 tons	Adhesive Weight: 36.8 tons
Length over Buffers: 44' 5"	Total Wheelbase: 33' 1"	Engine Wheelbase: 33' 1"	Coupled Wheelbase: 10' 0"
Tender Wheelbase:	Driver Wheel Dia.: 54"	Cylinders HP: Two - 17" x 26"	Cylinders LP:
Grate Area: 33.0 sq ft	Evaporative Area: 1148 sq ft	Superheated Area: 183 sq ft	Working Pressure: 200 psig
Tractive Effort: 22260 lbs f	Coal Capacity: 3.0 tons	Oil Capacity:	Water Capacity: 1700 gals
