Canadian National Railways

Mountain 4-8-2

Brand new! May 1930 Cameron Blaikie

U-1-a 6000 looking brand new. One of 16 engines built new in 1923 by CLC for CNR.
Cyl. 26" x 30" Drv. 73" Press. 210 t.e. 50% Bud Laws Collection
Tender 4000 gals. oil increased to 5000 gals. Coal fired 19 tons and 10,000 gals. water

U-1-a 6003 with smoke deflectors. Niagara Falls, NY September 1939. Bud Laws Collection

6003 coal-fired. Truro, Nova Scotia 10/26/1952 Bud Laws Collection

6004 oil-fired and with horizontal bars pilot. Vancouver August 1951 Bud Laws Collection

6005 oil-fired and with horizontal pilot. Vancouver September 1952 Bud Laws Collection

6007 coal-fired and with smoke deflectors. September 1946 Bud Laws Collection

6009 oil-fired with horizontal pilot bars. Note the one-of-a-kind smoke lifter behind stack. Different versions of this style of smoke deflector were a Western Region preference over the Central and Atlantic Regions elephant ears.
Applied soon after 5/50 and remained until 1952. Vancouver 1951 Bud Laws Collection

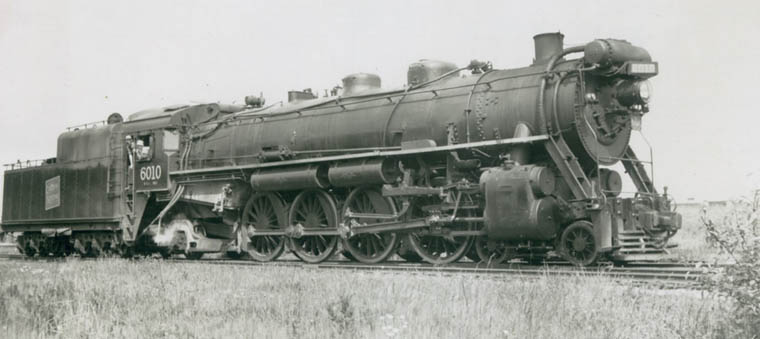

6010 oil-fired. Winnipeg June 1946 Bud Laws Collection

6011 oil-fired. This broadside shows off the huge tender. Note round emblem. Bud Laws Collection

Here is another view of 6011, coal-fired with smoke deflectors. Truro, NS December 7,1947 Bud Laws Collection

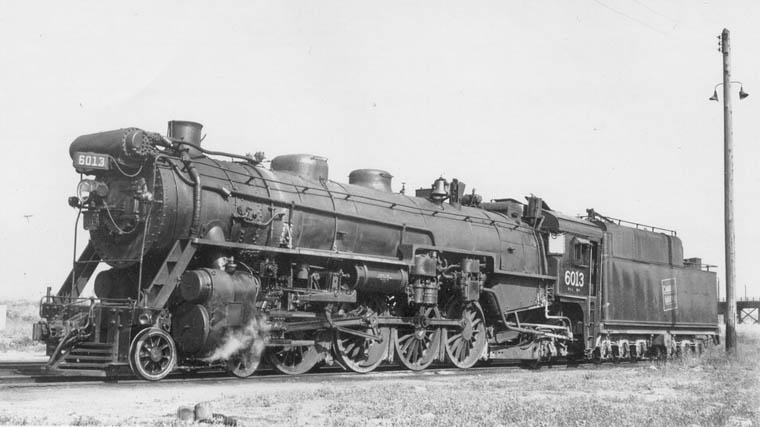

6013 oil-fired. Vancouver July 1956 Bud Laws Collection

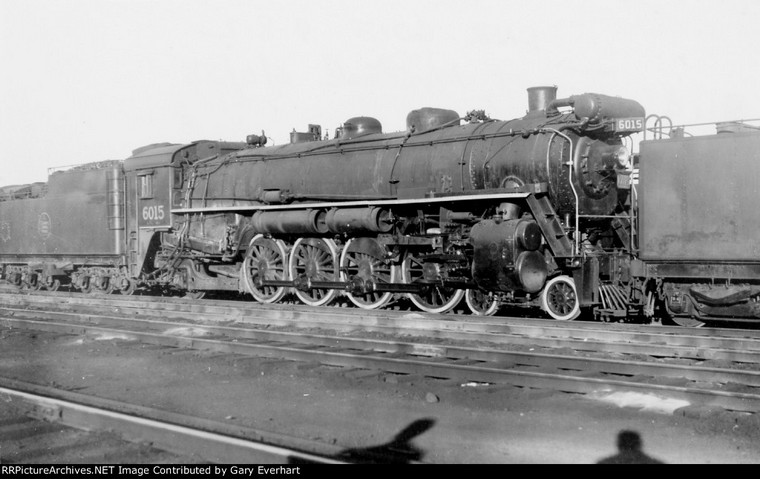

6015 brought here from CRM in Delson in trade for 6060 previously displayed here and returned to service by CNR.
Joseph Testagrose Collection

6015 on display at Jasper, Alberta. 8/19/2011 Larry De Bert

U-1-b 6016 coal-fired. Saskatoon July 1948 Bud Laws Collection
Cyl. 26" x 30" Drv. 73" Press. 210 lbs. t.e. 50% CLC #1744 6/1924

6016 waiting for signal at Turcot West running light to Turcot. November 10/1957 Bob Krone

6026 Portland, Maine 1936 Note odd location on emblem on tender. Bud Laws Collection

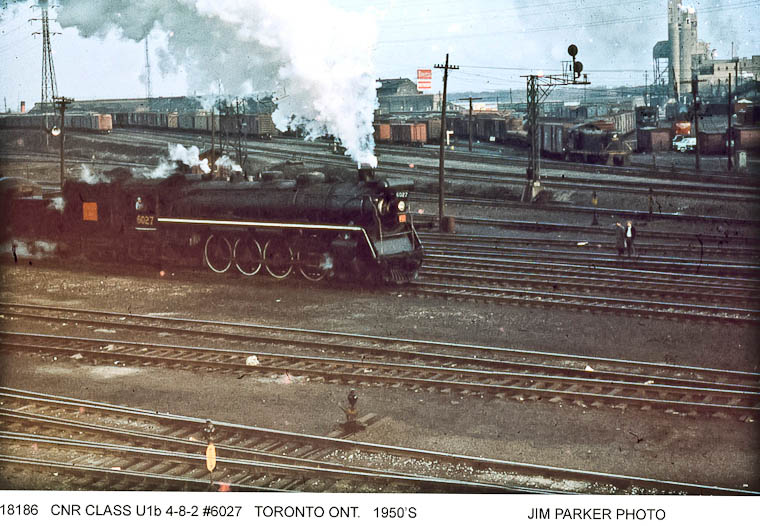

6027 westbound at Bathurst Street.

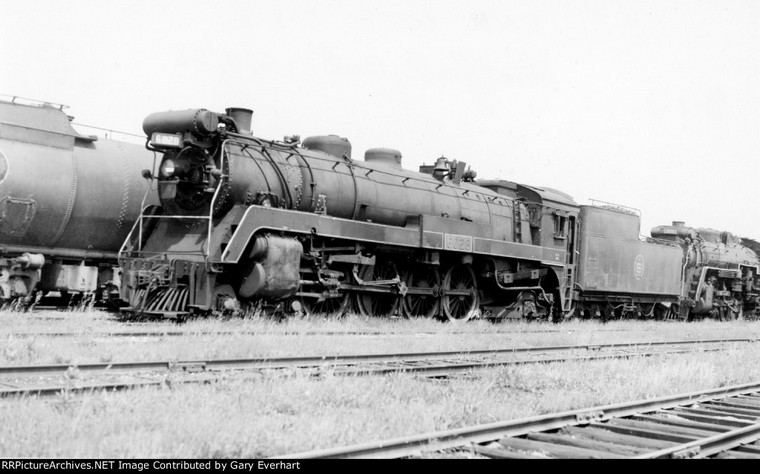

6028 entering Toronto with Royal train. June 1939 Bud Laws Collection

6030 with smoke deflectors. Unknown location. Bud Laws Collection

6031 in Quebec City 9/20/1954 C.W.Jernstrom/Bud Laws Collection

6036 last U-1-b Location unknown Bud Laws Collection

U-1-c 6037-6041 (5) Baldwin 1925

6041 with unusual cowl smoke deflector and Vanderbilt tender. Unknown location 1930's. Bud Laws Collection

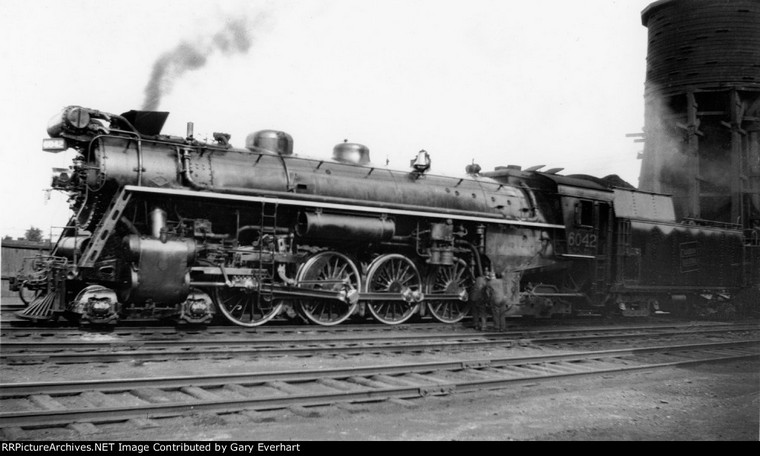

U-1-d 6042-6046 (5) CLC 1929

6043 Bud Laws Collection

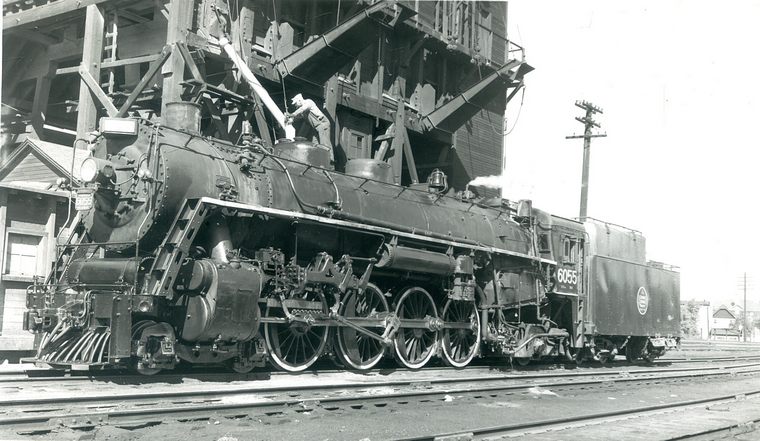

U-1-e 6047-6058 (12) MLW 1930

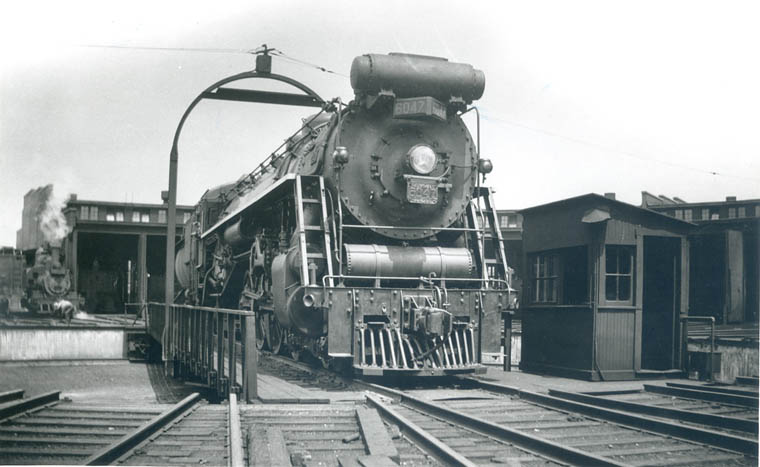

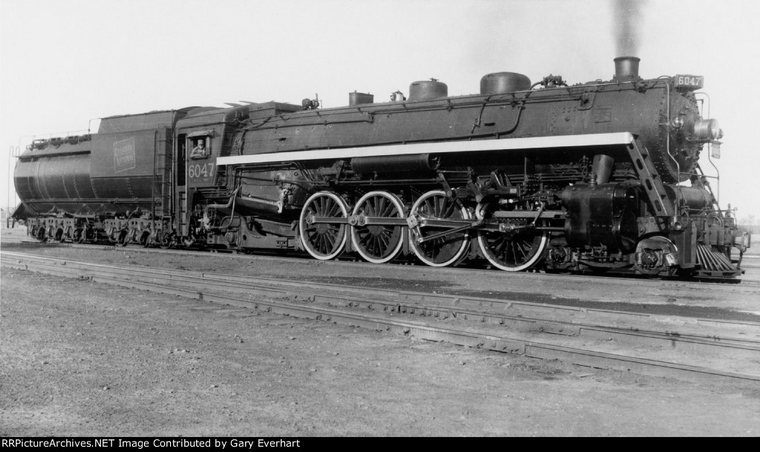

6047 at Spadina roundhouse in downtown Toronto. 1932 Dick George

6047 here without "beetle brow" feedwater heater. Bud Laws Collection

6047 again, this time with decorative side panel and number. Stack smoke deflector.
Royal train eastbound at Rivers, Manitoba. August 4, 1939.
Bud Laws Collection

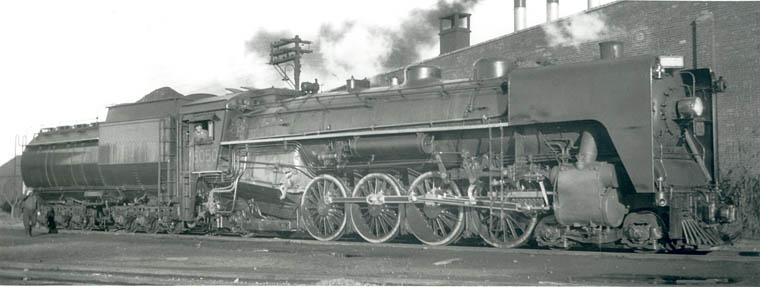

6050 with smoke deflectors. November 19, 1936 Saskatoon, Saskatchewan
Dick George/Paterson-George collection.

6056 No.1 Continental Brandon, Manitoba. Bud Laws Collection

6057 in lots of snow! Jasper, Alberta January 1942 Bud Laws Collection

6058 in better weather at Jasper. November 1942 Bud Laws Collection

U-1-f 6060-6079 (20) MLW 1944
Cyl. 24" x 30" Drv. 73" Press. 260lbs. t.e. 52%

Newer version of the 4-8-2 wheel arrangement came with some streamlining including a nose cone that gave these engines their nickname "Bullet nose Betty". Cap stack and Vanderbilt tender added to their pleasing appearance second only to the 5700 Hudsons.

6060 looking its best. Canadian National Railways/Bud Laws Collection

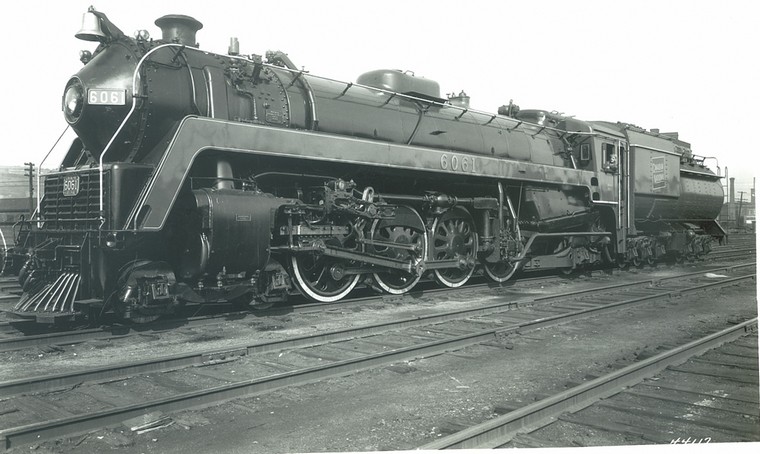

6061 in Winnipeg September 1958 Bud Laws Collection

6062 in Winnipeg. September 1958 Bud Laws Collection

6064 with flat-sided tender off T-4-b (2-10-2) 4327 received when transferred to Western Region and converted to oil same as 6077 and 6079. Also lost "bullet nose" at this time. Saskatoon August 27, 1959 Bud Laws Collection

6065 Winnipeg July 19, 1957 Bud Laws Collection

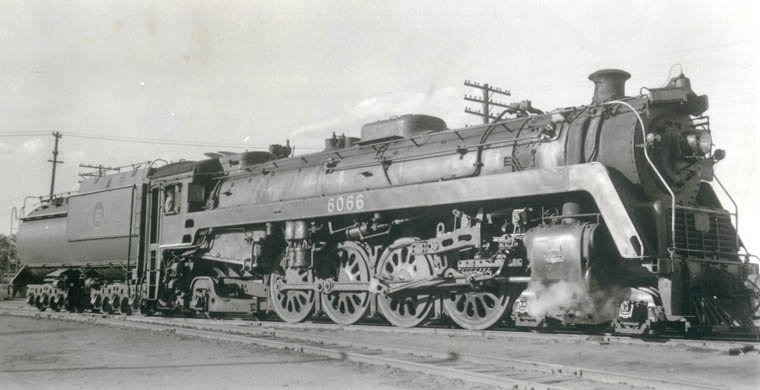

6066 Saskatoon May 1957 Bud Laws Collection

6067 Montreal 9/7/1947 MaxMiller/Bud Laws Collection

U-1-f 6069 MLW #72766 11/44 Niagara Falls April 2,1958 Bud Laws

Note: This engine is displayed in Sarnia. Sister 6060 became famous in steam excursion service and remains in limited use.

Interesting detail in this photograph of slightly blurred engine westbound approaching Bathurst Street (Front Street West in background) caused not by its speed which would be quite slow but rather by the very low film speed (ASA 10) of colour film back then. Switchtenders shack with coal/coke bin, low mounted loudspeaker(atop white post) used by towerman to communicate with switchtenders. Low switch stands and a higher one.

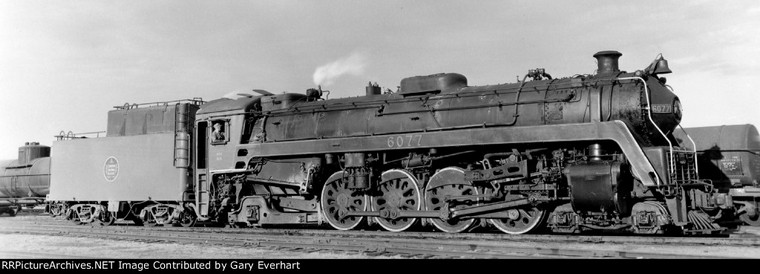

6077 Number 94 Oakville March 23, 1957 Bud Laws Collection

Here she is again. One of three Bullet Nose Betty engines still in existance including 6069 and the famous 6060.
