Railfan Pictures of the Day - 09/19/2006
|Conrail Abrams Yard Upper Merion PA September 1994|
Conrail was doing some house cleaning, and look what they found in the back of the yard.

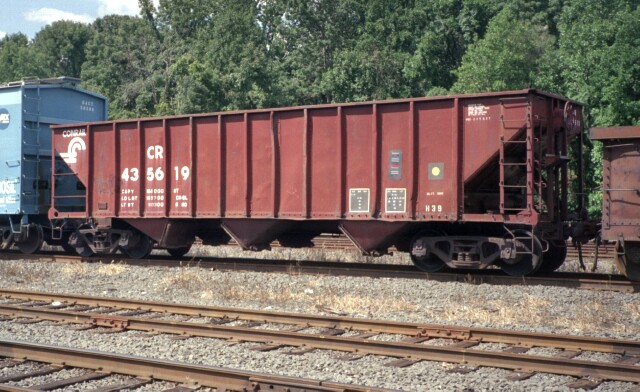

Conrail H39 coal hopper 435619 has its PRR heritage number on the upper right end panel just below its trust lettering, and just to the left are the yellow Wheel Inspection dot and its color coded ACI label. Here is a bit of history on both.
In the 1970's, AAR testing revealed that operational stresses on the steel of railroad wheels are greatest on the back face of the wheel rim, and that the common practice of stamping the back of the wheel rim contributed to the propagation of stress fractures and the resulting wheel failures. In 1978 AAR prohibited the manufacture of rim-stamped railroad wheels on new interchange freight cars. For cars already in service, the AAR required inspection of the wheels. A yellow dot denoted a car whose wheels had been inspected and either passed or were replaced. A white dot meant the rim-stamped wheels found would have to be replaced by the end of 1978 or the car would be prohibited from interchange service.
The Automatic Car Identification system, adopted by the AAR in 1967 and implemented by the railroads by the early 1970's, was an early attempt to allow the railroads to identify cars using a common standard. Unfortunately, it was optically based, and the accumulation of dirt, along with the normal wear and tear on the cars, often made the labels unreadable and led to the abandonment of the system by 1978.

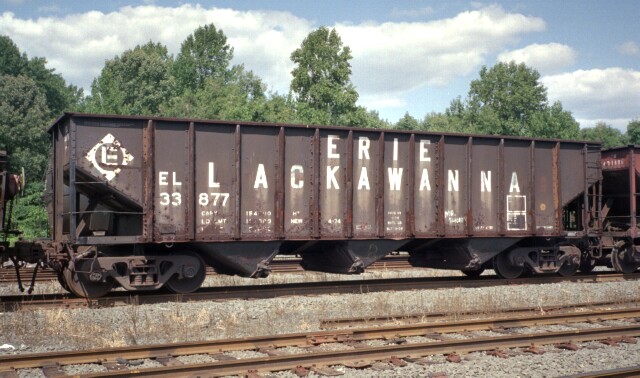

|Erie Lackawanna coal hopper 33877. A quick internet search of "EL Hopper 33877" shows it was still in service in 2004, and still wearing its EL paint for its third owner, Norfolk Southern. Its barely visible ACI label, on the right in line with the LACKAWANNA name, is just above the yellow wheel inspection dot.|

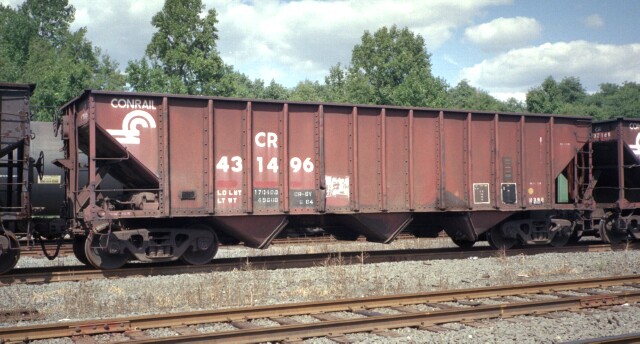

|Conrail H39B coal hopper CR 431496. You can see its dirty ACI label to the right, with its wheel inspection dot just above the class lettering.|

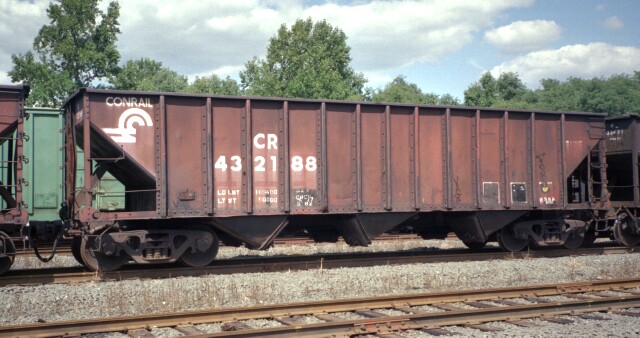

|Conrail H39B coal hopper CR 432188 sans ACI label|

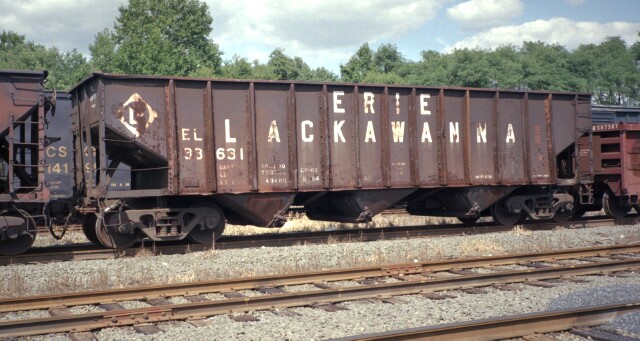

|The whereabouts and condition of Erie Lackawanna coal hopper EL 33631are currently unknown, but if you model N scale, a reasonable copy is produced by Atlas. If you are looking for the ACI label on this car, it and its almost totally obscured yellow dot can be seen on the last full panel on the right.|
All pictures September 1994 Copyright © 2006 John P. Almeida
