Proto:64 - Des Plaines Hobbies/NWSL Code 88 Profile



Proto 64
Des Plaines Hobbies/NWSL RP-25 Code 88 wheel

Back to Standards   Proposed NMRA/NASG P:64 wheel contour

Desplaines/NWSL Code 88

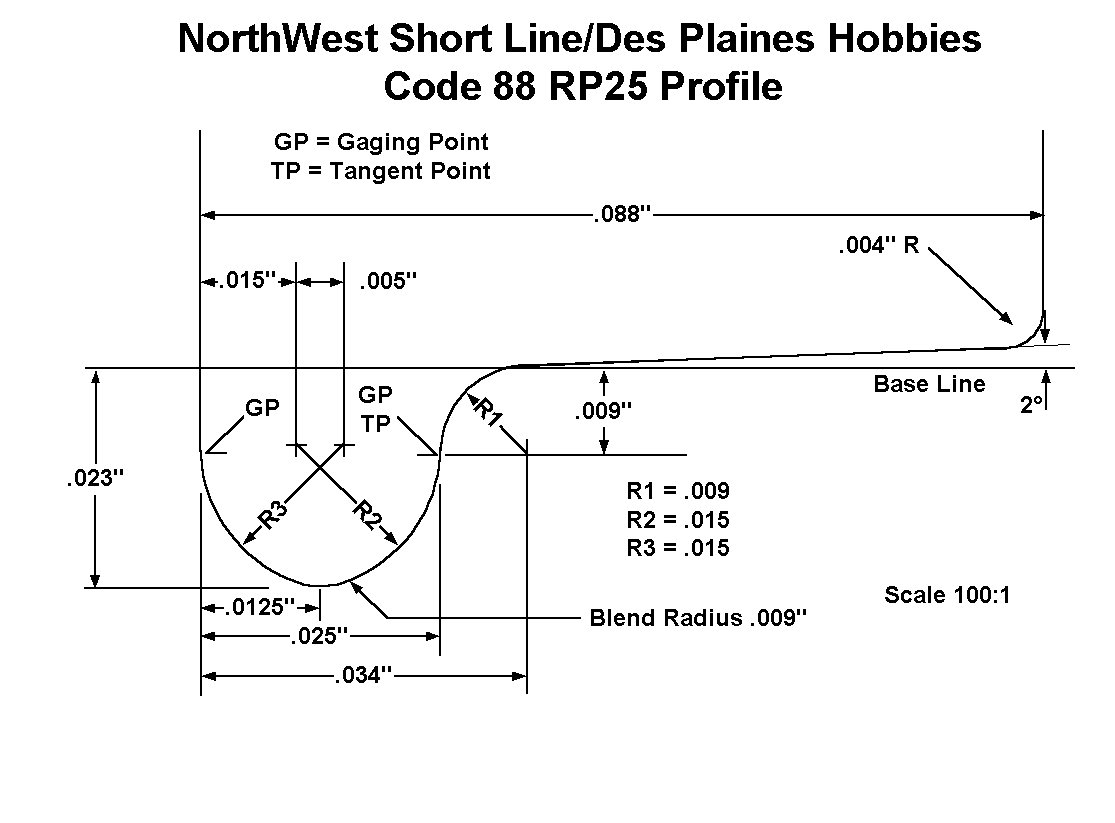

Drawing above is shown at one-half normal size. Click on the drawing to view it full size.
