GO's Classic Exterior Lights
GO Transit - Classic Series Commuter Cars / Cabcars
EXTERIOR INDICATOR LIGHTS
| GO Coach Index | Main GO MOTIVE POWER Page |
INDICATOR LIGHT
(Centre Location)
EXPLANATION
INDICATOR LIGHT
(Centre Location)
EXPLANATION
INDICATOR LIGHT
(Centre Location)
EXPLANATION

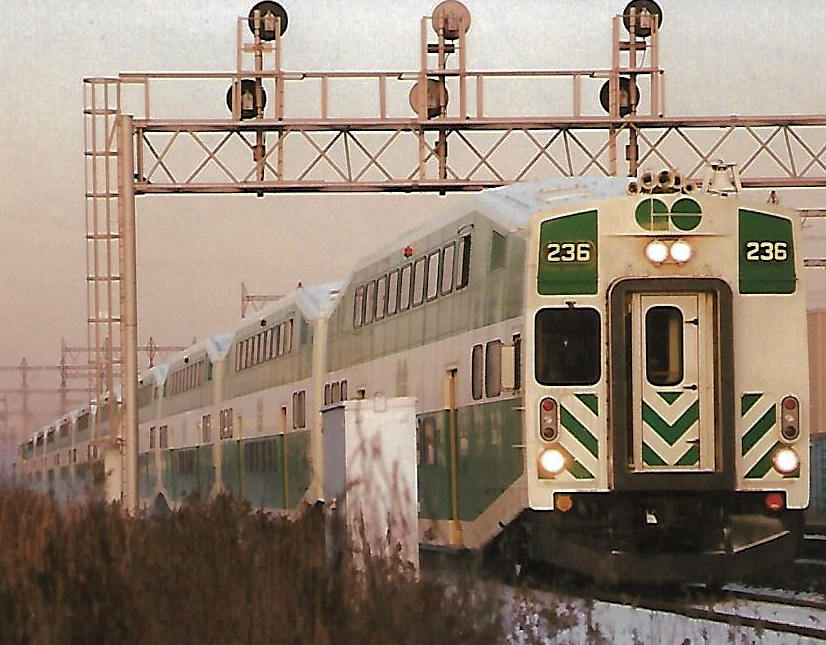

RED SOLID

Illuminates when a door(s) open on coach / Cabcar.

©2018 RGBurnet
Click to enlarge in a new window
FLASHING RED

Illuminates when the Priority Alarm is activated.

As in image to the left only flashing

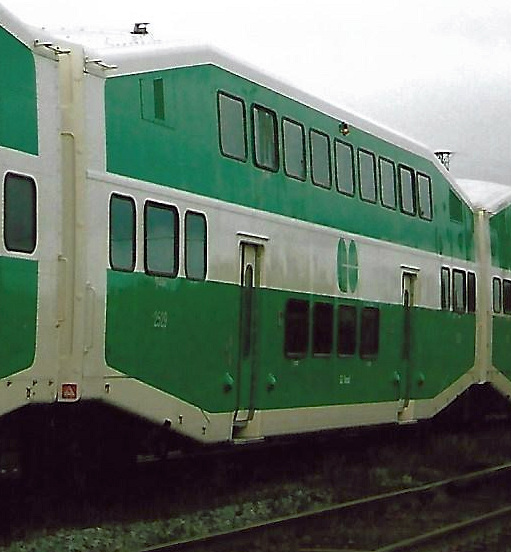

SOLID YELLOW (AMBER)

Illuminated when an emergency brake valve is applied on any car.

Also illuminates on any car or cabcar that has a door key switch enabled to indicate which car has a door control and communication station enabled for use.

©2018 RGBurnet
Click to enlarge in a new window.
