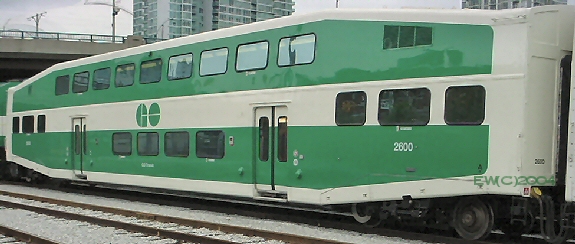

| BI-LEVEL DATA SHEET |
| DATA | BI-LEVEL SERIES VII |
| Builder | Bombardier |
| QUANTITY | 62 |
| ROAD #s | 2600-2609 (2004)
2610-2619 (2005)
2620-2629 (2006)
2630-2641 (2006-07)
2642-2661 (2007-08) |
| Yr Purchased | See above in Road #s |
| Yr Rebuilt | ongoing upgrades
(click Car Roster Details) |
| Weight (lbs) | NYA |
| Height | 15' 11" |
| Width | 9' 10" |
| Length | 85' |
| Seat Capacity | 151 |
| Lot Number | 20-NYA |
| Maximum Safe Speed | 100mph |
| Operating Speed | 84mph |
Average Mileage
per car | NYA |
|
FUNDAMENTAL CAR STATS:
- CAR EXTERNAL:
- . first series with all smooth sided welded panels, non-riveted
- . four windows across bottom level (windows: 9-6-4)
- . one doors insetted
- . larger windows placed in all four doors
- . exterior protruding lights at doorways and light steps when doors opened (but subject to road damage)
- . larger emergency stickers
- CAR INTERNAL:
- . wheelchair accessible washroom on lower level (no longer on mid-level)
- . seats replace mid-level washrrom
- . window added where washroom once was located
- . brighter lighting
- . reflector tape in dark areas and walkway
- . tables and power outlets every second seat set on the intermediate, upper levels
- . door closing warning chime and lights
- . conductor controls on lower level at doorway (not second level station)
- . sliding window where conductor station once located replaced with standard tinted no-slide window
- . new emergency window handle and easier access for emergency exit
- . windows tinted green
|
