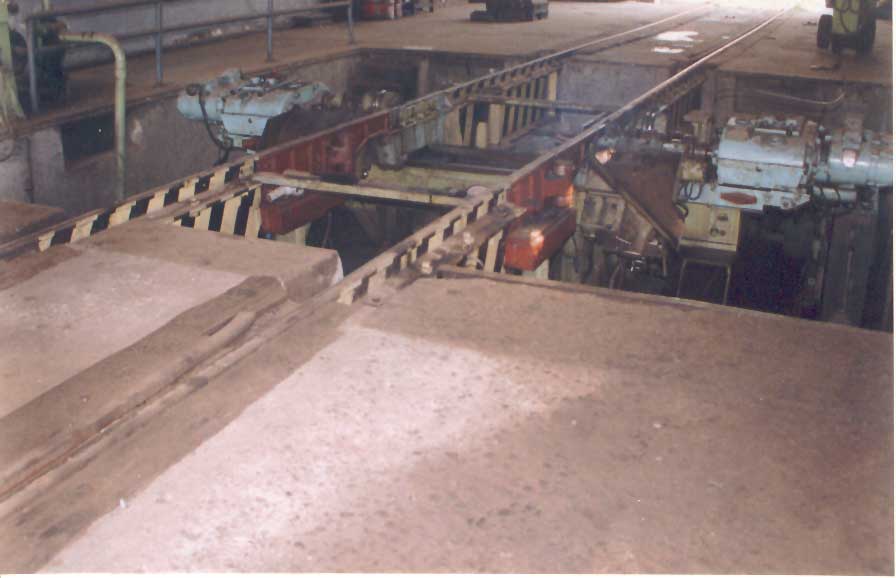

Lathe to turn flat tires.

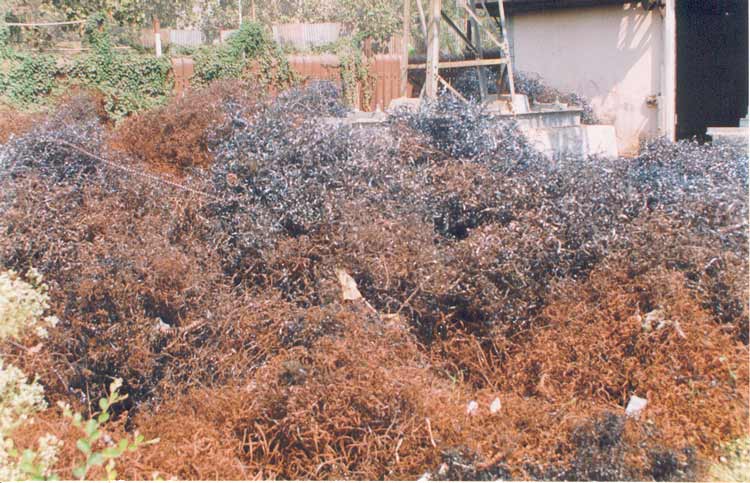

Scrap metal outside the lathe shop.

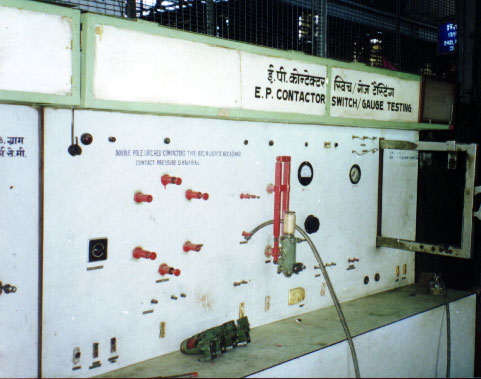

EP (Electro-pneumatic) brake controller testing.

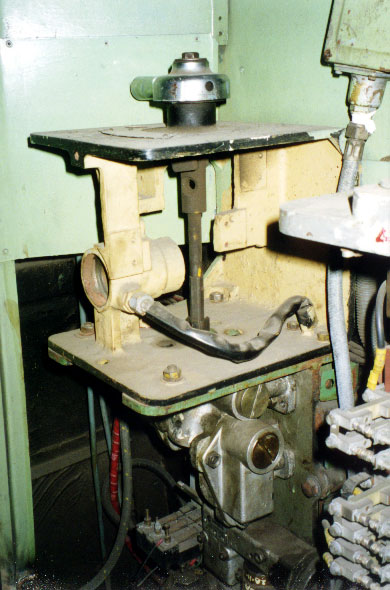

Brake controller being tested.

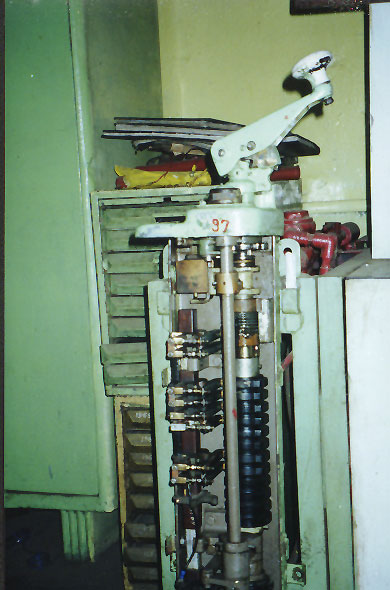

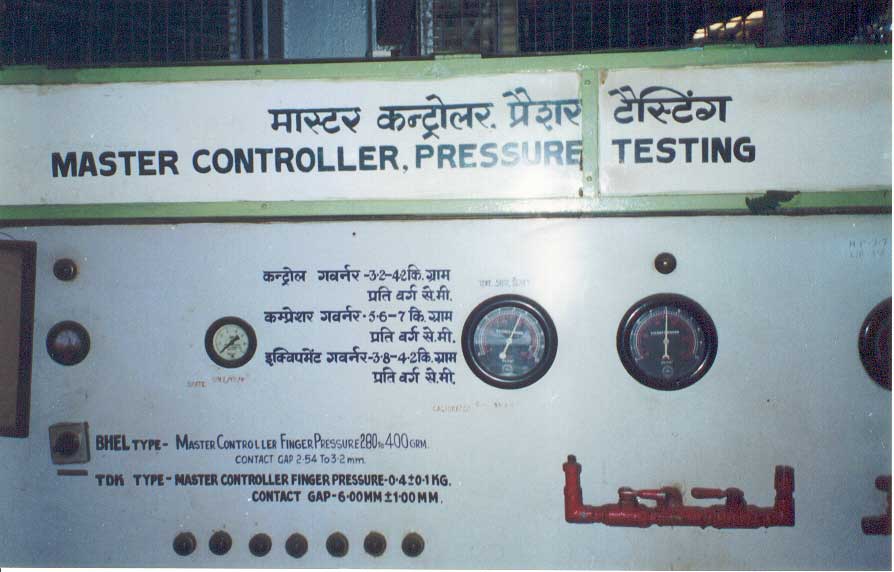

Master controller being tested. Internal contacts and cams can be seen here.
The most common problem reported is a "stiff" master controller that
requires more than normal pressure to keep it depressed.

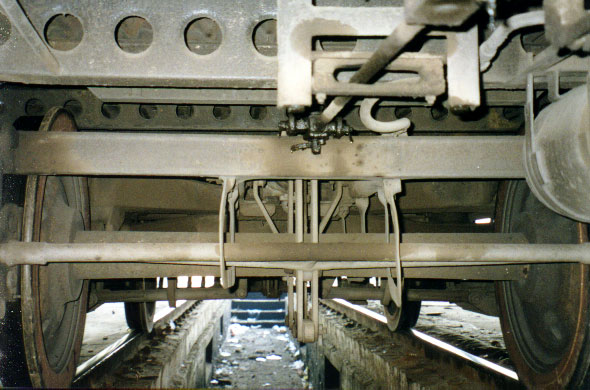

I had an opportunity to see under-carriage. This is a non-driving carriage. At
the center top is a brake arm from brake cylinder (one per no-driving coach). It
operates the arm in lower center horizontal position and is protected by two
safety brackets. The pit is shallow to provide an access to under-carriage in
such a way that it is easy to service equipment while standing in a pit.
It is not a place for someone who is conscious of his white shirt.

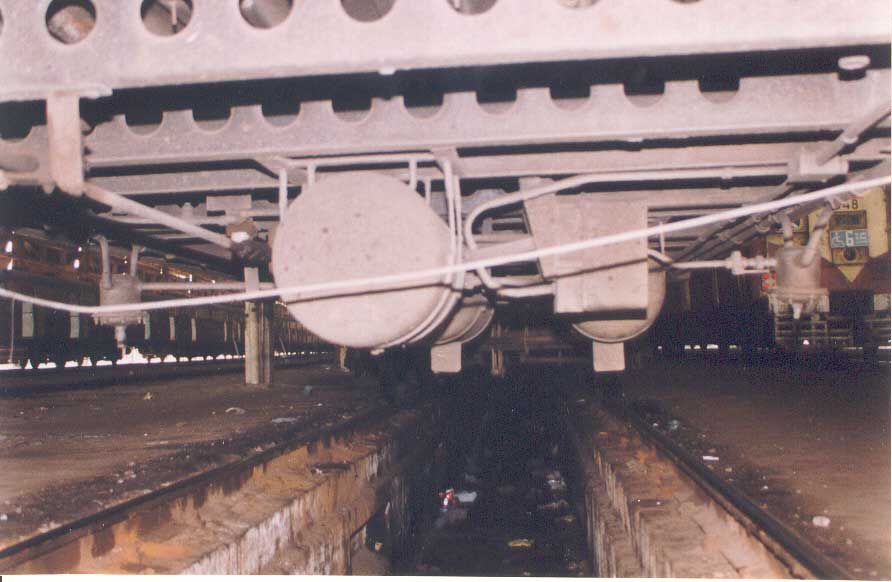

Another view of under-carriage. Brake pipe reservoir and main reservoir can be
seen on sides.

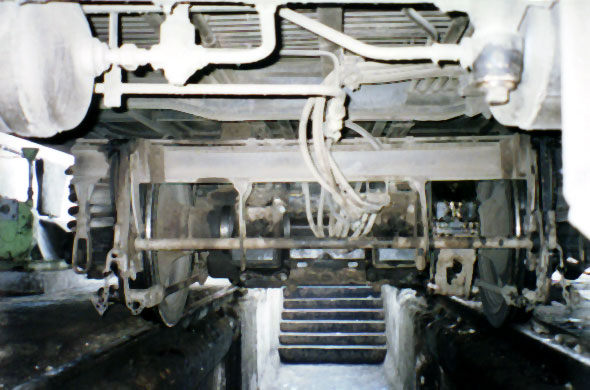

Under-carriage of another non-driving coach.

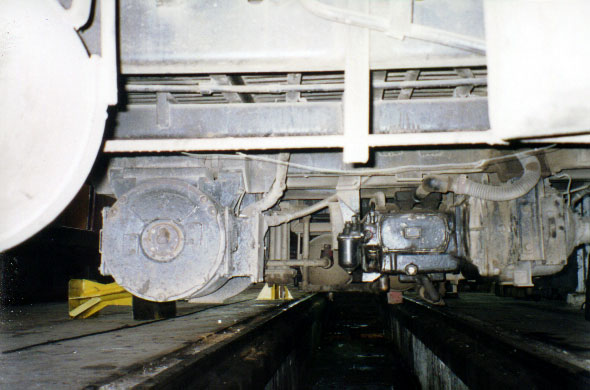

This is an under-carriage of a motor-coach. At left is MG (Motor Generator) set
and air compressor can be seen at right. The intake for air compressor is
located under passenger seats in m/coach. These seats are notorious because travelers
are forced to hear the loud cranking sound whenever it starts. The main
reservoir cylinder can be seen at the center.
