GP16 Paint Information



Paint Schemes received when rebuilt:

• Units 4600 – 4605 when rebuilt into GP16’s received Family Lines Paint.
• Units 4606 – 4644, 4700 – 4801, 4975 - 4977 received Family Lines Paint in Waycross Ga Shops after they where rebuilt into GP16’s in Tampa Fla
• Units 4645, 4802 – 4809, 4978, 4979 Received Seaboard System Paint at Waycross Ga Shops and never wore Family Lines paint as a GP16.



Roster by Paint Schemes

• Family Lines paint :

150 GP16’s received Family Lines Paint. 4600 – 4644, 4700 – 4801 and 4975 – 4977.



• Seaboard System Paint:

17 GP16’s received SBD paint: 4628, 4634, 4645, 4740, 4758, 4760, 4794, 4802, 4803, 4804, 4805, 4806, 4807, 4808, 4809, 4978, and 4979.



• CSX Paint:
39 GP16’s were painted in CSX paint. 1700, 1705, 1711, 1719, 1726, 1727, 1731, 1733, 1740, 1745, 1746, 1748, 1749, 1750, 1753, 1756, 1757, 1759, 1770, 1771, 1778, 1788, 1792, 1794, 1797, 1798, 1799, 1801, 1804, 1816, 1819, 1821, 1822, 1834 1837, 1841, 1842, 1854, and 1860.



Repaints

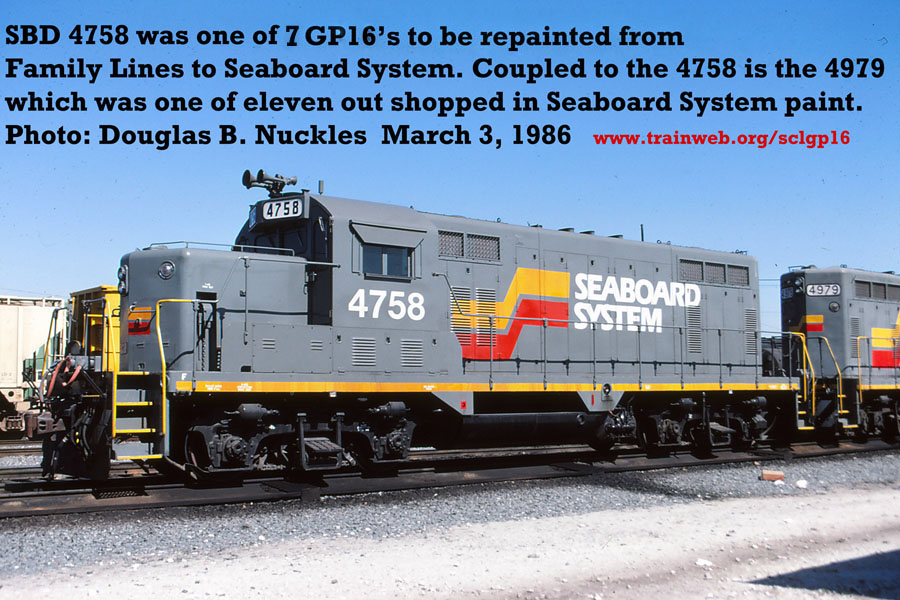

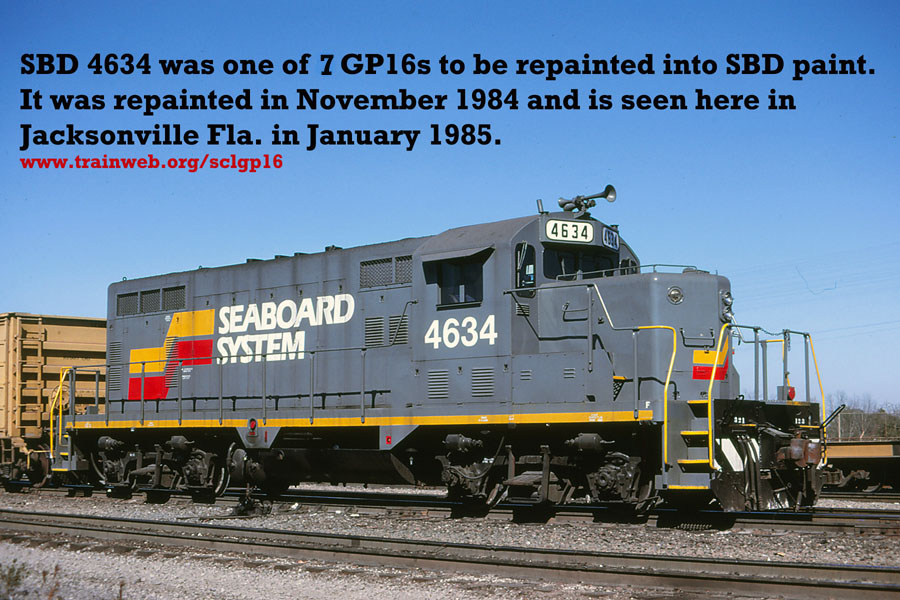

• Seaboard System Paint – 6 GP16’s were repainted into the SBD paint scheme bringing the total number of GP16’s to 17. The 6 repaints were: 4628, 4634, 4740, 4758, 4760, 4794.

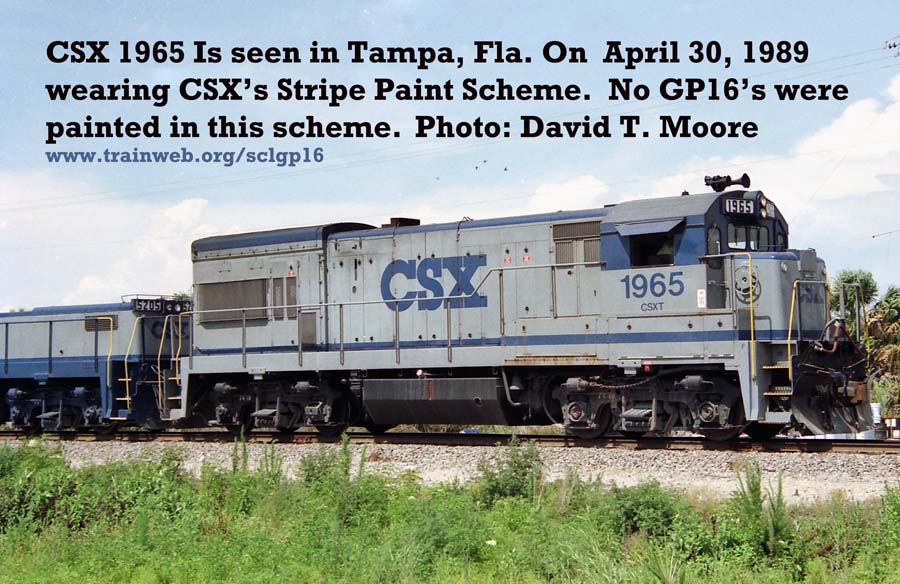

• CSX Stripe Paint Scheme – No GP16’s were painted in this scheme. This scheme was applied from about April 1986 – October 1987. The first applications in April of 1986 included the words Transportation on the long hood. The 5508, a GE B30-7, actually had the word Transportation on the sides of the long hood and nose and rear for a short time. Sample of CSX Stripe Scheme



• CSX Blue Bottom Paint Scheme - There were 13 units painted in this scheme: 1705, 1711, 1733, 1745, 1750, 1753, 1757, 1788, 1798, 1819, 1821, 1834, and 1841. This scheme was applied from about October 1987 to about October 1988.

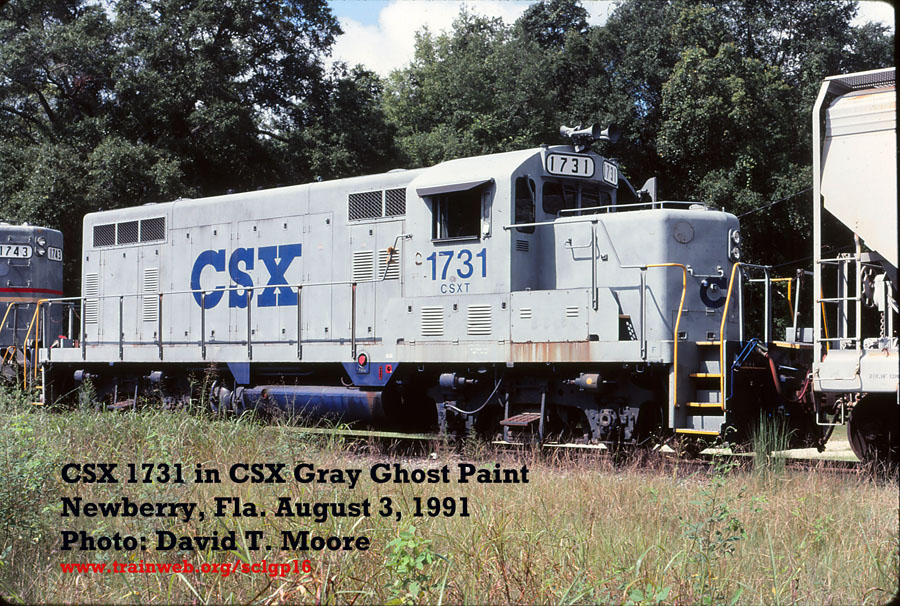

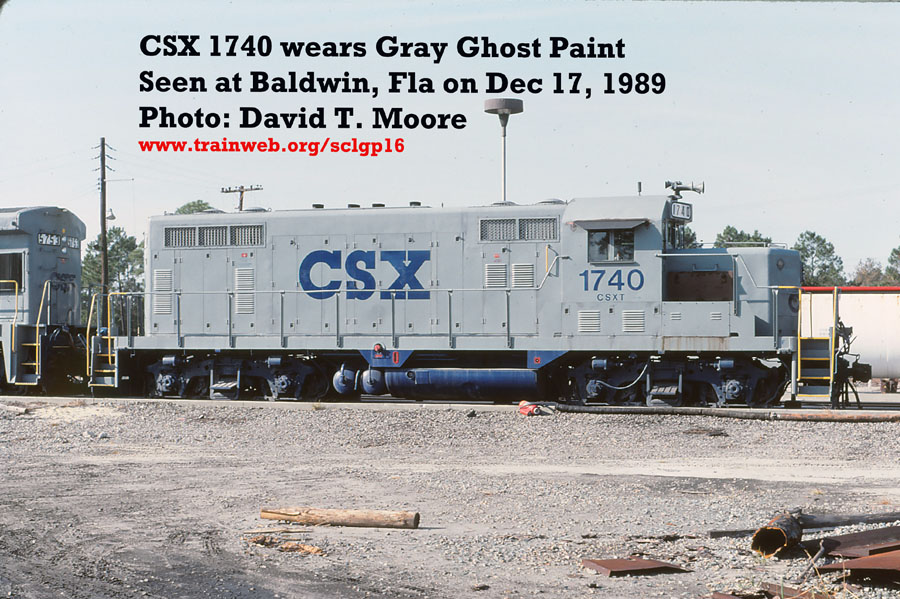

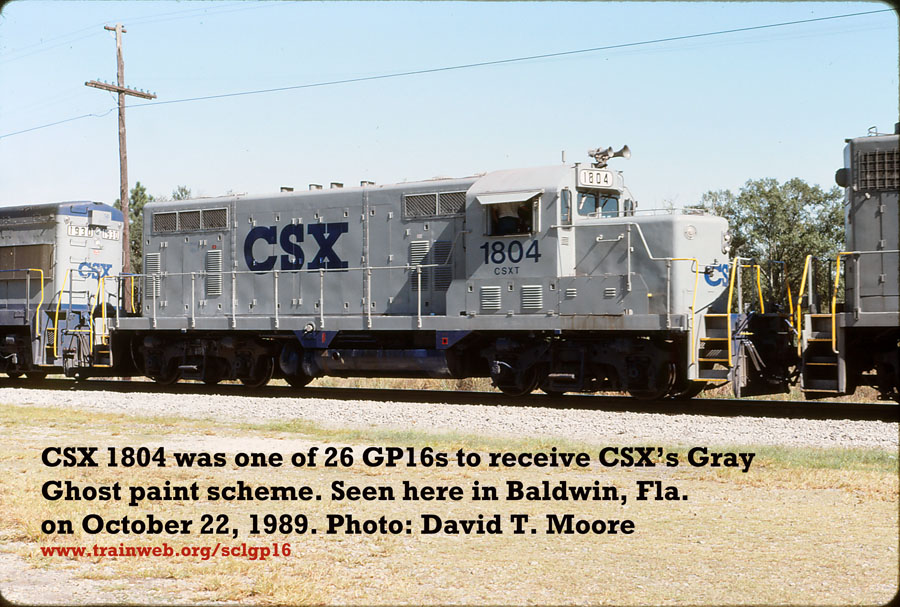

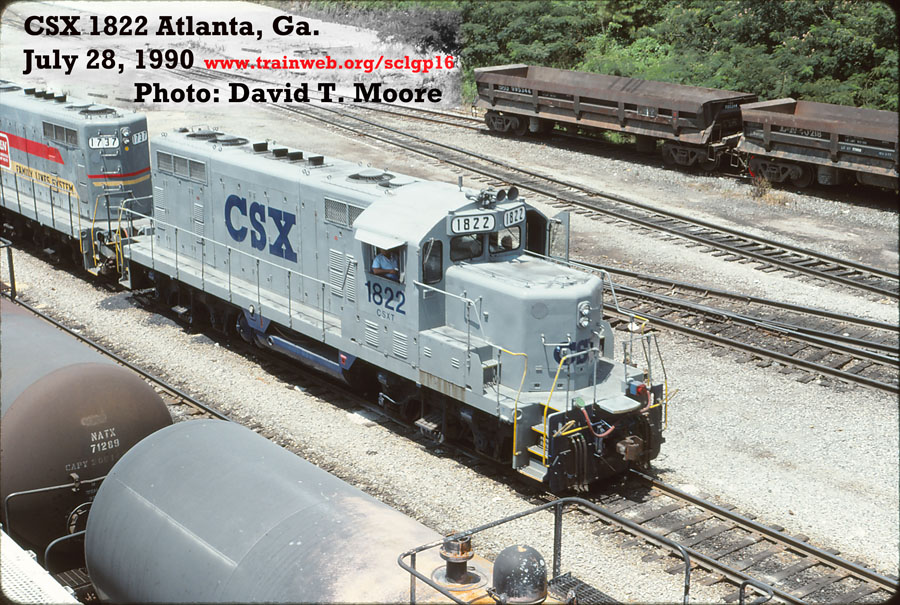

• CSX Gray Ghost Paint Scheme - There were 26 units painted in this scheme: 1700, 1719, 1726, 1727, 1731, 1740, 1746, 1748, 1749, 1756, 1759, 1770, 1771, 1778, 1792, 1794, 1797, 1799, 1801, 1804, 1816, 1822, 1837, 1842, 1854, and 1860. Gray Ghost scheme was used from about October 1988 to September 1989



• CSX YN1 – No GP16’s were painted in this scheme. This scheme was used from September 1989 to March 1990. CSX YN1 Paint Scheme sample

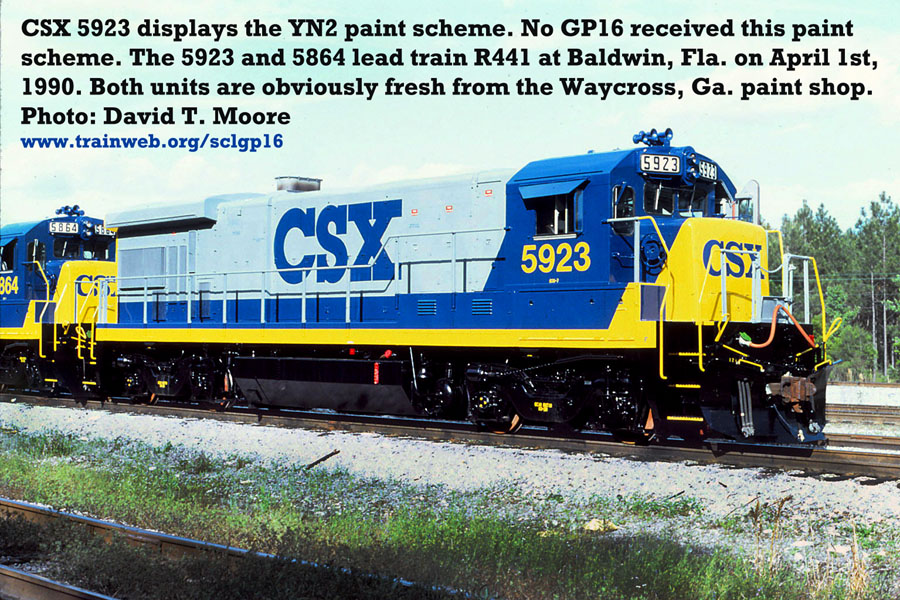

• CSX YN2 – No GP16’s were painted in this scheme.  CSX adopted the YN2 Paint scheme in March 1990.  Some of the first units to receive this scheme were CSX B36-7’s 5864, 5895 and 5923. CSX YN2 Paint sample.
  More info on CSX's paint schemes can be found on the Bull Sheet. Click HERE



Family Lines Paint Date Information

Source of paint dates listed below came from information applied to each individual GP16. Information was collected while I was out track side.



• SCL 4614 painted Family Lines “Ptd A WX 5-79 Imron Gray” triple checked 01/01/1991 in Baldwin Fla. Interesting note is roster shows SCL 4614 built 10/02/1979. This really threw me, but after some digging I discovered that although already rebuilt in 5/79 SCL officially retired the 1044 on 9/25/1979. The 1044 became SCL 4614 officially on 10/02/1979.  Source of built date and retired date was SCL Diesel Data Book dated 01/11/1980.  Earliest photo I have seen was a photo taken June 11, 1979 by Joe Oats, showing the 1044 already converted into a GP16 and painted Family Lines. Photo is in Diesel Era July/August 1994 issue.



• SCL 4617 painted Family Lines “Ptd A WX 12-79 Imron Gray” checked CSX 1717 8/26/1990 in Jacksonville Fla., and again on 12/15/1990 in Baldwin Fla.



• SCL 4621 painted Family Lines “Ptd A WX 5/80 Imron Gray” Checked CSX 1721 on 9/30/1990 in Baldwin Fla.



• SCL 4624 painted Family Lines “Ptd A WX 10/80 Imron Gray” checked CSX 1724 on 9/08/1990 in Baldwin Fla.



• SCL 4629 painted Family Lines “Ptd ? WX 5-81” checked 8/26/1990 in Jacksonville Fla. I could not read if it was Ptd A or C



• SCL 4636 painted Family Lines “Ptd A WX 11/81” checked Fernandina Beach Fla.



• SCL 4637 painted Family Lines “Ptd A WX 12/81 Imron Gray” checked 3/24/1991 Newberry Fla.



• SCL 4643 painted Family Lines “Ptd A WX 6-82 Imron Gray” checked 4/29/1990 in Baldwin Fla as CSX 1743. Checked again 8/03/1991 in Newberry Fla.



• SCL 4644 painted Family Lines “Ptd C WX 7-82 Imron Gray” Checked 6/09/1990 Baldwin Fla., and 9/22/1990 in Baldwin Fla.



• SCL 4701 painted Family Lines “Ptd A WX 10-79 Imron Gray” checked 6/23/1988 as CSX 1747 in Newberry Fla and again 7/15/1990 CSX 1747 Baldwin Fla. Checked again 1/01/1991 Baldwin Fla.



• SCL 4705 painted Family Lines “Ptd A WX 12-79 Imron Gray” checked CSX 1751 on 12/15/1990 in Baldwin Fla.



• SCL 4709 painted Family Lines “Ptd A WX 2-80” checked CSX 1755 1/27/1991 in Newberry Fla. And checked again 6/06/1992 Waycross Ga.



• SCL 4717 painted Family Lines “Ptd A WX 5-80 Imron Gray” checked 9/22/1990 on CSX 1763 at Baldwin Fla.



• SCL 4721 Painted Family Lines “Ptd A WX 6-80 Imron Gray” checked 9/08/1990 on CSX 1767 at Baldwin Fla. By 9/08/1990 CSX had painted the trucks on the 1767 blue.



• SCL 4722 painted Family Lines “Ptd A WX 6-80 Imron Gray” checked 10/28/1990 on CSX 1768 Jacksonville Fla



• SCL 4723 Painted Family Lines “Ptd A WX 6-80” checked 9/08/1990 on CSX 1769 at Jacksonville Fla.



• SCL 4730 pained Family Lines “Ptd A WX 8-80 Imron Gray” checked CSX 1776 7/21/1990 at Baldwin Fla, and 12/23/1990 in Newberry Fla. Also checked on 5/09/1992 at Waycross Ga.



• SCL 4733 painted Family Lines “Ptd A WX 10-80 Imron Gray” checked 5/07/1989 on CSX 1779 Starke Fla. Checked again on 11/04/1990 CSX 1779



• SCL 4735 painted Family Lines “Ptd A WX 10-80 Imron Gray” checked 10/28/1990 CSX 1781 Baldwin Fla. Checked a second time 11/18/1990 Baldwin Fla.



• SCL 4744 painted Family Lines “Ptd A WX 1/81” checked 2/11/1991 in Newberry Fla. Checked paint date on CSX 1790.



• SCL 4756 painted Family Lines “Ptd A WX 4-81” checked 2/11/1991 in Newberry Fla on CSX 1802.



• SCL 4767 painted Family Lines “Ptd A WX 9-81 Imron Gray” checked 11/18/1990 CSX 1813 Baldwin Fla.



• SCL 4771 painted Family Lines “Ptd A WX 10-81 Imron Gray” checked 12/09/1990 CSX 1817



• SCL 4781 painted Family Lines “Ptd A WX 1-82 Imron Gray” checked 11/04/1990 CSX 1827 Baldwin Fla.



• SCL 4785 painted Family Lines “Ptd A WX 3-82 Imron Gray” checked 12/23/1990 in Newberry Fla.



• SCL 4786 painted Family Lines “Ptd WX 3-82 Imron” checked 6/15/1988 CSX 1832 High Springs Fla. I didn’t write down the A or the C commonly found on the Waycross paint date.



• SCL 4787 painted Family Lines “Ptd A WX 3-82 Imron Gray” checked CSX 1833 3/10/1991 Jacksonville Fla.



• SCL 4789 painted Family Lines “Ptd A WX 4-82 Imron Gray” checked 7/15/1990 at Baldwin Fla on CSX 1835.  Checked again on 11/03/1990 CSX 1835 Baldwin Fla.



• SCL 4790 painted Family Lines “Ptd A WX 4-82 Imron Gray” Checked 7/15/1990 at Baldwin Fla.



• SCL 4797 painted Family Lines “Ptd C WX 6-82 Imron Gray” checked CSX 1843 on 12/15/1990 in Baldwin Fla.



• A&WP 4976 painted Family Lines “Ptd A WX 6-81 Imron Gray” Checked 3/29/1990 Newberry Fla.



• WA 4977 painted Family Lines “Ptd A WX 7-81 Imron Gray” Checked 4/21/1990 in Baldwin Fla. Checked again 9/30/1990 Baldwin Fla.

Seaboard System Paint Information – Paint dates checked

• SBD 4628 Painted SBD 3/1985 Imron . Checked 9-13-1992 as CSX 1728 in Gainesville Fla
• SBD 4634 painted SBD 11/84 Imron. Checked 3/31/1991 on CSX 1734 in Newberry Fla.
• SBD 4740 painted SBD 6/1985 Imron paint. Checked 7/22/1990 as CSX 1786 in Baldwin Fla.
• SBD 4760 painted SBD 6/1985 Imron paint. Checked 1/27/1990 as CSX 1806 in Baldwin Fla. Checked again 4/29/1990 in Baldwin Fla. Checked again 1/20/1991 in Starke Fla.
• SBD 4794 painted SBD 12/1984 WX. Checked 7/16/1988 in Newberry Fla on CSX 1840.



CSX Paint Information – Paint dates checked

• CSX 1819 painted CSX BB (Blue Bottom) 2/88 WX. Checked 6/22/1988 Baldwin Fla.



Keys
Ptd = Painted
“A” or “C” = ? Possibly the paint shop or paint booth it was painted in. (Unconfirmed)
Imron = Polyurethane Enamel Paint
