Model  Railroad  Layouts

The images on this page show some of the layouts I have designed with "Right Track Software" (RTS), a free layout design program once offered by Atlas Model Railroad Co.  Most of the layouts are small and basic, and can be built on a standard 4' X 8' sheet of plywood.  They are designed to give new-comers to the hobby a quick and easy way to get started.

.

For whatever reason, "Right Track Software" is no longer available from Atlas.

But you can download versions 5, 7, 8 and 10 below :

Version 5

Version 7

Version 8

Version 10

I am not affiliated with Atlas Model Railroad Company.

I do not offer technical support for this software.

.
Click on the slide-graphic to view an image of the layout, and click on the disk-graphic to download the actual layout file for use with the Right Track software.

.
IMPORTANT  NOTES
All of my layouts are designed using the STANDARD line of track from Atlas.  Atlas also offers a line of track
called "True-Track" which comes with molded-on roadbed, but it is NOT completely compatable with my designs
as some pieces of it has differing physical geometry from the standard line.  This is also true with non-Atlas brands
of track.  So I cannot guarantee that you will be able to build a number of my designs using anything other than the
standard line of track from Atlas.

All layouts are designed with a minimum of 2" between the center of the track and the edge of the table or board.

.
Please use your browsers BACK button to return here after viewing images.

Updated : 09 / 11 / 2012

B A S I C     S E R I E S

LAYOUT  TITLE

SCALE

SIZE


RTS  FILE

COMMENTS

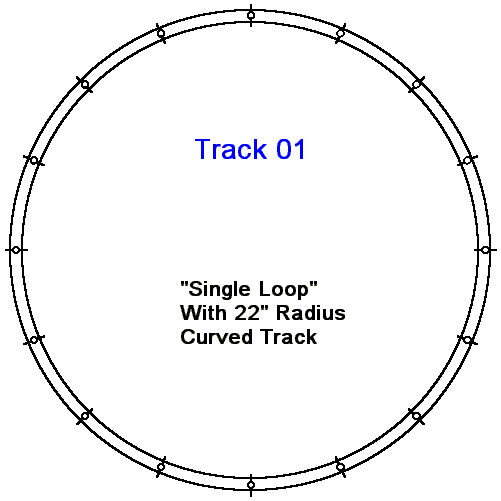

Layout #01

 HO

48" X 48"

This layout makes for a great under-tree set at Christmas

Layout #01b

 HO

48" X 48"

This layout makes for a great under-tree set at Christmas

Layout #01c

 HO

48" X 48"

This layout makes for a great under-tree set at Christmas

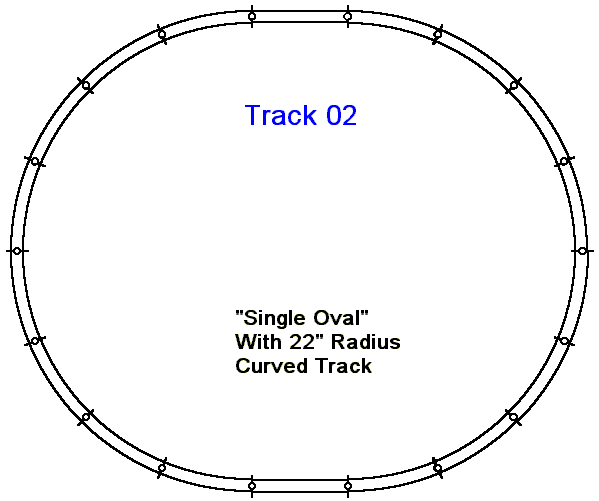

Layout #02

 HO

48" X 57"

This  single-oval layout makes for a great under-tree set at Christmas

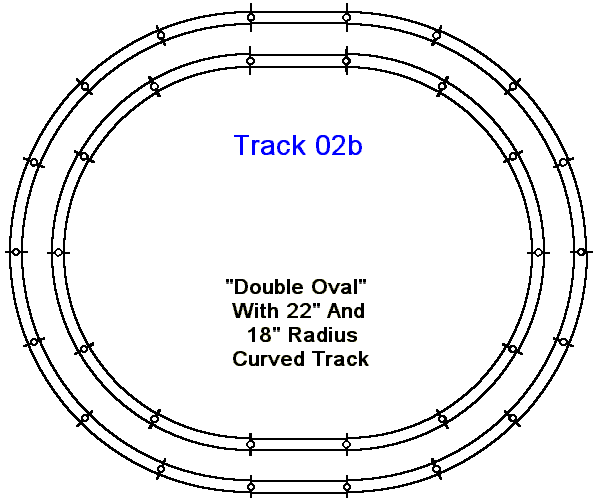

Layout #02b

 HO

48" X 57"

This double-oval layout makes for a great under-tree set at Christmas

Layout #02c

 HO

48" X 57"

This triple-oval layout makes for a great under-tree set at Christmas

Layout #02d, 2g, 2j, 2m

 HO

48" X 66"
48" X 75"
48" X 84"
48" X 93"

n/a

These single-oval layouts are similar to layout #02, but each one extends the
length of the prior layout by one section of straight track consecutively
(2d has two straight sections per side, 2g has three straight sections per side, etc, etc.)

Layout #02e, 2h, 2k, 2n

 HO

48" X 66"
48" X 75"
48" X 84"
48" X 93"

n/a

These double-oval  layouts are similar to layout #02b, but each one extends the
length of the prior layout by one section of straight track consecutively
(2e has two straight sections per side, 2h has three straight sections per side, etc, etc.)

Layout #02f, 2i, 2l, 2o

 HO

48" X 66"
48" X 75"
48" X 84"
48" X 93"

n/a

These triple-oval  layouts are similar to layout #02c, but each one extends the
length of the layout by one section of straight track consecutively
(2f has two straight sections per side, 2i has three straight sections per side, etc, etc.)

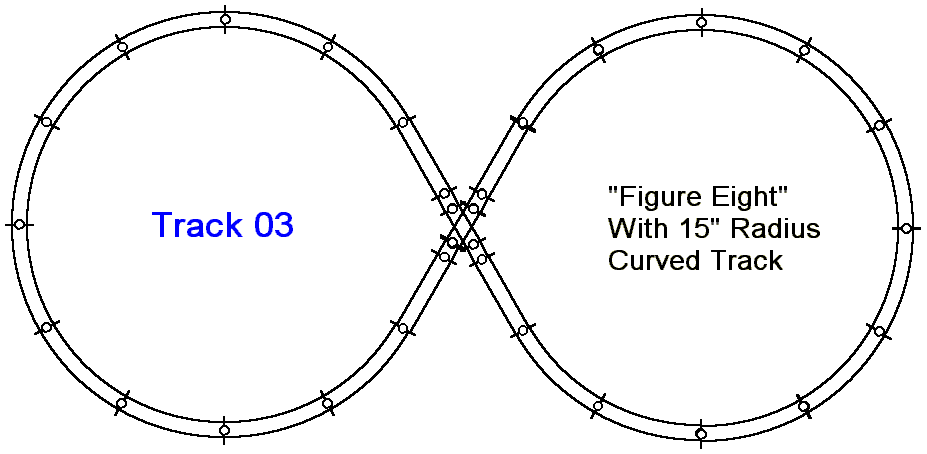

Layout #03

 HO

34" X 68.5"

'Figure-8' with 15" radius curves and 60° crossing, suited for small, short locomotives and cars

Layout #03b

 HO

40" X 81.5"

'Figure-8' with 18 "radius curves and 60° crossing, suited for small to medium sized locomotives and cars

Layout #03c

 HO

48" X 95"

'Figure-8' with 22" radius curves and 45° crossing

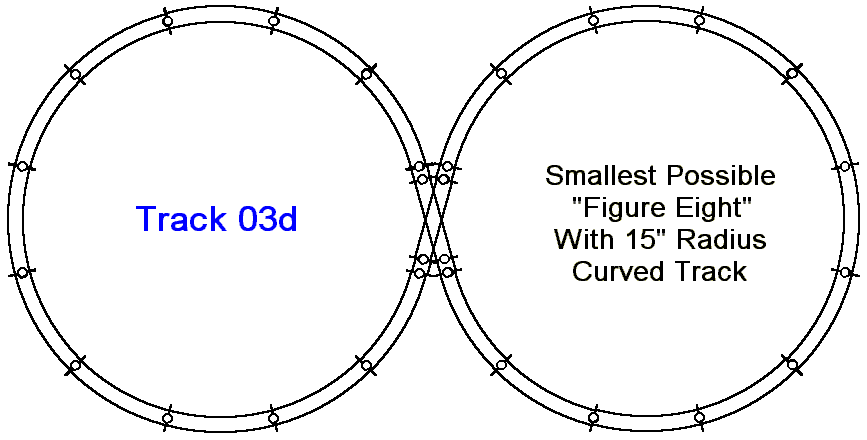

Layout #03d

 HO

34" X 65"

Smallest possible 'Figure-8' with 15" radius curves and 30° crossing, suited for small, short locomotives and cars

Layout #03e

 HO

48" X 108"

'Figure-8' with 22" radius curves and 90° crossing

Updated : 09 / 11 / 2012

S T A N D A R D     S E R I E S

LAYOUT  TITLE

SCALE

SIZE


RTS  FILE

COMMENTS

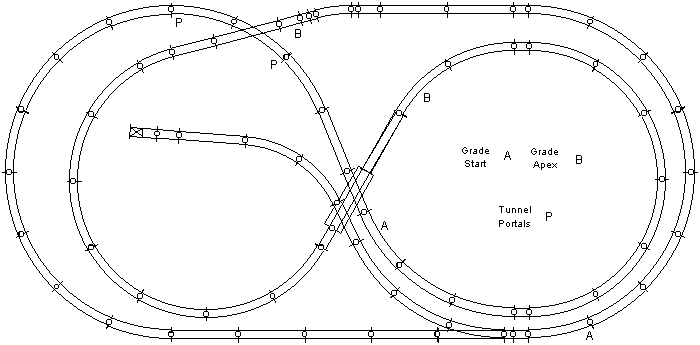

Layout #04B

 HO

48" X 96"

-----

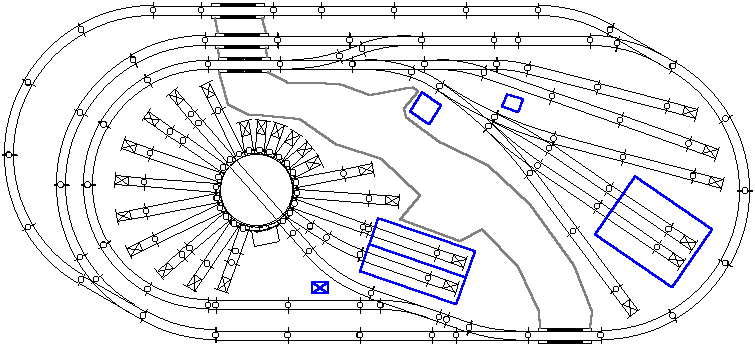

Layout #05b

 HO

48" X 96"

-----

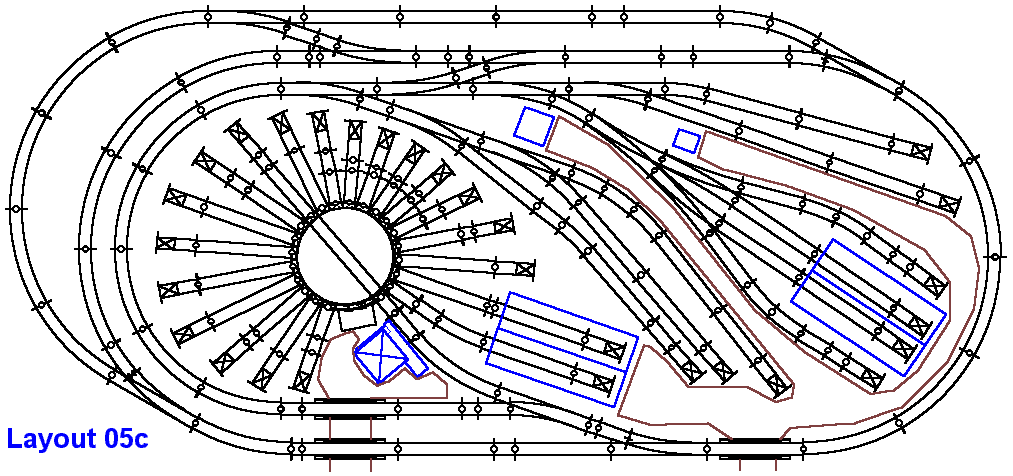

Layout #05c

 HO

48" X 96"

-----

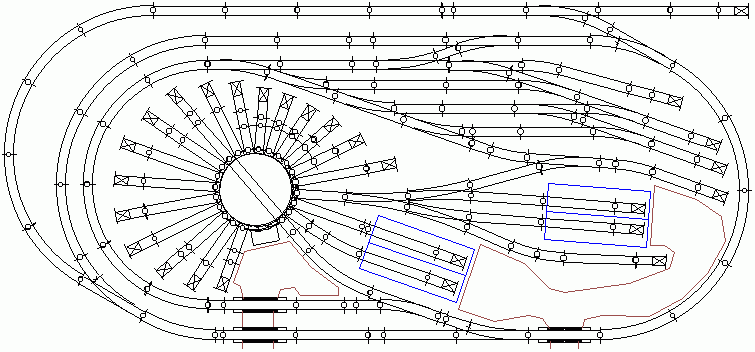

Layout #05-EX

 HO

48" X 96"

Shown with colors to represent
roads and other landmarks

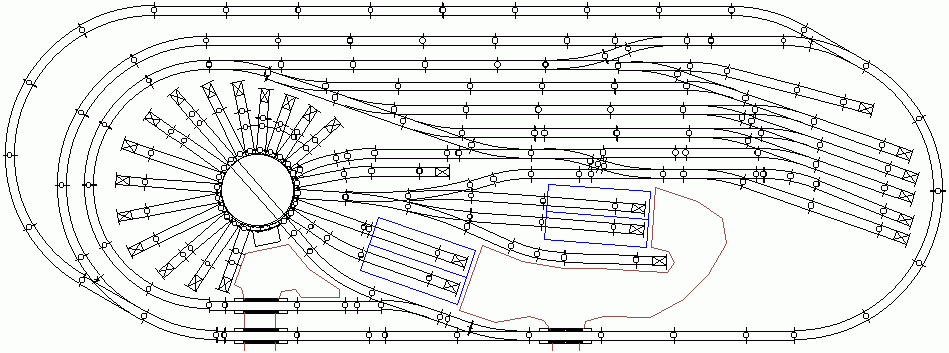

Layout #05-EX+

 HO

48" X 120"

-----

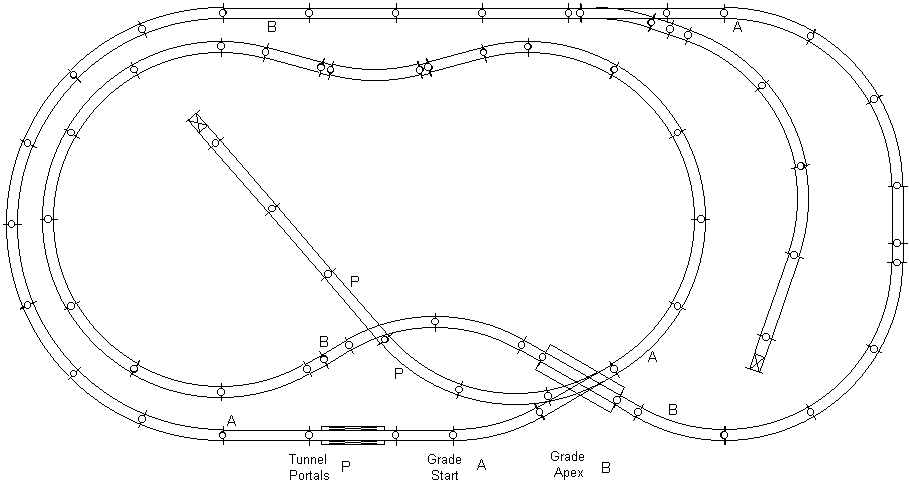

Layout #08C

 HO

48" X 96"

-----

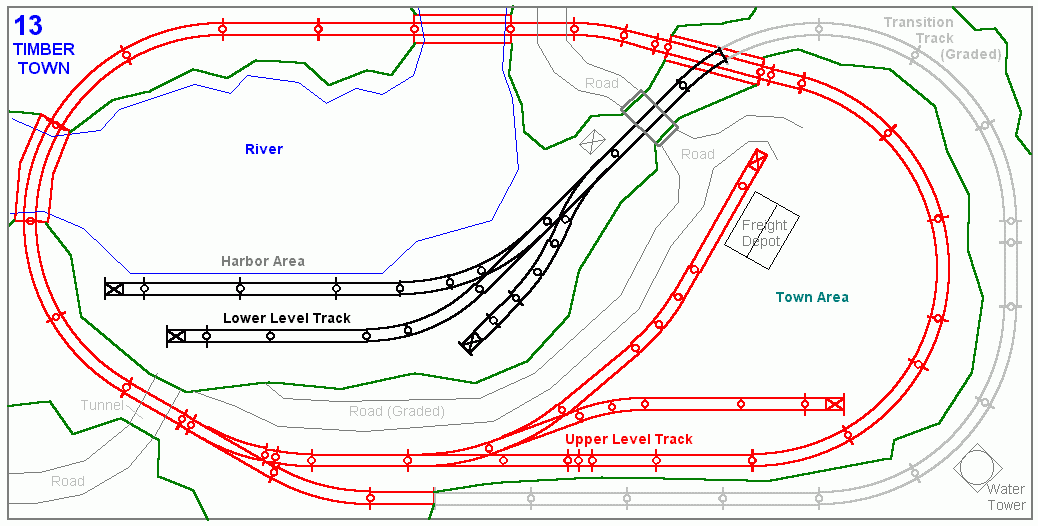

Layout #13

 HO

48" X 96"

-----

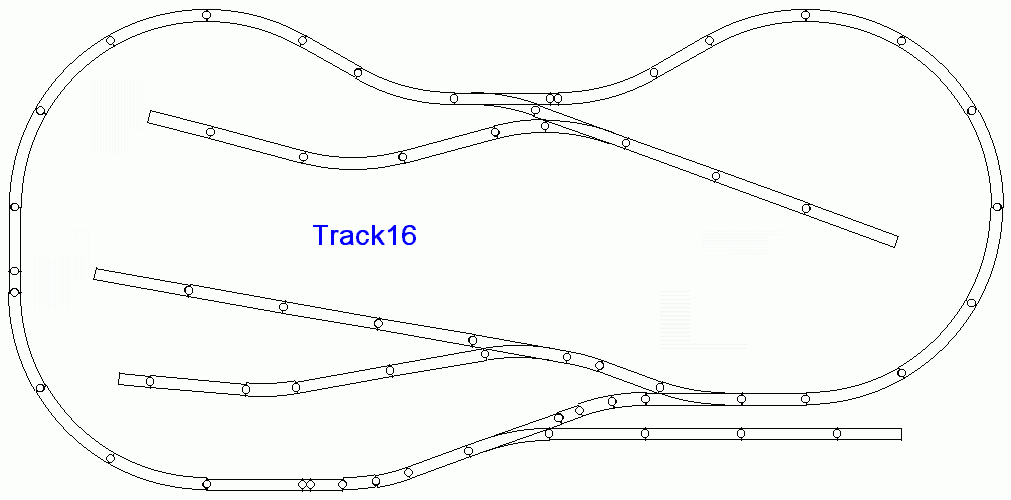

Layout #16

 HO

48" X 96"

-----

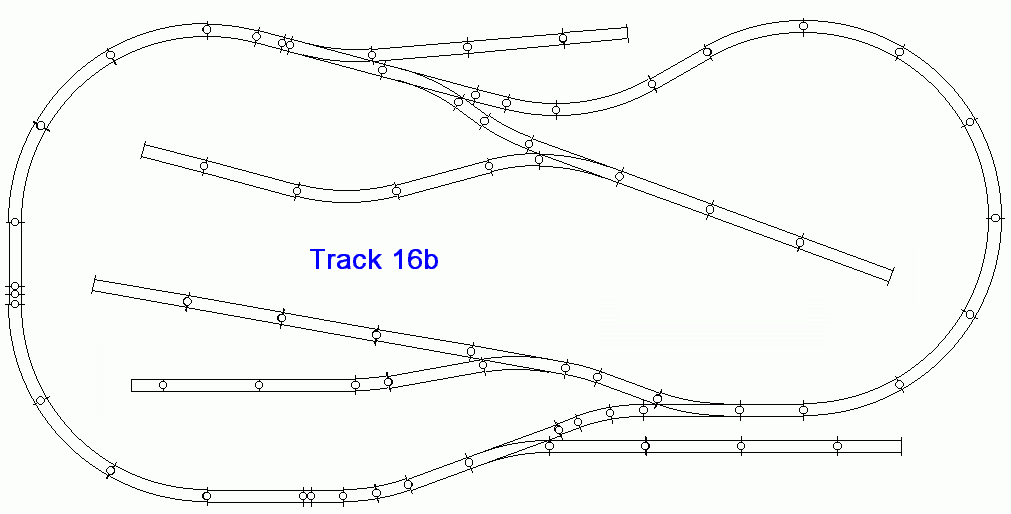

Layout #16B

 HO

48" X 96"

-----

Layout #16C

 HO

48" X 96"

-----

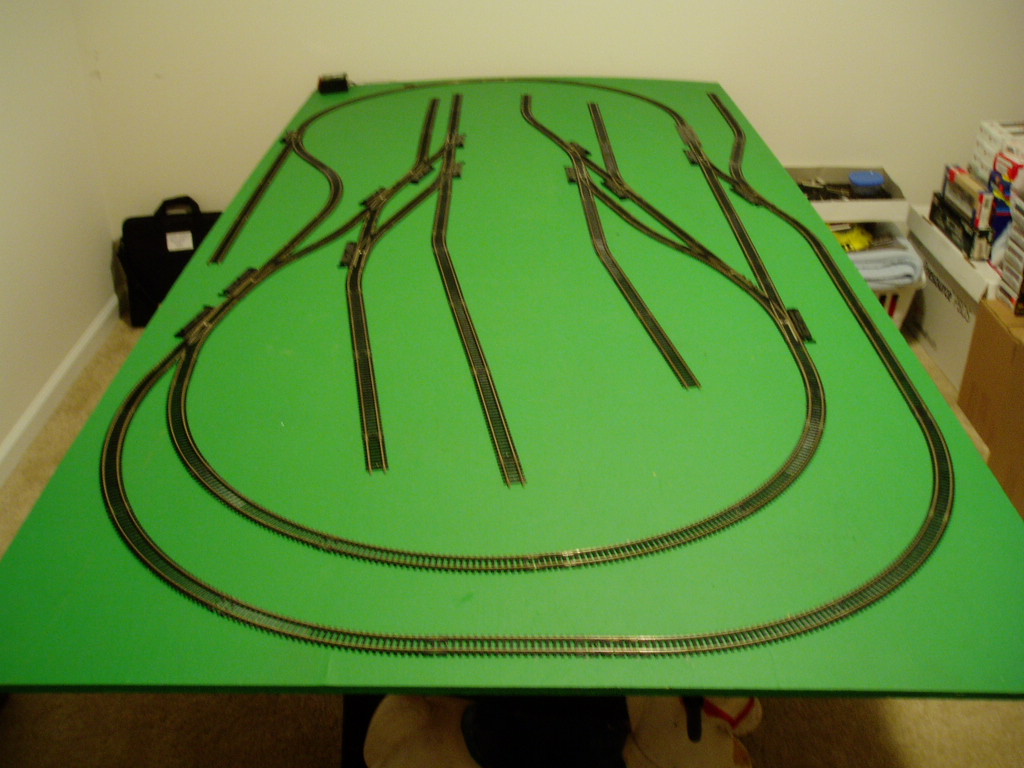

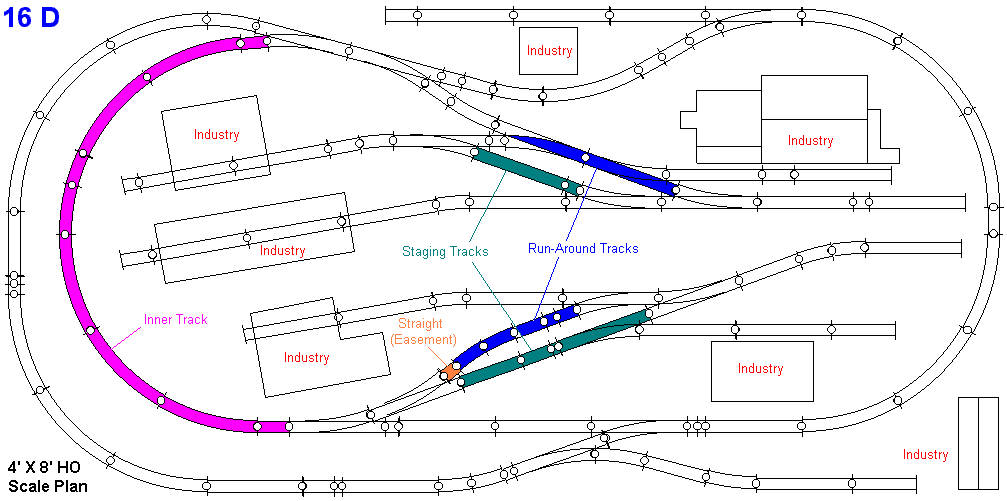

Layout #16D

 HO

48" X 96"



Layout #16E

 HO

48" X 96"

-----

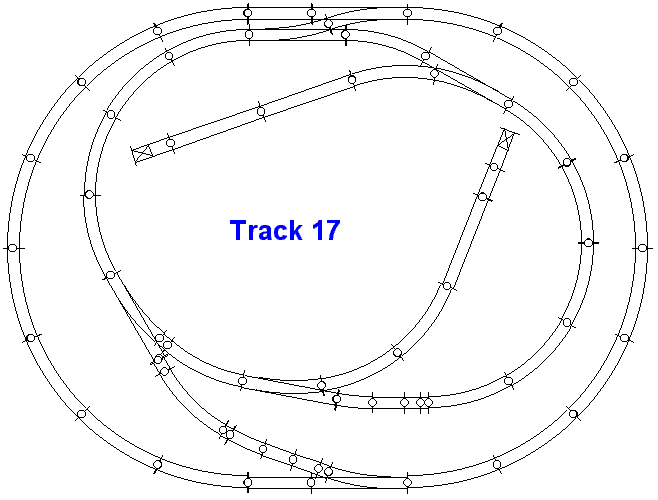

Layout #17

 HO

48" X 63"

This layout is suited only for small,
short locomotives and freight cars

Layout #20

 HO

48" X 96"

-----

.

Updated : 09 / 11 / 2012

U P B E A T     S E R I E S

LAYOUT  TITLE

SCALE

SIZE


RTS  FILE

COMMENTS

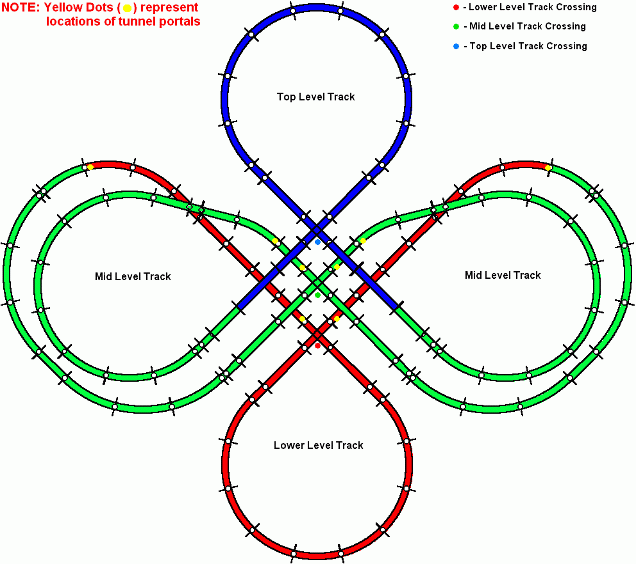

Insane Mainline
(Tri-Peaks)

HO



Through, up, around and over three mountains

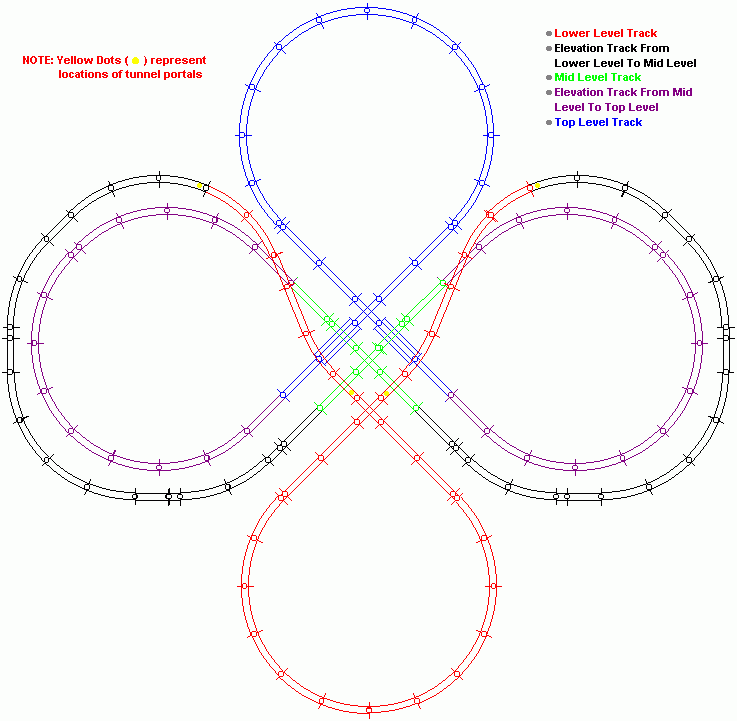

Insane Mainline With All 22" Radius Curves
(Tri-Peaks 22)

HO



Through, up, around and over three mountains with all 22" radius track

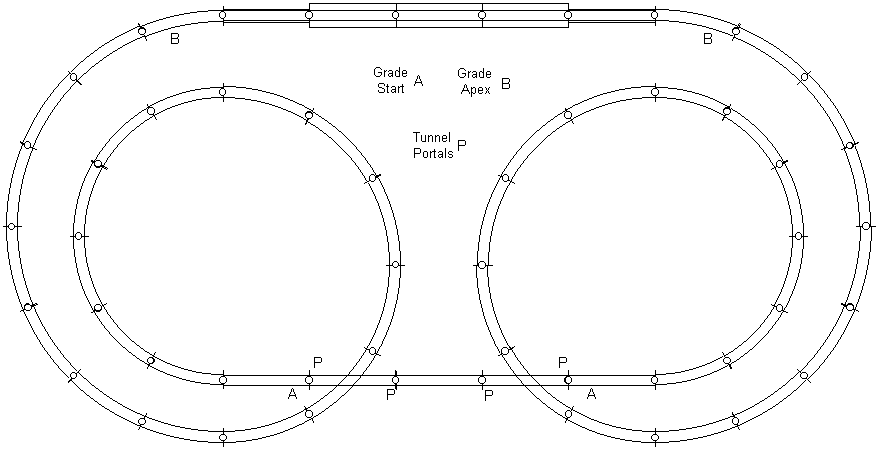

Twin Peaks (10)

HO



Through, up, around and over two mountains

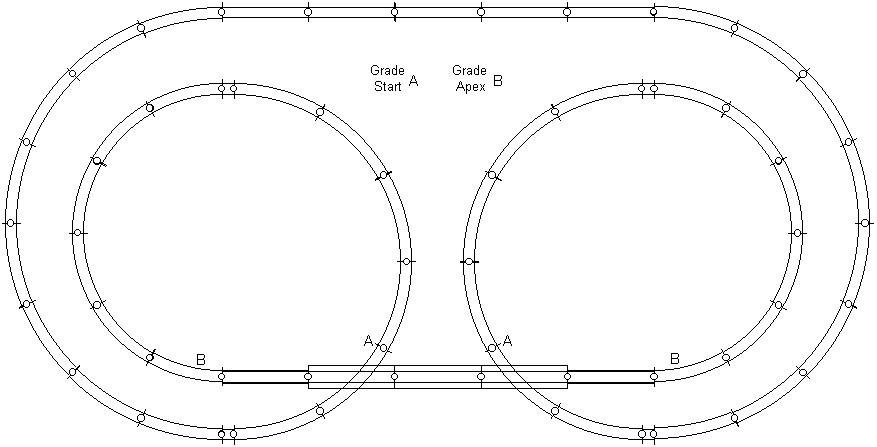

Twin Peaks B (10b)

HO



Around, up and over two mountains

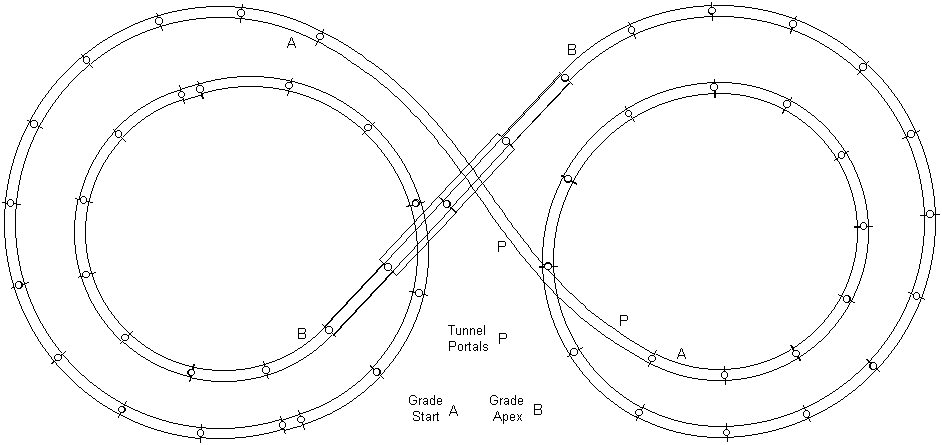

Twin Peaks C (10c)

HO



Through, up, around and over two mountains with a twist

Twin Peaks C2 With All Snap Track (no flex) (10c2)

HO



Through, up, around and over two mountains with a twist using all sectional track (no flex track)

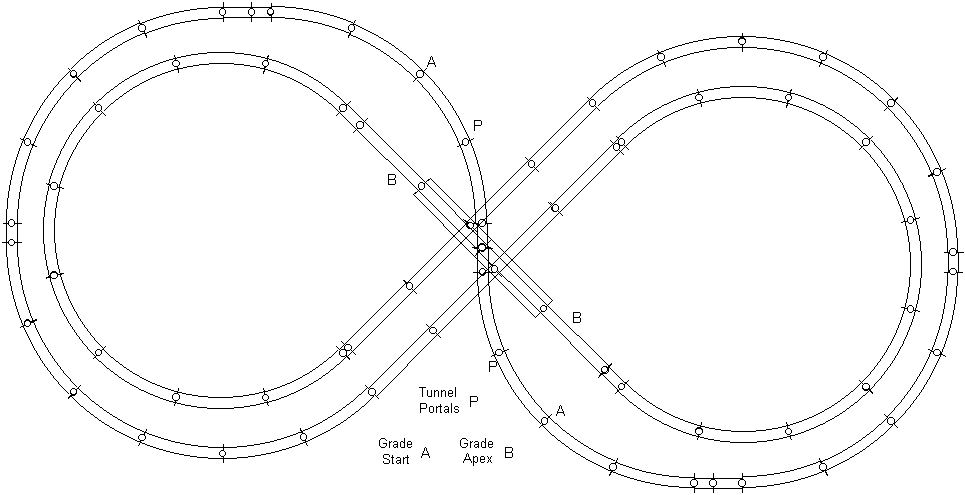

Twin Peaks D (10d)

HO



Through, up, around, under, up again, around again, over and back down two connected mountains

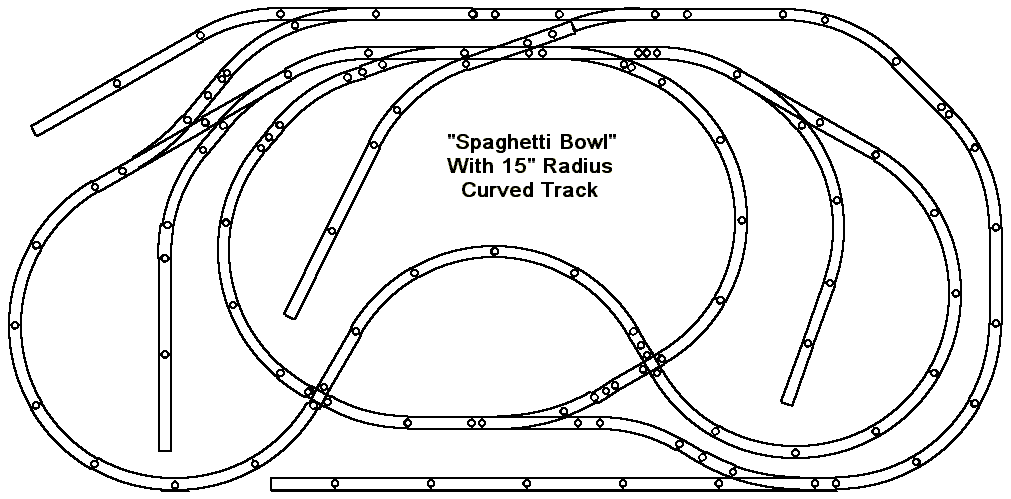

Spaghetti Bowl (11)

HO



This layout is suited only for small, short locomotives and freight cars

..

.
