 Tomytec Power Chassis Dimensions


Tomytec and Other N-Gauge Power Chassis Dimensions

by R. D. Kerr
(Revised January 4, 2022)

This is a listing of Tomytec and other power chassis. They are useful for powering not only the rolling stock for which they were intended, but other trolleys, trams, railcars and various "critters" that are scratchbuilt or sold as shells. Their various basic features and dimensions are provided to aid modelers in determining the most suitable power chassis for their needs. For the Tomytec power chassis, I have gone through the laborious process of converting actual millimeter dimensions to scale feet and inches in 1:160, 1:150 and 1:148 scales. Chassis that I have measured myself using digital calipers, or others have measured for me, include TM-01, TM-02, TM-03, TM-04, KD-25, TM-05, TM-07, TM-10, TM-11, TM-19, TM-20, TM-21, TM-22, TM-LRT01, TM-LRT02, TM-LRT03, TM-LRT04, TM-TR01, TM-TR02, TM-TR04 and TM-TR06. If you have additions or corrections, I can be contacted on the JNS Forum (brill27mcb). Thanks!


TOMYTEC

Tomytec power chassis are made to add power to various Tomytec Tetsudou "Railway Collection" series static display cars. Chassis are produced in limited runs, as needed for new car production runs. They are not kept in continuous production or stock. Tomytec uses nominal metric prototype chassis length classes and a letter code for model truck/bogie axle center spacing: A = 14 mm, B = 16 mm, C = 12 mm and D = 15.4 mm. At times designs are revised and receive an "R" suffix.

EARLY REGULAR CHASSIS

TM-03 chassis shows the general arangement for TM-01, TM-03, TM-02, TM-04 and KD-25, the latter three being longer behind the motor (to the right). A hollowed-out weight snaps on over the brass flywheel to increase tractive effort.
TOMYTEC TM-01
TOMYTEC TM-03
12m A (nominal 12 meter chassis with axle spacing "A" (14 mm))
Features: Total
Axles

4
Power
Axles

2
Traction
Tires

1
Fly-
wheels

1

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

70.4
36' 11"
34' 8"
34' 2"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

14.4
7' 7"
7' 1"
7' 0"
Truck
Centers

40
21' 0"
19' 8"
19' 5"
Axle
Centers

14
7' 4"
6' 11"
6' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: TM-01 has blackened wheels instead of silver wheels.
Sideframes: Brill 27MCB, Baldwin MCB curved and straight equalizer beams.
Advertised minimum radius: Super Mini (103 mm / 4 inches).

TOMYTEC TM-02
TOMYTEC TM-04
KODANSHA KD-25
15m A (nominal 15 meter chassis with axle spacing "A" (14 mm))
Features: Total
Axles

4
Power
Axles

2
Traction
Tires

1
Fly-
wheels

1

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

92.4
48' 6"
45' 6"
44' 10"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

14.1
7' 5"
6' 11"
6' 10"
Truck
Centers

60
31' 6"
29' 6"
29' 2"
Axle
Centers

14
7' 4"
6' 11"
6' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: TM-02 has blackened wheels instead of silver wheels.
TM-04 was also sold as Kodansha KD-25.
Sideframes: Brill 27MCB, Baldwin MCB curved and straight equalizer beams.
Advertised minimum radius: Super Mini (103 mm / 4 inches).


REGULAR CHASSIS

TM-10 chassis, showing very generally the arangement for TM-05 through TM-18,
as well as TM-23 and TM-25.
TOMYTEC TM-05/05R
TOMYTEC TM-07/07R
17m (nom. 17 meter chassis, TM-05/05R have axle spacing
"A" (14 mm), TM-07/07R have axle spacing "B" (16 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2
Chassis
Gray (TM-05)
Black (TM-07)
Sideframes
(TM-05)

Gray
Sideframes
(TM-07)

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

104.2
54' 8"
51' 3"
50' 7"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

73.4
38' 6"
36' 1"
35' 8"
Axle Ctrs.
(TM-05)

14
7' 4"
6' 11"
6' 10"
Axle Ctrs.
(TM-07)

16
8' 5"
7' 10"
7' 9"
Wheel
Diameter

5.6
35"
33"
33"
Notes: TM-05 sideframes: FS17, 2 MCB-style with curved and straight equalizer beams.
TM-07 sideframes: DT10, DT-11 and DT12 (MCB-style)
TM-07R has 6.0 mm diameter wheels instead of 5.6 mm.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-06/06R 18m A (nominal 18 meter chassis with axle spacing "A" (14 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Gray
Side-
frames

Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

110
57' 9"
54' 2"
53' 5"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

80
42' 0"
39' 4"
38' 10"
Axle
Centers

14
7' 4"
6' 11"
6' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Sideframes: TS804, FS510 and Alstom.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-08/8R
TOMYTEC TM-09
20m (nom. 20 meter chassis, TM-08/08R have axle spacing
"A" (14 mm), TM-09 has axle spacing "B" (16mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2
Chassis
Gray (TM-08)
Black (TM-09)
Sideframes
(TM-08)

Gray
Sideframes
(TM-09)

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

120
63' 0"
59' 1"
58' 3"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

90
47' 3"
44' 3"
43' 8"
Axle Ctrs.
(TM-08)

14
7' 4"
6' 11"
6' 10"
Axle Ctrs.
(TM-09)

16
8' 5"
7' 10"
7' 9"
Wheel
Diameter

5.6
35"
33"
33"
Notes: TM-08 sideframes: DT21, FS372 and FS345.
TM-09 sideframes: DT17, DT13 and DT12.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-10/10R 16m A (nominal 16 meter chassis with axle spacing "A" (14 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Black/Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

96
50' 5"
47' 3"
46' 7"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

66
34' 8"
32' 6"
32' 1"
Axle
Centers

14
7' 4"
6' 11"
6' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Black sideframes: Brill 27MCB, Baldwin MCB curved and straight equalizer.
Gray sideframes: FS359, KH22, MCB-style curved equalizer, Alstom and FS510.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-11/11R 16m C (nominal 16 meter chassis with axle spacing "C" (12 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

97.5
51' 2"
48' 0"
47' 4"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

70
36' 9"
34' 5"
34' 0"
Axle
Centers

12
6' 4"
5' 11"
5' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Sideframes: TR26, FU34 and Brill 27E.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-12/12R
TOMYTEC TM-13/13R
19m (nom. 19 meter chassis, TM-12/12R have axle spacing
"A" (14 mm), TM-13/13R have axle spacing "B" (16mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Sideframes
(TM-12)

Black/Gray
Sideframes
(TM-13)

Black/Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

114
59' 10"
56' 1"
55' 4"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

84
44' 1"
41' 4"
40' 9"
Axle Ctrs.
(TM-12)

14
7' 4"
6' 11"
6' 10"
Axle Ctrs.
(TM-13)

16
8' 5"
7' 10"
7' 9"
Wheel
Diameter

5.6
35"
33"
33"
Notes: TM-12 sideframes: FS345, FS369 and FS311 (all in both colors).
TM-13 sideframes: FS103 (black), KS33 (black) and FS107 (gray).
TM-13R has 6.0 mm diameter wheels instead of 5.6 mm.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-14 20m A2 (nominal 20 meter chassis with axle spacing "A2" (14 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

122
64' 1"
60' 0"
59' 3"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

93
48' 10"
45' 9"
45' 2"
Axle
Centers

14
7' 4"
6' 11"
6' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Sideframes: DT21, DT32 and TS316.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-15 20m A3 (nominal 20 meter chassis with axle spacing "A3" (14 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

124
65' 1"
61' 0"
60' 3"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

91
47' 9"
44' 9"
44' 2"
Axle
Centers

14
7' 4"
6' 11"
6' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Sideframes: DT19, DT22 and TR29.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-16 20.5m A (nominal 20.5 meter chassis with axle spacing "A" (14 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

127
66' 8"
62' 6"
61' 8"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

95
49' 10"
46' 9"
46' 2"
Axle
Centers

14
7' 4"
6' 11"
6' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Sideframes: DT19, DT22 and DT31.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-17 20m B2 (nominal 20 meter chassis with axle spacing "B2" (16 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

119
62' 6"
58' 7"
57' 9"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

90
47' 3"
44' 3"
43' 8"
Axle
Centers

16
8' 5"
7' 10"
7' 9"
Wheel
Diameter

6.0
38"
35"
35"
Notes: Sideframes: DT12, DT13 and DT17.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-18 20m D (nominal 20 meter chassis with axle spacing "D" (15.4 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Black/Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

123
64' 7"
60' 6"
59' 9"
Chassis
Width

15.6
8' 2"
7' 8"
7' 7"
Height
In Body

12
6' 4"
5' 11"
5' 10"
Truck
Centers

93
48' 10"
45' 9"
45' 2"
Axle
Centers

15.4
8' 1"
7' 7"
7' 6"
Wheel
Diameter

6.0
38"
35"
35"
Notes: Sideframes: DT33 (both black and gray)
Advertised minimum radius: Mini (140 mm / 5.5 inches).


NARROWER REGULAR CHASSIS

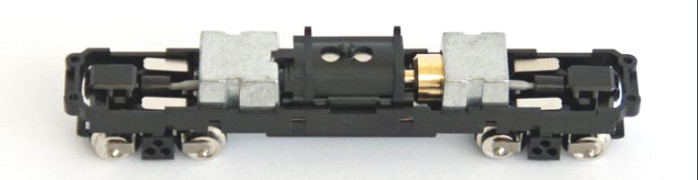

TM-19 chassis, showing the general arangement of the narrow-chassis TM-19 through TM-22.
The wider motor dimension is oriented vertically. The small nibs on the motor's top can be cut off to fit chassis inside low body shells.
TOMYTEC TM-19
TOMYTEC TM-20
15m (nom. 15 meter chassis, TM-19 has axle spacing
"A2" (14 mm), TM-20 has axle spacing "C" (12 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Sideframes
(TM-19)

Black
Sideframes
(TM-20)

Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

89
46' 9"
43' 10"
43' 3"
Chassis
Width

13.4
7' 0"
6' 7"
6' 6"
Height
In Body

13
6' 10"
6' 5"
6' 4"
Truck
Centers

60
31' 6"
29' 6"
29' 2"
Axle Ctrs.
(TM-19)

14
7' 4"
6' 11"
6' 10"
Axle Ctrs.
(TM-20)

12
6' 4"
5' 11"
5' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: TM-19 sideframes: Baldwin MCB straight equalizer beam and Brill 27MCB.
TM-20 sideframes: FU503, FU34 and Brill 27E.
Advertised minimum radius: Super Mini (103 mm / 4 inches).

TOMYTEC TM-21
TOMYTEC TM-22
14m (nom. 14 meter chassis, TM-21 has axle spacing
"A" (14 mm), TM-22 has axle spacing "C" (12 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

86
45' 2"
42' 4"
41' 9"
Chassis
Width

13.4
7' 0"
6' 7"
6' 6"
Height
In Body

13
6' 10"
6' 5"
6' 4"
Truck
Centers

56.6
29' 9"
27' 10"
27' 6"
Axle Ctrs.
(TM-21)

14
7' 4"
6' 11"
6' 10"
Axle Ctrs.
(TM-22)

12
6' 4"
5' 11"
5' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: TM-21 sideframes: Brill 27MCB, Baldwin MCB curved and straight equalizer.
TM-22 sideframes: TS110, TS330 and Brill 27E.
Advertised minimum radius: Super Mini (103 mm / 4 inches).


VARIOUS REGULAR CHASSIS

TOMYTEC TM-23 18m C (nominal 18 meter chassis with axle spacing "C" (12 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length




Chassis
Width




Height
In Body




Truck
Centers

86
45' 2"
42' 4"
41' 9"
Axle
Centers

12
6' 4"
5' 11"
5' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Sideframes: FU34, NP120 and NO126.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-24 17m A2 (nominal 17 meter chassis with axle spacing "A" (14 mm))
Features: Total
Axles

4
Power
Axles

2
Traction
Tires

Fly-
wheels

0

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length




Chassis
Width




Height
In Body




Truck
Centers

73.4
38' 6"
36' 1"
35' 8"
Axle
Centers

14
7' 4"
6' 11"
6' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Sideframes: DT21.
Uses self-contained motor truck design at one end.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-25 20m D2 (nominal 20 meter chassis with axle spacing "D" (15.4 mm))
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length




Chassis
Width




Height
In Body




Truck
Centers

90
47' 3"
44' 3"
43' 8"
Axle
Centers

15.4
8' 1"
7' 7"
7' 6"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Sideframes: FS356, FS357 and TS803.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-27 2-unit 3-truck articulated chassis
Features: Total
Axles

6
Power
Axles

2
Traction
Tires

Fly-
wheels

0

Chassis

Black
Side-
frames

Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length




Chassis
Width




Height
In Body




Truck
Centers

80
42' 0"
39' 4"
38' 10"
Axle
Centers

14
7' 4"
6' 11"
6' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Sideframes: ND128D (ends) and ND108A (center).
Uses self-contained motor truck design at one end.
Advertised minimum radius: Mini (140 mm / 5.5 inches).


ELECTRIC LOCOMOTIVE CHASSIS

The TM-ED01 chassis, made to power a Tomytec model of a Japanese small electric locomotive.
TOMYTEC TM-ED01 Small electric locomotive chassis
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

Fly-
wheels

0

Chassis

Black
Side-
frames

Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length




Chassis
Width




Height
In Body




Truck
Centers

38
19' 11"
18' 8"
18' 5"
Axle
Centers

16
8' 5"
7' 10"
7' 9"
Wheel
Diameter

6
38"
35"
35"
Notes: Sideframes: TT54.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

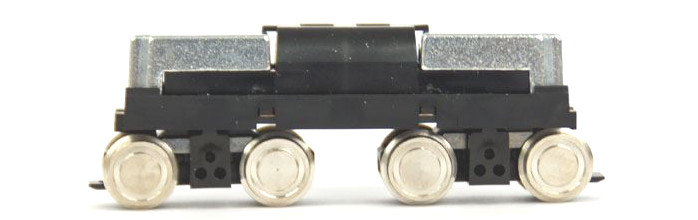

The TM-ED02 chassis features larger wheels, but a shorter distance between truck centers,
than the TM-ED01.
TOMYTEC TM-ED02 Small electric locomotive chassis
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

Fly-
wheels

0

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length




Chassis
Width




Height
In Body




Truck
Centers

35
18' 4"
17' 3"
17' 0"
Axle
Centers

17.2
9' 0"
8' 6"
8' 4"
Wheel
Diameter

8.2
52"
48"
48"
Notes: Sideframes: ED.
Advertised minimum radius: Mini (140 mm / 5.5 inches).


LRT ARTICULATED CHASSIS

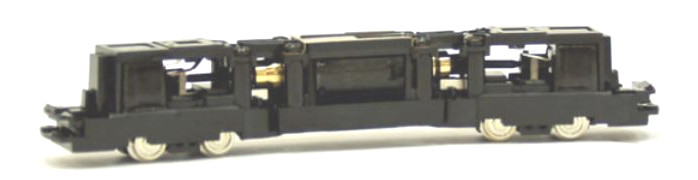

The TM-LRT02 chassis is generally representative of the design of TM-LRT01 through TM-LRT03.
TOMYTEC TM-LRT01 2-unit 2-truck articulated low-floor Light Rail chassis
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

1

Chassis

Black
Side-
frames

None
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

119.2
62' 7"
58' 8"
57' 11"
Chassis
Width

13.9
7' 4"
6' 10"
6' 9"
Height
In Body

17.6
9' 3"
8' 8"
8' 7"
Truck
Centers

61
32' 0"
30' 0"
29' 7"
Axle
Centers

12
6' 4"
5' 11"
5' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Advertised minimum radius: Super Mini (103 mm / 4 inches).

TOMYTEC TM-LRT02 Shorter 3-unit 2-truck articulated low-floor Light Rail chassis
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

None
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

106.3
55' 10"
52' 4"
51' 7"
Chassis
Width

13.9
7' 4"
6' 10"
6' 9"
Height
In Body

16.1
8' 5"
7' 11"
7' 10"
Truck
Centers

62.8
33' 0"
30' 11"
30' 6"
Axle
Centers

12
6' 4"
5' 11"
5' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Advertised minimum radius: Super Mini (103 mm / 4 inches).

TOMYTEC TM-LRT03 Longer 3-unit 2-truck articulated low-floor Light Rail chassis
Features: Total
Axles

4
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Black
Side-
frames

None
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

120.5
63' 3"
59' 4"
58' 6"
Chassis
Width

13.9
7' 4"
6' 10"
6' 9"
Height
In Body

16.1
8' 5"
7' 11"
7' 10"
Truck
Centers

76
39' 11"
37' 5"
36' 11"
Axle
Centers

12
6' 4"
5' 11"
5' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Advertised minimum radius: Super Mini (103 mm / 4 inches).

TOMYTEC TM-LRT04 3-unit 3-truck articulated low-floor Light Rail chassis
Features: Total
Axles

6
Power
Axles

4
Traction
Tires

2
Fly-
wheels

1

Chassis

Black
Side-
frames

None
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

177
92' 11"
87' 1"
81' 11"
Chassis
Width

13.9
7' 4"
6' 10"
6' 9"
Height
In Body

17.5
9' 2"
8' 7"
8' 6"
Truck
Centers

59.1
31' 0"
29' 1"
28' 8"
Axle
Centers

12
6' 4"
5' 11"
5' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-LRT05 5-unit 3-truck articulated low-floor Light Rail chassis
Features: Total
Axles

6
Power
Axles

4
Traction
Tires

2
Fly-
wheels

2

Chassis

Side-
frames

None
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

196.6
103' 2"
96' 9"
95' 6"
Chassis
Width




Height
In Body




Truck
Centers

75.6
39' 8"
37' 2"
36' 9"
Axle
Centers

12
6' 4"
5' 11"
5' 10"
Wheel
Diameter

5.6
35"
33"
33"
Notes: Advertised minimum radius:


TRAM CHASSIS

The thin TM-TR01 has three possible positions for the unpowered truck (right). The TM-TR04 is simply longer, while the TM-TR03 joins to a second articulated floor chassis instead of having variable truck centers, and the TM-TR05 couples to a trailer chassis with a drawbar.
TOMYTEC TM-TR01 Short tram chassis with 3-position adjustable truck centers
Features: Total
Axles

4
Power
Axles

2
Traction
Tires

2
Fly-
wheels

1

Chassis

Black
Side-
frames

Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

64.9
34' 1"
31' 11"
31' 6"
Chassis
Width

13.3
7' 0"
6' 7"
6' 5"
Height
In Body

12.5
6' 7"
6' 2"
6' 1"
Truck
Centers

36
18' 11"
17' 9"
17' 6"
Truck
Centers

38.6
20' 3"
19' 0"
18' 9"
Truck
Centers

41.2
21' 8"
20' 3"
20' 0"
T.C.
Incr.

2.6
1' 4"
1' 3"
1' 3"
Axle
Ctrs.

9.2
4' 10"
4' 6"
4' 6"
Wheel
Dia.

4.2
26"
25"
24"
Notes: Sideframes: KL11, FS78 and one similar to Brill 27G.
Advertised minimum radius: Super Mini (103 mm / 4 inches).

The TM-TR02 features a self-contained motorized truck (or bogie) without flywheel.
This basic motor design is also used on the TM-24 and TM-27.

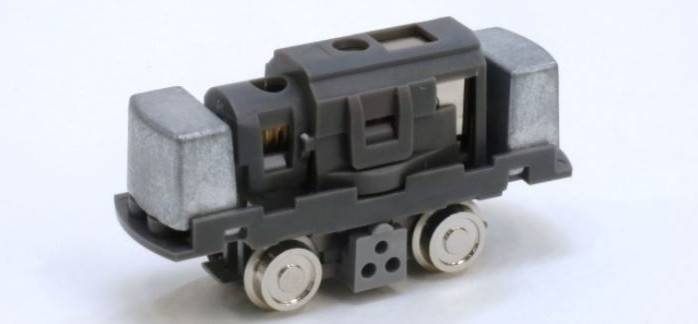

TOMYTEC TM-TR02 2-axle tram chassis
Features: Total
Axles

2
Power
Axles

2
Traction
Tires

0
Fly-
wheels

0

Chassis

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

41.7
21' 11"
20' 6"
20' 3"
Chassis
Width

13
6" 10"
6" 5"
6' 4"
Height
In Body

14
7' 4"
6' 11"
6' 10"
Axle
Centers

16
8' 5"
7' 10"
7' 9"
Wheel
Diameter

6
38"
35"
35"
Notes: Sideframes: Brill 21E (black).
Uses self-contained motor truck design.
Advertised minimum radius: Super Mini (103 mm / 4 inches).

TOMYTEC TM-TR03 2-unit 3-truck articulated tram chassis
Features: Total
Axles

6
Power
Axles

2
Traction
Tires

2
Fly-
wheels

1

Chassis

Gray
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length




Chassis
Width




Height
In Body




Truck
Centers

43.8
23' 0"
21' 7"
21' 3"
Axle
Centers

9.2
4' 10"
4' 6"
4' 6"
Wheel
Diameter

4.2
26"
25"
24"
Notes: Sideframes: OK12, KL13, NS15
Advertised minimum radius: Super Mini (103 mm / 4 inches).

TOMYTEC TM-TR04 Adjustable tram chassis similar to TM-TR01 but longer
Features: Total
Axles

4
Power
Axles

2
Traction
Tires

2
Fly-
wheels

1

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

72.7
38' 2"
35' 9"
35' 4"
Chassis
Width

13.3
7' 0"
6' 7"
6' 5"
Height
In Body

12.7
6' 8"
6' 3"
6' 2"
Truck
Centers

43.8
23' 0"
21' 7"
21' 3"
Truck
Centers

46.4
24' 4"
22' 10"
22' 6"
Truck
Centers

49
25' 9"
24' 1"
23' 10"
T.C.
Incr.

2.6
1' 4"
1' 3"
1' 3"
Axle
Ctrs.

9.2
4' 10"
4' 6"
4' 6"
Wheel
Dia.

4.2
26"
25"
24"
Notes: Sideframes: KS-45L, KS-46L and one similar to Brill 77.
Advertised minimum radius: Super Mini (103 mm / 4 inches).

TOMYTEC TM-TR05 Motor/trailer pair of chassis connected by drawbar
Features: Total
Axles

8
Power
Axles

2
Traction
Tires

2
Fly-
wheels

1

Chassis

Black
Side-
frames

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length




Chassis
Width

13.3
7' 0"
6' 7"
6' 5"
Height
In Body

12.7
6' 8"
6' 3"
6' 2"
Truck
Centers

54.2
28' 5"
26' 8"
26' 4"
Axle
Centers

16
8' 5"
7' 10"
7' 9"
Wheel
Diameter

4.2
26"
25"
24"
Notes: Sideframes: KD204.
Advertised minimum radius: Mini (140 mm / 5.5 inches).

TOMYTEC TM-TR06 3-unit 4-truck articulated tram chassis
Features: Total
Axles

8
Power
Axles

2
Traction
Tires

2
Fly-
wheels

1

Chassis

Gray
Side-
frames

Gray
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length

166
87' 2"
81' 8"
80' 7"
Chassis
Width

13.3
7' 0"
6' 7"
6' 5"
Height
In Body

12.7
6' 8"
6' 3"
6' 2"
Truck
Ctrs. Ends

43.8
23' 0"
21' 7"
21' 3"
Truck
Ctrs. Mid.

46.4
24' 4"
22' 10"
22' 6"
Axle
Centers

9.2
4' 10"
4' 6"
4' 6"
Wheel
Diameter

4.2
26"
25"
24"
Notes: Sideframes: NS15.
Advertised minimum radius: Super Mini (103 mm / 4 inches).

TOMYTEC TM-TR07 2-axle long wheelbase chassis for small locomotives
Features: Total
Axles

2
Power
Axles

2
Traction
Tires

Fly-
wheels

0

Chassis

Black
Dimensions:

Actual (mm)
1:160 (ft' in")
1:150 (ft' in")
1:148 (ft' in")
Chassis
Length




Chassis
Width




Height
In Body




Axle
Centers

28
14' 8"
13' 9"
13' 7"
Wheel
Diameter

6
38"
35"
35"
Notes: Sideframes: Black.
Advertised minimum radius: Mini (140 mm / 5.5 inches).


TOMYTEC SIDEFRAME SETS
Name Notes
TD-01 Brill 27MCB, Baldwin MCB curved and straight equalizer beams; 14 mm ("A") axle centers; gray.
TD-02 DT10, DT11 and DT12; 16 mm ("B") axle centers; gray.

OTHER BRANDS

The following other brands are listed only for convenience. I tend to focus on Tomytec and not update these.

KATO
11-105, 11-106 and 11-107 are to power Bandai's B-Train Shorty trains; they differ only in truck sideframes. Wheel diameter is 5.1 mm.

Name
Chassis
Length
Chassis
Width
Truck
Centers
Axle
Centers
Total
Axles
Power
Axles
Pickup
Wheels
Fly-
wheel

Notes
11-101 (20m)     4
11-102 (20m)  95  44 No
11-103 (Pocket Line)5418--28 222+2Nofor passenger car
11-104 (Pocket Line)5418--28 222+2Nofor Seibu steeplecab
11-105 5815.33211 422+1+2+2NoFor Bandai
B-train Shorty
11-106 5815.33211 422+1+2+2NoB-train Express
sideframes
11-107 5815.33211 422+1+2+2NoCommuter 2
sideframes

BACHMANN
The similar Bachmann Brill and PCC trolley chassis are oversize, toy-like and of inferior design. I list them because they are common and inexpensive. Their early white axle gears usually split; use only the later improved chassis with black axle gears. Their wheel diameter is 5.6 mm, and Bachmann started blackening the wheels by 2010.
The more recent Bachmann Peter Witt chassis is much different - a smaller, more sophisticated design. Factory-equipped with DCC, it can operate under DCC control or analog DC.)

Name
Chassis
Length
Chassis
Width
Truck
Centers
Axle
Centers
Total
Axles
Power
Axles
Pickup
Wheels
Fly-
wheel

Notes
Brill Trolley 79163712.5 442+2+2+2NoSplit chassis
PCC Streetcar 90164612.5 442+2+2+2NoSplit chassis

PRO-HOBBY
Made for a Pro-Hobby 4-sheel switching locomotive and also sold separately.

Name
Chassis
Length
Chassis
Width
Truck
Centers
Axle
Centers
Total
Axles
Power
Axles
Pickup
Wheels
Fly-
wheel

Notes
Ca-ND-12418.5--14 21 No20mm high

GREENMAX
Most are made to add power to specific GreenMax cars and kits.
Renumbered 3-digit items are listed below under their later 4-digit numbers.

Name
Chassis
Length
Chassis
Width
Truck
Centers
Axle
Centers
Total
Axles
Power
Axles
Pickup
Wheels
Fly-
wheel

Notes
555 DT10     4
561 DT24     44
564     4   20m; Tobu Minden
566      4   Pioneer
567 DT2412617 14 44
568 TS301     4
574 TS     4   Tokyu
578 KH-55     4
579 TS     4   Tokyu
591      4   old rail motor
592      4   Brill
593 (M+T)     4   new performance
5501 (551) DT13127 9013 44
5502 (552) DT16126 9117.5 44  20m; Tobu
5504 (556) DT10125 9417 44
5509 (563) DT21125 9014.5 44  20m; Seibu
5510     44
5511 (569) DT33125 9014.5 44  20m; JR Tokai
5513 TS     4   Keio
5515 DT50     4   20m; JR Tokai
5516 (576) FS     4   Odakyu
5517 (577)126 9015 44  H Type Hankyu Minden
5521 (585) DT22     44
5525 SS143     4
5526 TS1004     4
5528 FS372     44  20m
5601 (554)     4   18m; Kyoto
5604 (565)     4   Type OK
5608 (570)113 8014.5 44  H Type Hankyu Minden
5609 (573) TS     4   18m; Tokyu Keio
5611 TH     4
5612 (583) TS804113158513 44  18m
5615 FS547     4   18m
5617 DT11     4   17m
Back to Tomix / EasyTrolley main page
