Jubilee Line Extension - Photos

A look at the Jubilee Line Extension, which was opened throughout to connect with the original line on 20th December 1999.

Contents

Introduction - Platform Screen Doors - Canary Wharf - Southwark - Stratford - Waterloo - Westminster - Canning Town Tunnel Entrance


Introduction

The completed extension of the Jubilee Line was opened for passengers on 20th December 1999.  The whole project cost 3.2 billion or US$ 5.1 billion.  That's 291 million a mile for 11 miles.  It was opened two years late and it did not meet all its technical requirements, since it was intended to include a transmission based signalling system capable of running 36 trains per hour.   As opened, the line has traditional LU signalling with trainstops, able to support only a 24 tph service.  In any case, the line has some fine examples of modern metro station architecture and, if you get the opportunity, you should go and see it.  Whether you get to see it or not, here are some photos of the most interesting sites.


Platform Screen Doors

A new feature for London Underground is the provision of platform screen doors  - sometimes called platform edge doors or PEDs.  There was considerable discussion over whether these should be provided, since their true value is in extreme climates where they can reduce station energy costs.  In London perhaps their value is more in preventing suicides - London has 100-150 a year - and in showing the public that they have a modern railway.  Certainly, at over 1 million a platform face, they don't come cheap.   On the Jubilee Line, they are interlocked with the train door operation so that they cannot open unless the train is berthed within a +/- 250 mm margin.  It takes 3 seconds to align and open the doors.  Here is an example of what they look like.

PSDs JLE.jpg (31665 bytes)Fig. 1:  Platform screen doors or, as they are sometimes called, platform edge door are provided on the new Jubilee Line extension stations.   The operation of the doors is synchronised with the operation of the train doors.   As the trains are manually driven, the driver has to align the train to within 250 mm of the correct point for the doors to be able to open.  Click to enlarge.

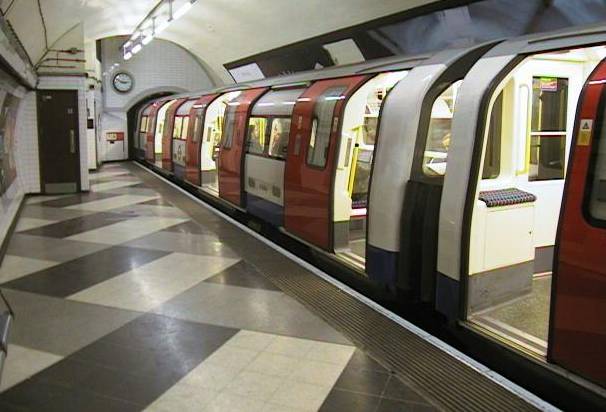

95 TS Waterloo doors open.JPG (38040 bytes)Fig. 2:  A train without platform screen doors

Click to enlarge.

To the Top of this Page


Canary Wharf

Canary Wharf (when it was part of the London docks, it was called Cannery Wharf) station has been built in a huge cut and cover cavern with entrances at the east and west ends.  The dug dimensions were 280 m (918 ft) long, 35 m (115 ft) wide and 26 m (85 ft) deep.  There is a concourse level, where the ticket offices and faregates are located and a platform level below.  Each level is linked by escalators. The following pictures show the principal features.  Click on the image for a full size view.

Canary Wharf Ext.jpg (43585 bytes)Fig. 3:  West end station entrance.  There are six escalators to the concourse.

Click to enlarge and see description.



Can Wharf Concourse.jpg (49494 bytes)Fig. 4:  Concourse level looking towards the west end escalators.

Click to enlarge and see description.



Canary Wharf Gateline.jpg (44358 bytes)Fig. 5:  The line of faregates across the concourse.

Click to enlarge and see description.





Canary Wharf plat.jpg (35701 bytes)Fig. 6:  Platform level - wide and lots of room.

Click to enlarge.



To the Top of this Page


Southwark

This station is so close to Waterloo, one might ask why it was built at all but it is an interesting station architecturally as the following pictures show.   Click on the image for a full size view.

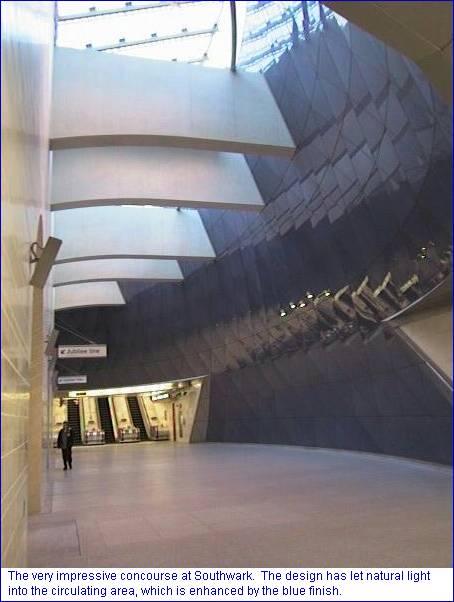

Lower Concourse Southwark.jpg (37895 bytes)Fig. 7:  Lower concourse.

Click to enlarge and see description.

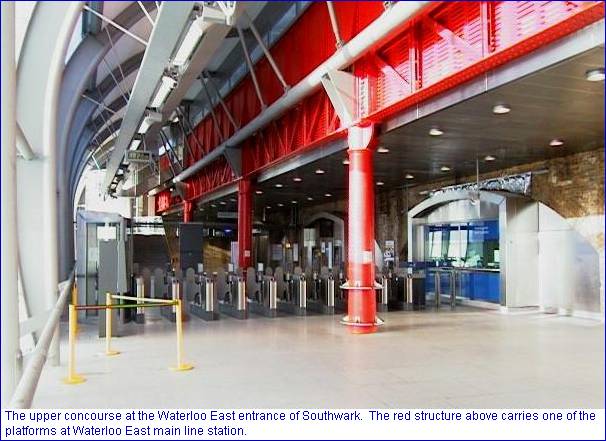

Upper concourse Southwark.jpg (54066 bytes)Fig. 8:  Upper concourse.

Click to enlarge and see description.



TO Southwark.jpg (49753 bytes)Fig. 9:  Ticket Office.

Click to enlarge and see description.



To the Top of this Page


Stratford

This is another complex station but it is all at surface level.  Two separate main line stations are built at different levels while the new Jubilee Line station has been built adjacent to one at the same level.  Here are some views of the Jubilee Line area.

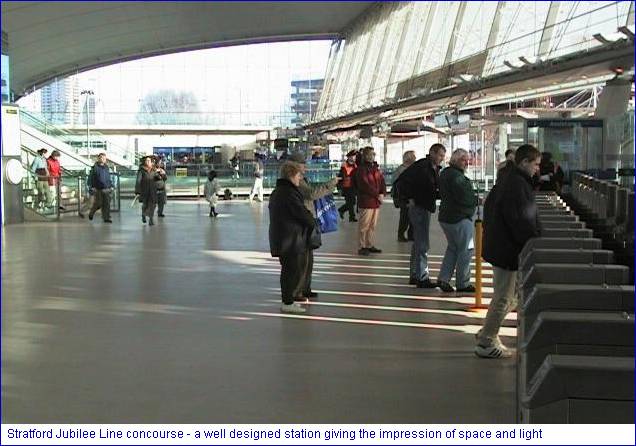

Stratford JLE Concourse.jpg (51353 bytes)Fig. 10:  Station concourse with a level link to the Silverlink line station in the background.

Click to enlarge and see description.

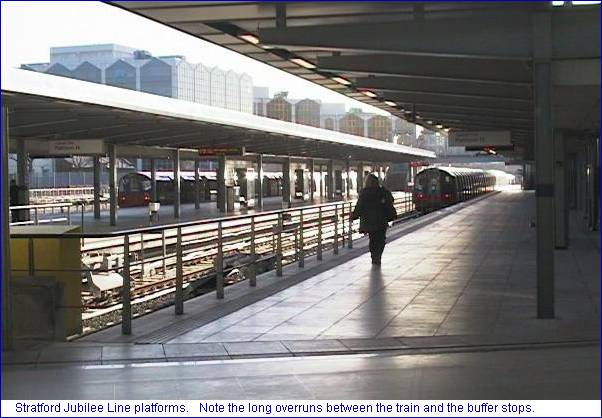

Stratford JLE Platforms.jpg (48388 bytes)Fig. 11:  The Jubilee Line platforms.

Click to enlarge and see description.

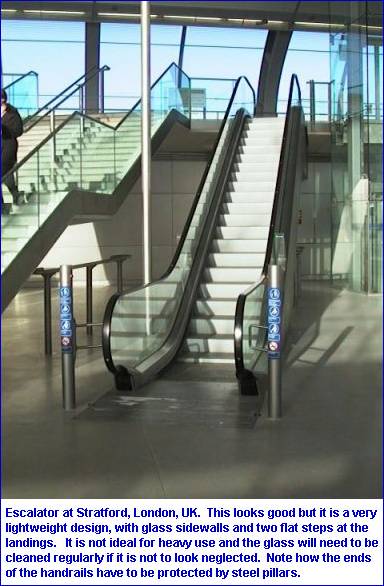

Escalator Stratford.jpg (49833 bytes)Fig. 12:  A very lightweight escalator at Stratford.

Click to enlarge and see description.





To the Top of this Page


Waterloo

The station here has had to be incorporated into the existing complex with the main line station, the Eurostar station, the Bakerloo and Northern lines and the Waterloo and City line.  A special moving walkway has been provided to reduce the transfer time between the Jubilee Line and other links.

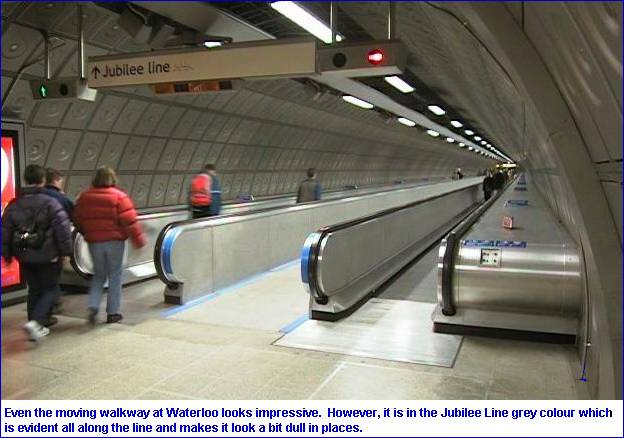

Waterloo walkway.jpg (45883 bytes)Fig. 13:  Moving walkway at Waterloo provided to give transfer links.

Click to enlarge and see description.

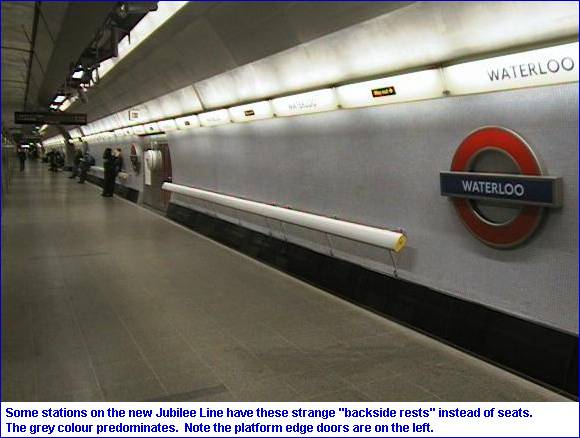

Waterloo JLE bum rest.jpg (38345 bytes)Fig. 14:  At platform level showing the strange "backside rest" seating system.

Click to enlarge and see description.

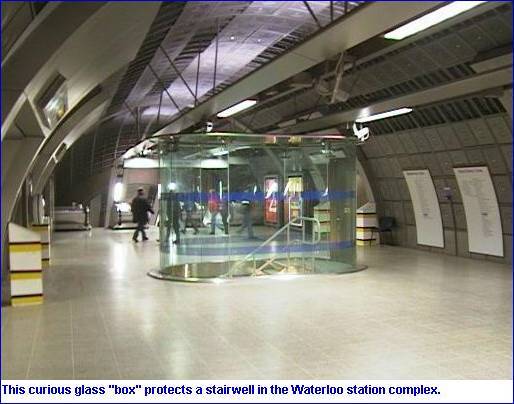

Waterloo Glass Box.jpg (37277 bytes)Fig. 15:  This curious protective glass structure has been provided at one location.

Click to enlarge and see description.



To the Top of this Page


Westminster

Westminster station did not open until 23rd December 1999.  Its construction had caused some difficulties because it was close to Big Ben and the Houses of Parliament on side side and close to the River Thames on another side.  The platforms are on different levels, with the District Line just below street level, then the Jubilee Line eastbound tunnel and, below that, the Jubilee Line westbound tunnel.   A large 37 m (120 ft) deep cavern was built for the escalators connecting these different levels.  Special, circular transverse support tubes have been installed and they have been incorporated into the design.  Click on the image for a full size view.

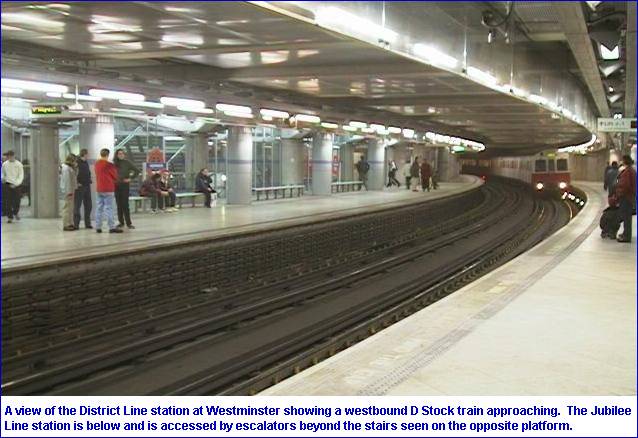

Westminster DR.jpg (54709 bytes)Fig. 16:  Westminster Station at District Line level.

Click to enlarge and see description.



Westminster Interchange Escalators-1.jpg (41939 bytes)Fig. 17:  Escalator shaft from the top.

Click to enlarge and see description.

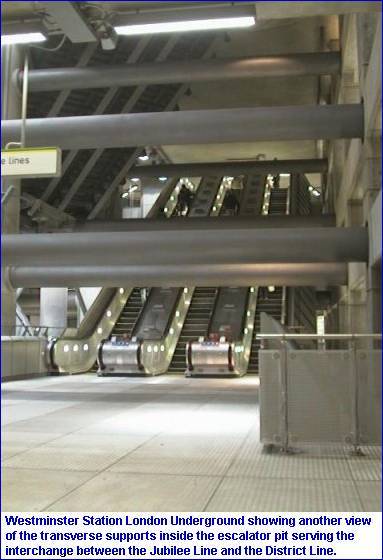

Westminster Interchange Escalators-2.jpg (36902 bytes)Fig. 18:  Escalator shaft from the bottom.

Click to enlarge and see description.



To the Top of this Page


Canning Town Tunnel Entrance

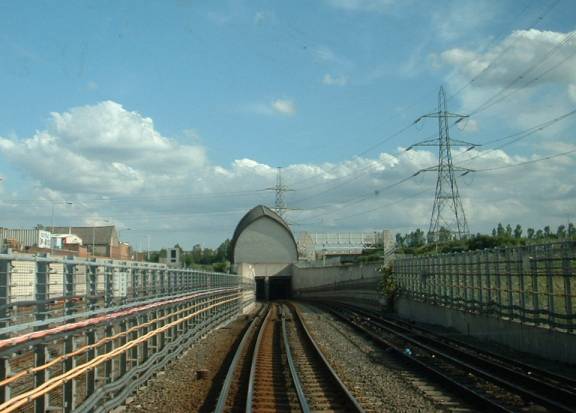

Canning Town westbound.JPG (31912 bytes)Fig. 19:  The approach to the tunnel mouth of the Jubilee Line at Canning Town.  Photo by "Jubilee Pat"

Click to enlarge.

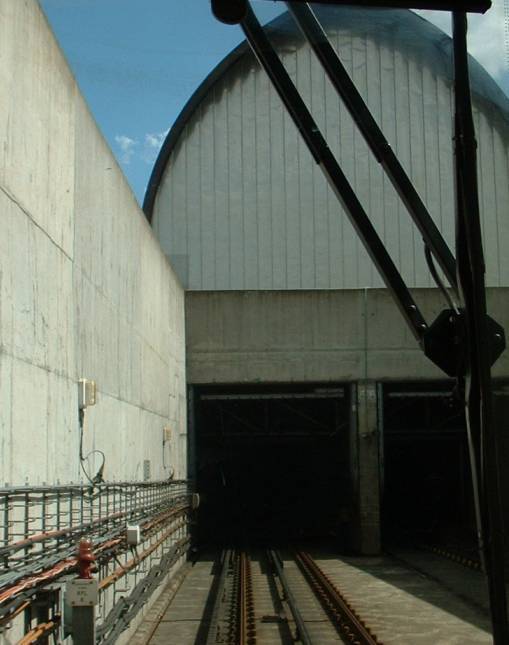

Canning town westbound closeup.jpg (37213 bytes)Fig. 20:  Close up of the tunnel mouth at Canning Town.  Photo by "Jubilee Pat"

Click to enlarge.





The approach to the tunnel mouth at Canning Town (Fig. 19) as photographed from the front of a westbound train by "Jubilee Pat".  Once you go in here, there is tunnel all the way to Finchley Road.   Note how the tunnel entrance is made to look like it is part of the Thames Barrier.  This appears as if it is part of the London flood defences because the entrance to the tunnel incorporates flood gates.  You can make out the horizontal line just under the mouth of the tunnel (Fig. 20) which has the floodgate machinery.  If you look at the close-up on the left hand side of the track in Fig. 20 you can see the red light which flashes if the gates are about to be lowered.  While not incorporating a signal it is numbered  RFL8.  I think this arrangement is unique.
