Steam Improvements of the Last 30 Years

updated 03/01/2000

Snowdon Mountain Railway 0-4-2RT #4

all photos courtesy of Nigel Day

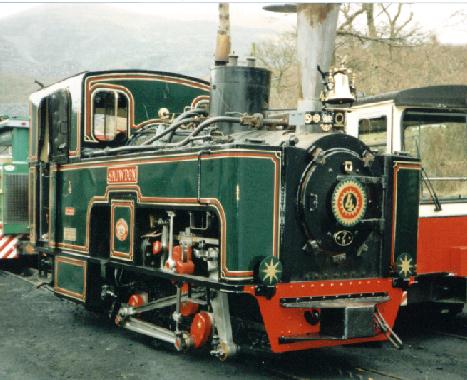

This is one of several rack engines on this railway modified by Nigel Day, a former associate of Shaun McMahon's. These photos show the Kylpor exhaust stack, as well as instrumentation fitted to the locomotive to allow the increased performance of this system to be properly evaluated..

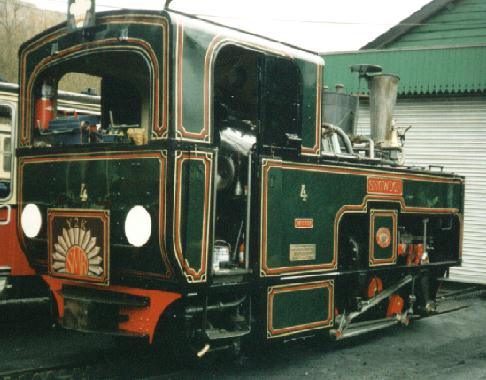

Rear view of Snowdon Mountain Railway No. 4

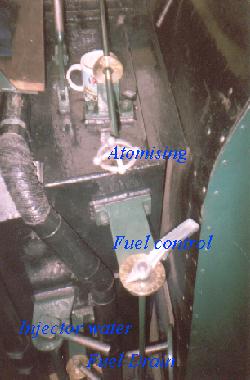

Labeled photograph of the firing controls on No. 4

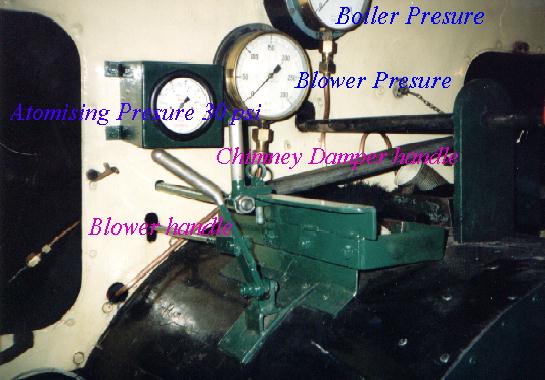

Labeled photo of gauges on No. 4

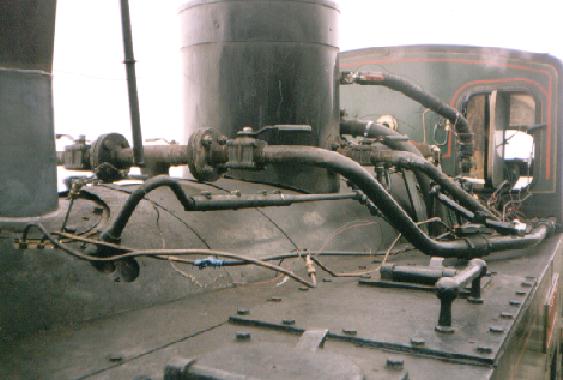

Outside view of No. 4 showing test instrumentation lines
