You can click on any of these pictures to expand them.
It may be worthwhile to open the plan of the line (use your 'Back' button to return here).

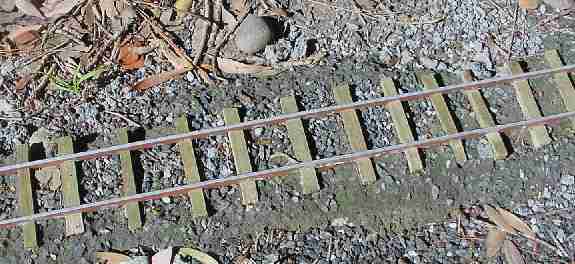

(1) detail of aluminium bar rail

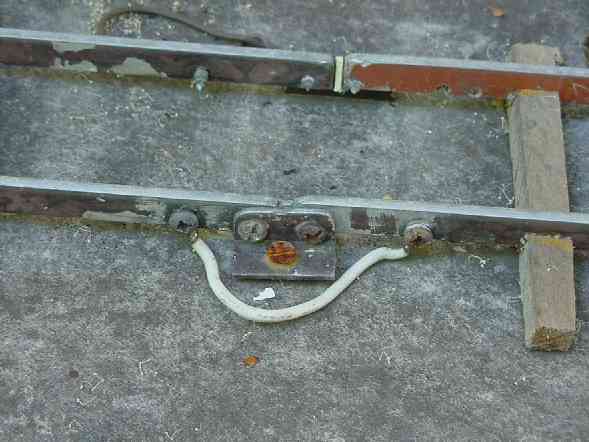

(2) Detail of rail joiners

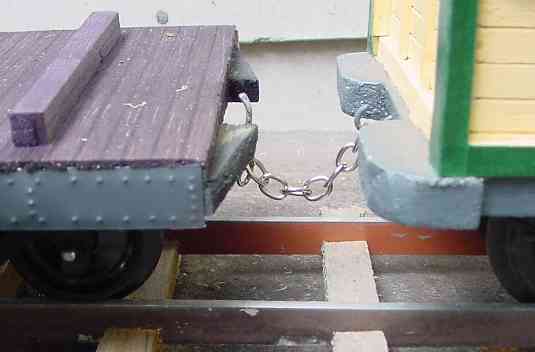

(3) Chain couplings

(4) Control boxes are mounted in 'Tuppawara' type boxes

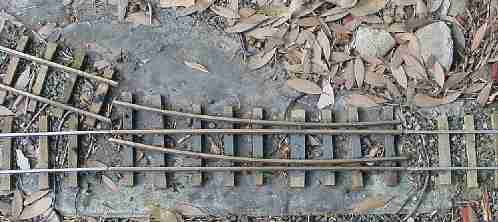

(5) My design of swivelling turnout has no frog and so no electrical problems and no close tolerances.

(6) How sleepers are cut for Aluminium rails.
