Hanging Yard Construction
Installation of the Board
The following photos illustrate the design and construction
of the boards and their subsequent installation during the Hanging
Yard's construction. For detailed construction schematics, please
refer to the JLS
Railroad Construction Plans Archive...
click any smaller picture to
view a larger picture

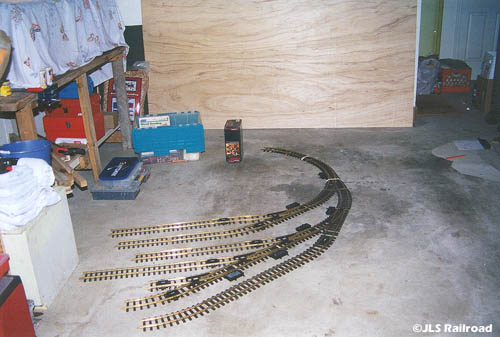

The entire switch block of the Hanging Yard ready to
be fit onto a 4' x 8' piece of ply.

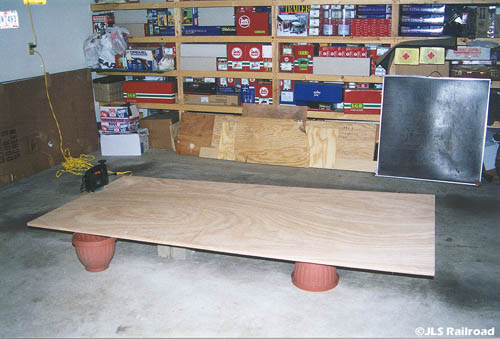

The starting material

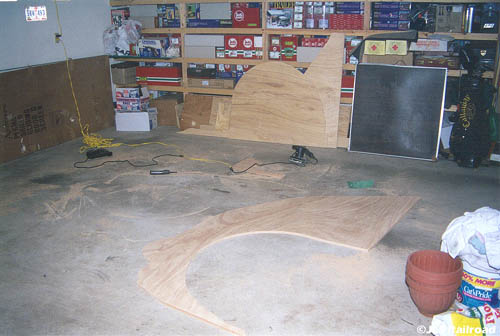

After all the track has been laid out on the plywood
board and measurements taken, the board was intricately cut out
with the use of a jig saw.

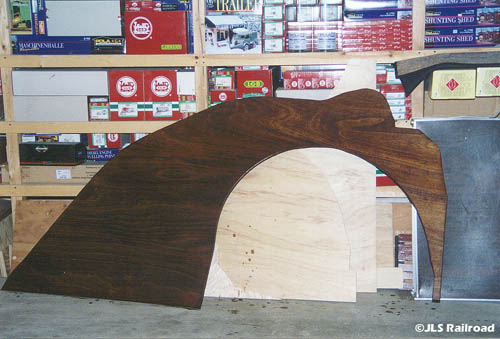

The stained and finished board, the first of two that
will comprise the Hanging Yard.

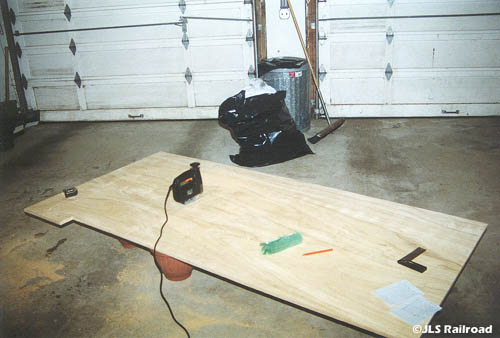

The untouched board for the second half of the Hanging
Yard.

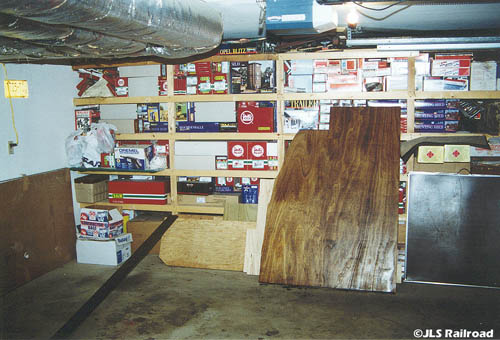

The completed second half.

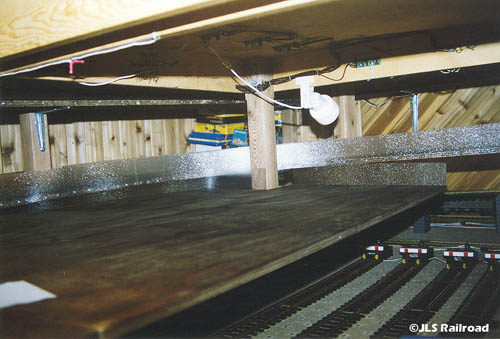

At this point, all boards have been installed and mounted.
