Club Corners
OCMR has 8 corners. Four of them are hex-shaped corners that fit in a 4 by 4 space. Four of them are made from two 2 by 4 modules that connect together to make an L-shaped 4 by 6 corner. Pictures of the 4 x 4 corners are shown here below: All corners maintain a minimum 36 inch radius on the mainlines, and permit a small easement at the start of the turn at each end.This is the Orange Grove corner. It reflects a major aspect of our heritage here in California's Orange County.
More information on Route 66 can be found on the World Wide
Web.
Click here for
one of the Route 66 sites in the Mother Road web ring.<
Engine Facility

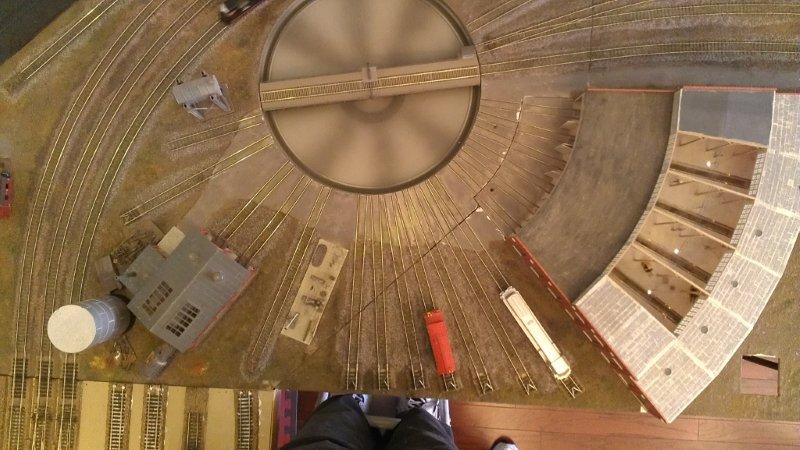

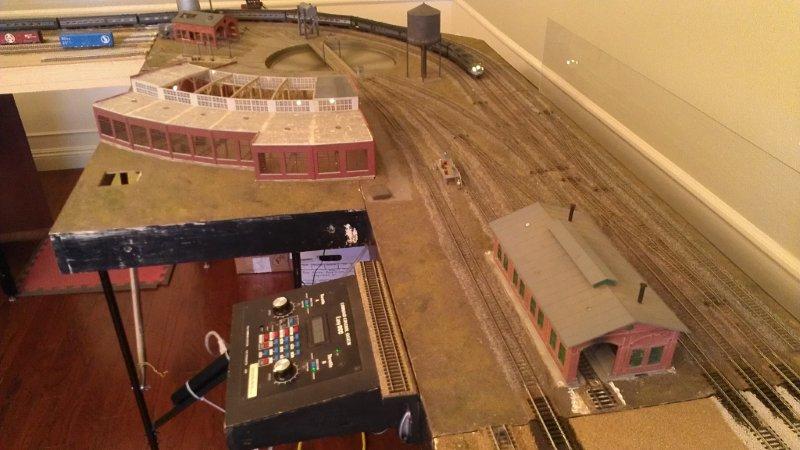

The engine facility consists of a 2' by 4' module and the Engine Facility Corner. This area handles engine service for a small number of diesel and steam locomotives, and provide an opportunity for hostling engines during our club shows. It has an operating turntable and roundhouse. The bottom photo also shows part of our DCC System.

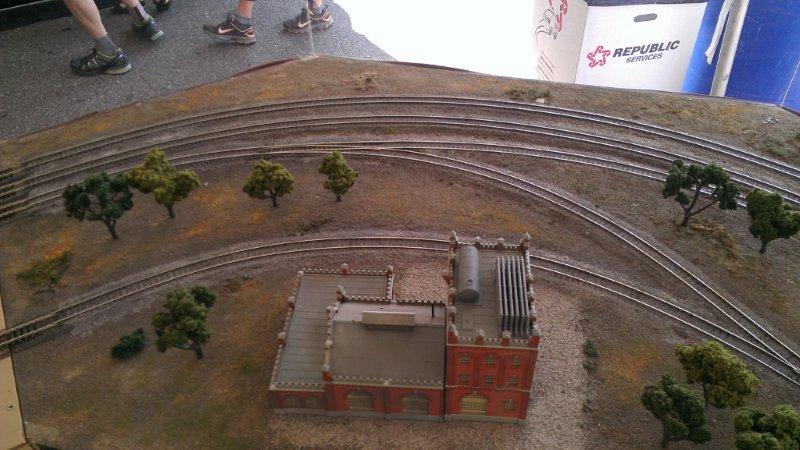

This Module, being less specific, is often just called the "Fourth
Corner". It supplies continuity of the 18" track around the corner,
and provides a transition from the OAT on the right to the 18" track on
the left. When possible, this module helps extend our capabilities for
branchline switching by interconnecting these tracks around a corner.
