SFRTA single level DMU TRCX 702

South Florida RTA DMU TRCX 702

In new paint for Florida Tri-Rail. Fort Lupton, CO. May, 2005. Photo by Jody Moore.

Type of Car: Diesel Multiple Unit (DMU) Aero Commuter Car
Commuter Coach: 16
Business: 16
Table top : 36
Length: 85 feet over couplers
Height: 14 feet, 10.75 inches
Weight: 87.5 tons (175,000 pounds)
Motors (2) Detroit Diesel Series 60 engines
Horsepower 600 per motor @ 1,800 to 2,100 rpm (1,200 total Hp)
Transmission Voith T212 BRE Hydrodynamic
Generator Diesel, Stadco 175kW 480v 3 phase
Cab Style Aero
Ultradome Glass Option? Yes
Kitchen/Galley Yes
Restrooms 1 (ADA accessible)
ADA Accessible? Yes
Built: 2002
Ran as: CRMX 2002, renumbered TRCX 702 in June, 2005.

Florida Dept. of Transportation's first set of DMU vehicles is bound to be historic. The first car, purchased in early April, 2004, was already steeped in history when the ink dried on the contract.

In 2002, Colorado Railcar unveiled its revolutionary DMU (Diesel Multiple Unit) demonstrator CRMX 2002. This was the first commuter vehicle to meet the stringent FRA 49 CFR Part 238 compression load requirements. In Feb., 2002, the frame of the prototype survived an 800,000 pound load test to meet that standard. This self propeled car is tougher than the average freight locomotive!

DMU was envisioned as an affordable, practical extension of the manufacturer's normal business. One look at the demonstrator unit reveals its obvious development from the single level dome. The otional wraparound windows that are a trademark of the ultradome design are found on the demonstrator, as well as the aero nose option. The interior was layed out to show several different configurations.

The 2002 spent several years demonstrating the DMU concept to current and potential future commuter operators in most major metropolitan areas in the US. The car also made trips to Vancouver, BC, and Alaska. It is presently (as of early 2004) in revenue service on Florida Tri-Rail, having been purchased by FL-DOT for a test program that will include the 2002, the first double decker DMU to be built, and a double decker trailer.

In 2005, the DMU prototype was remodeled and repainted forits new owner. Modifications included the removal of the service bar in the back half of the car to make way for more ADA tiedowns, and the addition of a window in the restroom.

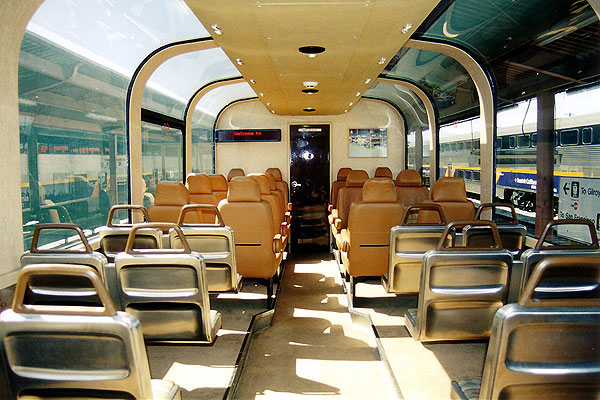

DMU Interior. Photo by Richard Silagi.

Click here to take a photo tour of the inside of the DMU demonstrator, which I caught up with at Portland Union Station in the summer of 2003.
