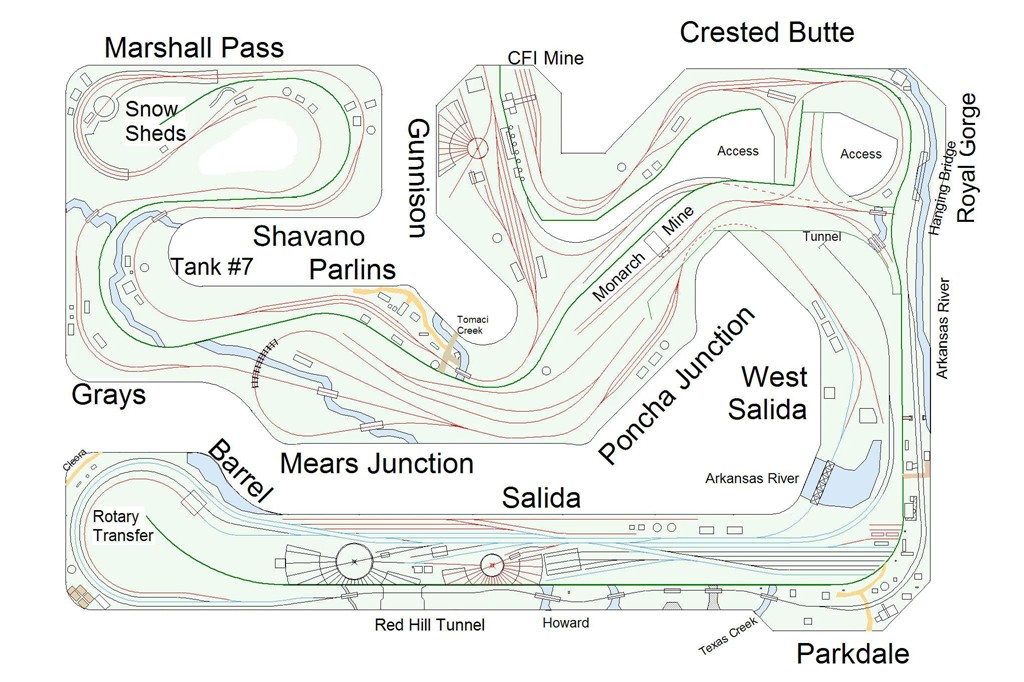

The D&RGW Scenic Line Layout Plan - Dual Gauge -        - Narrow Gauge -        - Standard Gauge -        - Backdrop -

STATIONS
1st DIVISION 2nd DISTRICT	2nd DIVISION 1st DISTRICT	2nd DIVISION 2nd DISTRICT	3rd DIVISION 1st DISTRICT	3rd DIVISION CRESTED BUTTE BRANCH	3rd DIVISION MONARCH BRANCH
PUEBLO GORGE PARKDALE HOWARD RED HILL TUNNEL	CLEORA BARREL SALIDA TENNESSEE PASS	HELIX GRAND JUNCTION	SALIDA WEST SALIDA PONCHA JUNCTION MEARS JUNCTION GRAYS MARSHALL PASS SHAWANO TANK No. 7 PARLIN GUNNISON	GUNNISON JACK'S CABIN CRESTED BUTTE	SALIDA PONCHA JUNCTION MAYSVILLE SILVER CREEK MONARCH

LAYOUT SPECIFICATIONS
Layout Name:	D&RGW Scenic Line	Scale:	HO and HOn3	Size:	21' x 32'
Theme:	1926-1955	Locale:	Fremont & Gunnison Counties, Colorado	Layout Style:	100% Walk about
Layout Height:	40" to 60"	Benchwork:	1" x 6" open frame	Mainline:	NG: 130' SG: 50'
Double Track Mainline:	SG: 10' DG: 40'	Branch Mainlines:	NG: 100'	Roadbed:	Luann plywood and cork
Sub-Roadbed:	2 layers 5/8" plywood	Handlaid Track:	NG: Code 55 & 70 SG: Code 70 DG: Code 70	Flextrack:	NG: Code 70 SG helix: Code 70 SG staging: Code 83
Minimum Turnout:	NG: No. 4 SG: No. 6 DG: No. 6	Minimum Radius:	NG: 18" SG: 30" DG: 30"	Maximum Grade:	NG: 4% SG: 2% DG: 1%
Scenery:	Geodesic Foam Carved foam Hydrocal/plaster	Backdrop:	Freestanding 1/4" Masonite, drywalled on backside, latex painted	Control:	Digitrax DCC

---

---

---
