Click on title for desired module.

Introduction

This page provides details of the NTRAK modules built by Joel McCurry.

Legend

All descriptions refer to looking from the front of the module.
CCW = Counter-clockwise; CW = Clockwise
Crossovers indicate travel from left to right.
Div, Divn = Division
Mountain Division = Green Track
Mtn = Mountain

Track Spacer

Module: High Bridge (4' Bridge Module)

Owner Name:

Joel McCurry

Builder Name:

David Thompson, David Koss, Joel McCurry

Date Built:

1998

Status:

Complete

Module Type:

Bridge module with separate sections for RYB tracks and Mountain Division

Length:

4'

Width:

Special. Two separate sections.

Passing Sidings:

Orange

Other Tracks:

Orange + Mountain Division

Industrial Spurs:

None

Yard Tracks:

None

Engine Service:

None

Crossovers:

Orange-to-Red counterclockwise

Electrical:

Track Buses:

12-Gauge Wire with Powerpole Connectors

12VDC Bus (White):

12-Gauge Wire with Powerpole Connectors

Accessory Bus (Brown):

12-Gauge Wire with Powerpole Connectors

LocoNet Bus:

Installed

Packaging for Transport

Plains and mountain separate

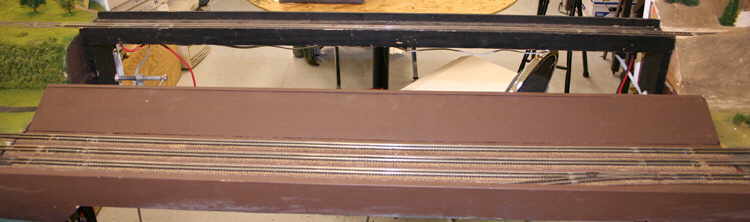

Module Photograph

4Ft Bridge Photo

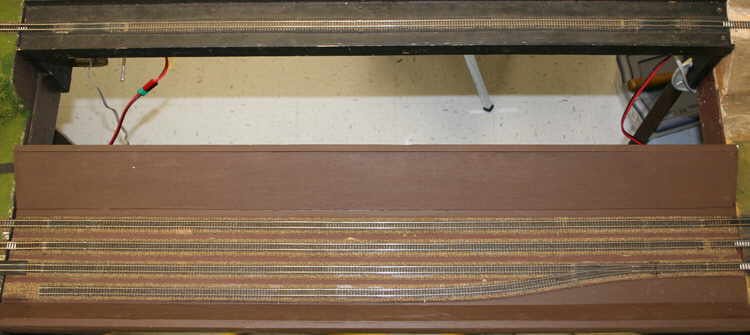

Track Plan

4Ft Bridge Track Plan

Description
