This is a complete scale model of the TGV Duplex high speed train, a bi-level trainset introduced in 1996 to serve the heavy traffic on the Paris-Lyon high speed line. Select the links below to view and print the parts sheets, making sure to read the corresponding instruction sheet before starting. Each vehicle will take you about 45 minutes to 1 hour to build. I wish to thank André Sintzoff and Tanguy Couvrat-Desvergnes for their help in getting the details right.

Parts Sheet Assembly Instructions Relative Difficulty

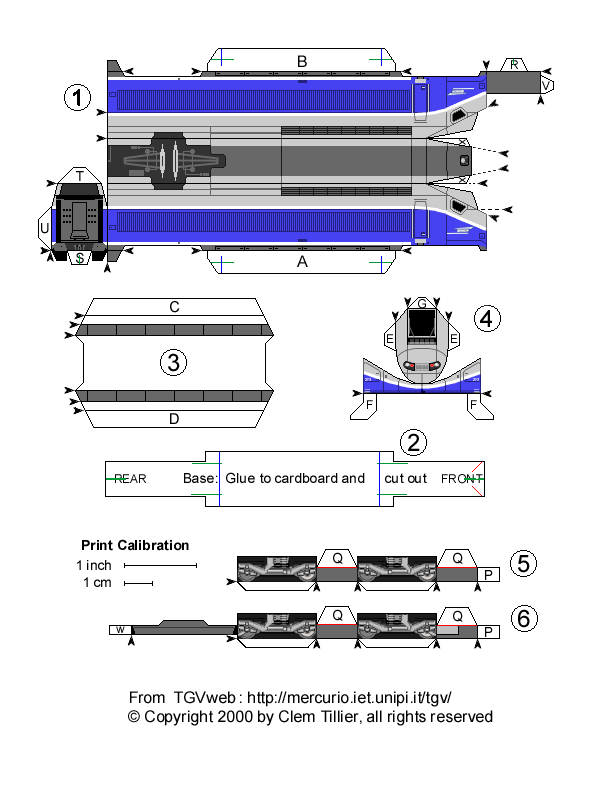

Duplex Power Car Instructions More Difficult

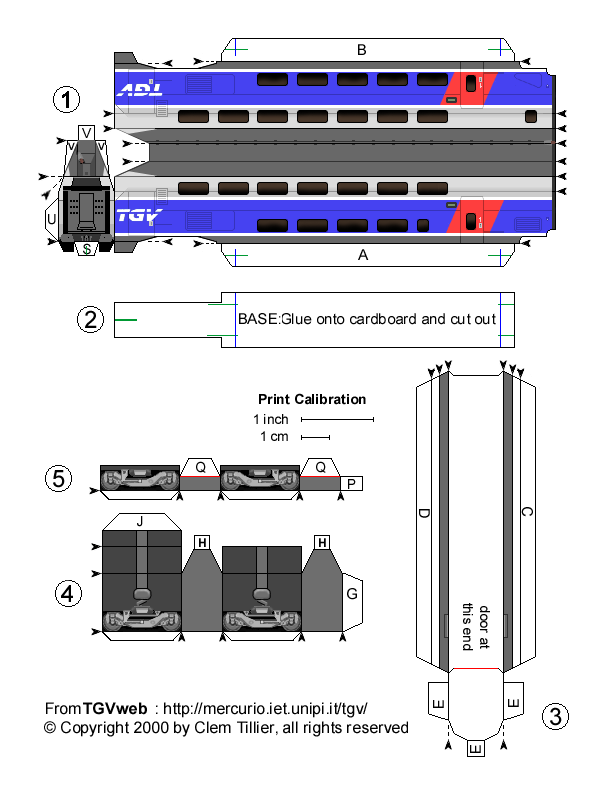

R1 1st Class End Trailer Instructions Difficult

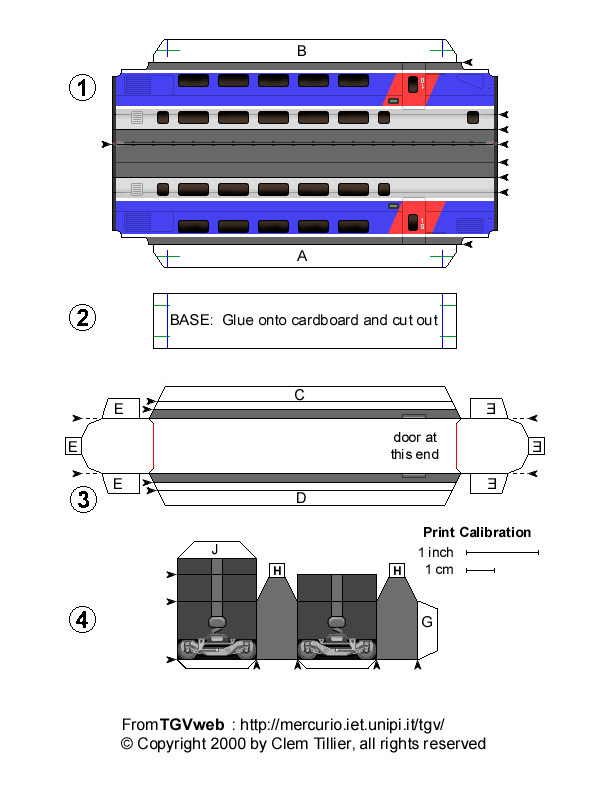

R2, R3 1st Class Intermediate Trailers Instructions Intermediate

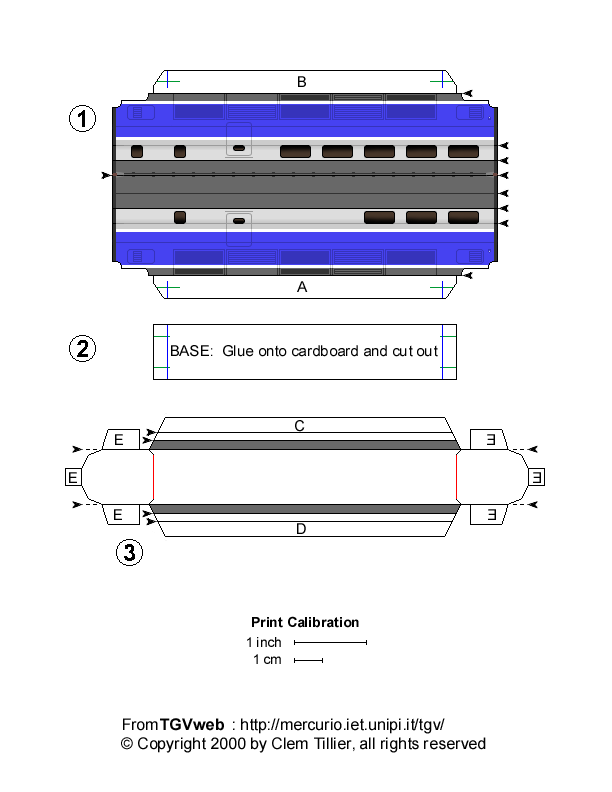

R4 Bar Trailer Instructions Easy

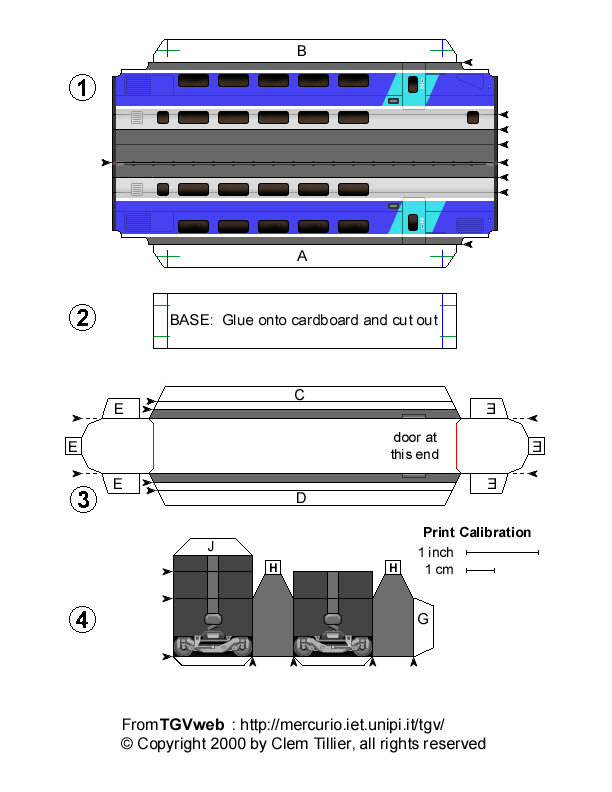

R5, R6, R7 2nd Class Intermediate Trailer Instructions Intermediate
R8 2nd Class End Trailer Instructions Difficult

Trainset assembly

Put your trainset together in the following order: 1 Power Car, trailers R1 to R8 oriented such that the roof power cable runs continuously along the length of the trainset, and finally the second Power Car. See TGV trainset formations for more detail.
