JLS Railroad Helix Structures Construction 3, The Tank Farm

JLS Railroad Helix Structures Construction
Page 3
The Tank Farm

These are pictures chronicling the construction of all structures on the Helix and H-yard.

click any smaller picture to view a larger picture

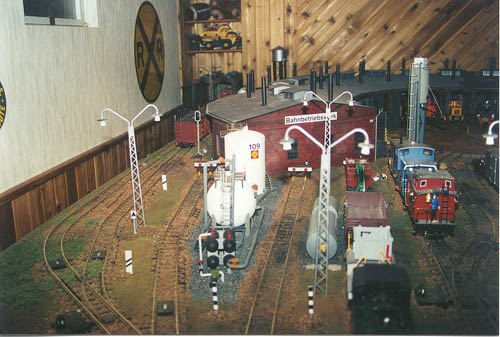

Here is an overview of the Tank Farm. This is the final arrangment decided on by the members.

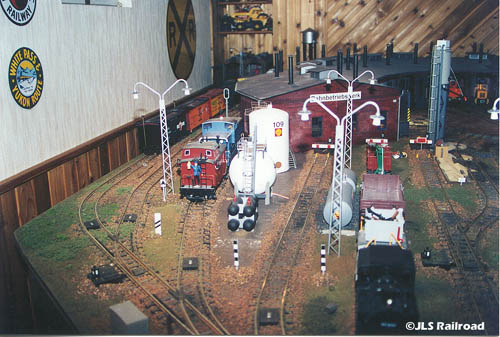

A closeup of the layout of the tanks

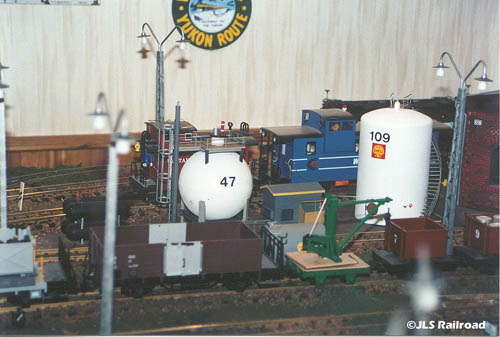

A side shot

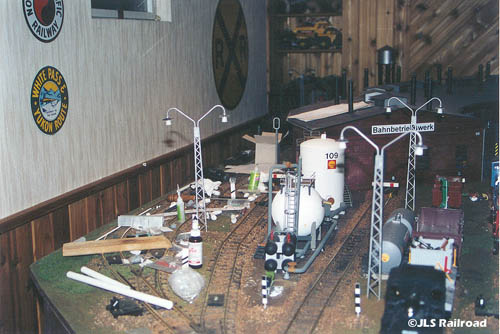

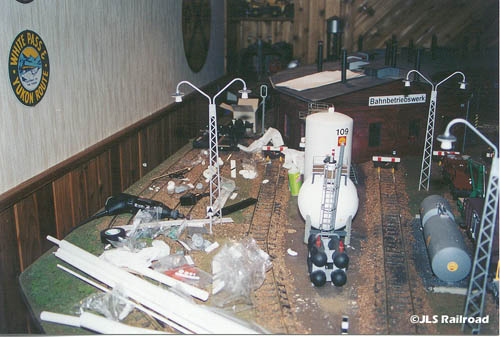

Here, constriction has begun on the piping

Our Chief of the Painting Committee, Al Rapp, painting some piping for the Tank Farm

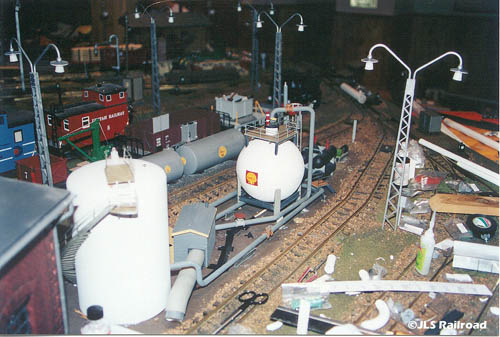

Here you can see the piping starting to take shape

The completed piping layout

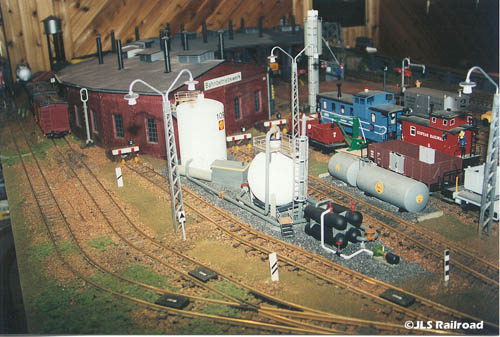

All finished! Notice the scenery.

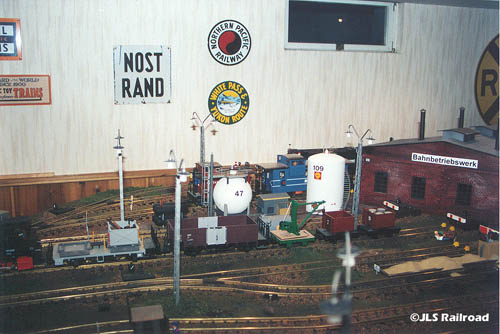

Here is the final shot of the Tank Farm. The scenery has ben completed and the decal added. The total construction time was about 1 month, from start to finish.
